Ovations LLC - BAE Systems Electronic Systems - 2024 President's Address
Client:
Ovations LLC
End User:
BAE Systems Electronic Systems
Project:
2024 President's Address
Date:
3/5/2024
Location:
BAE Systems - Fort Wayne, IN
Services:

Complete Turn-key Production Services including:

  • Design / CAD Drafting
  • Production Management and Technical Direction
  • LED Video Wall
  • Graphics / Video Playback
  • Video Production / Streaming
  • Audio Reinforcement
  • Lighting
  • Scenic / Drape
  • Rigging
  • Stage
  • Production Staff

Overview

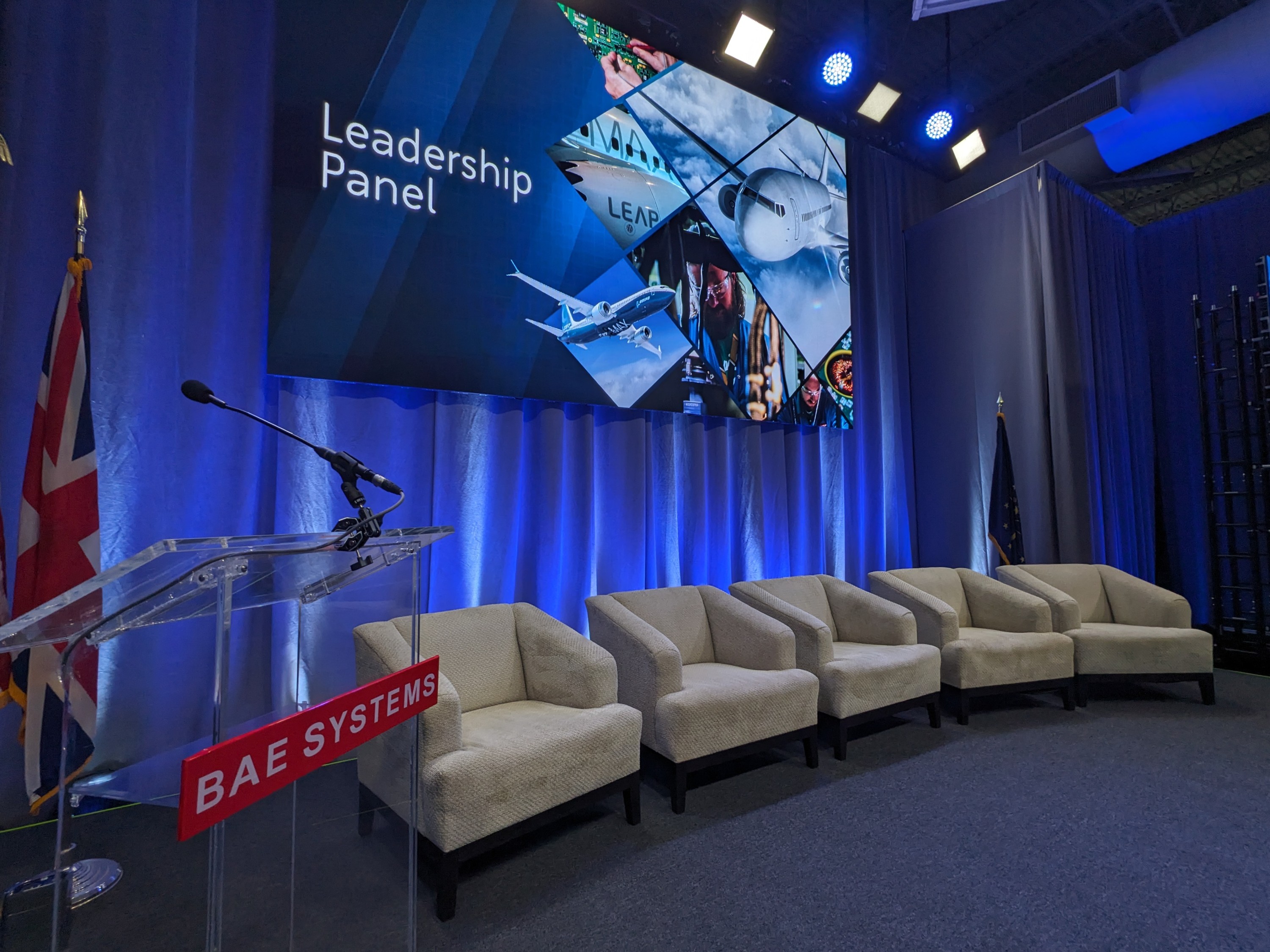

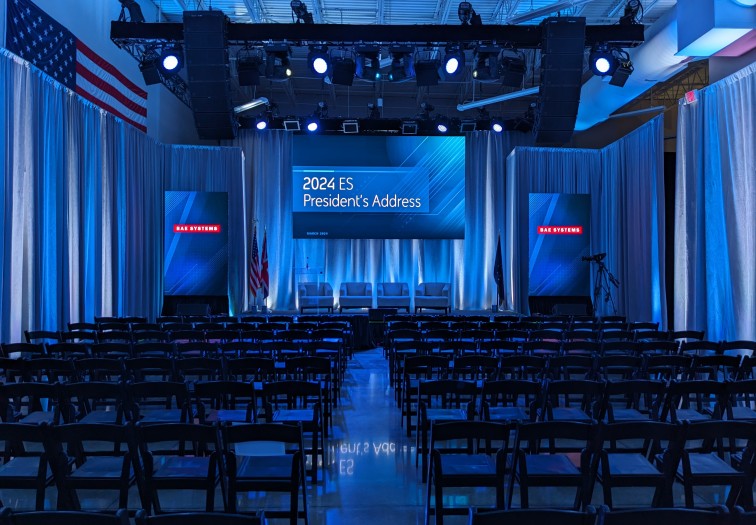

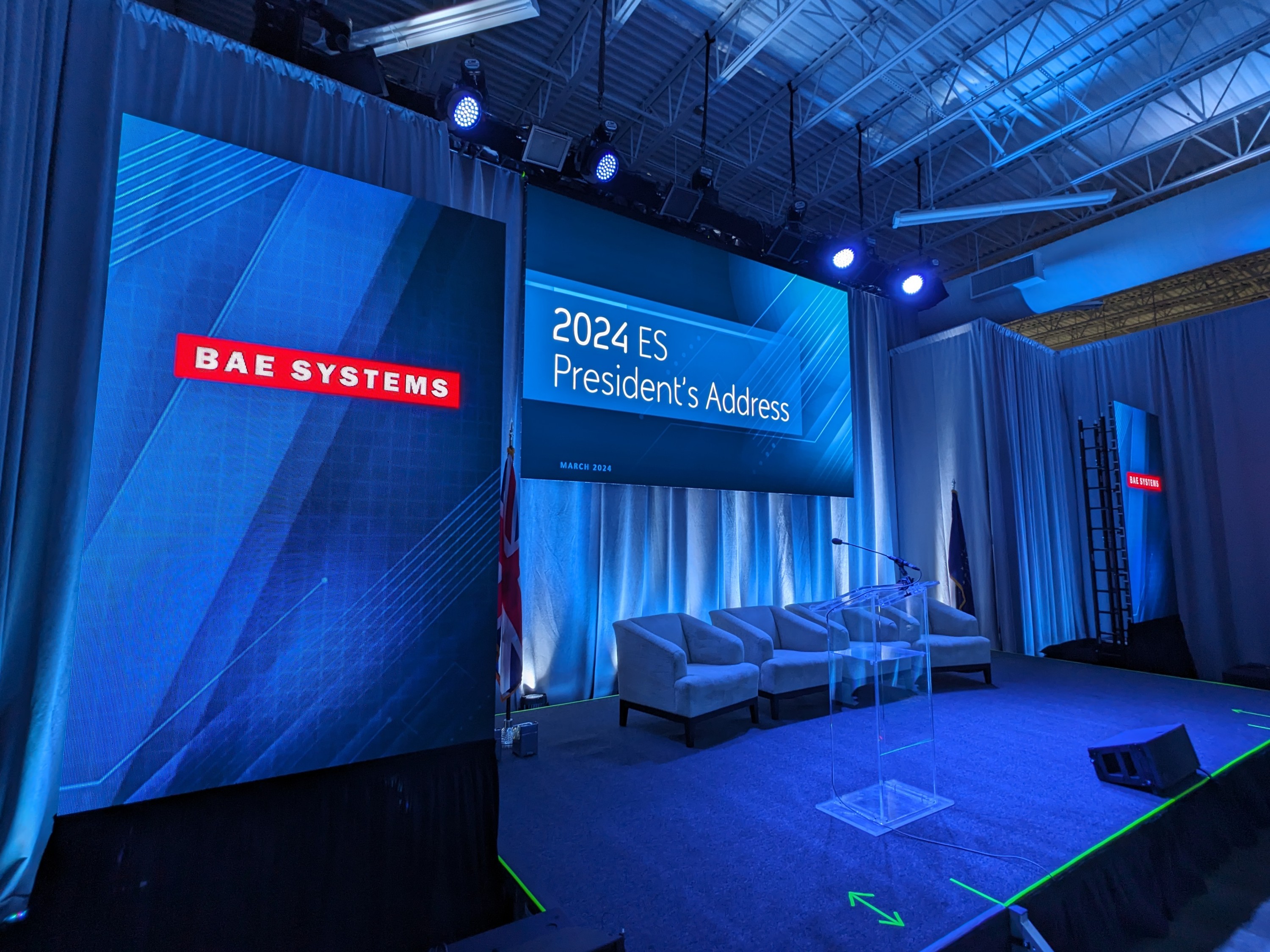

In support of our client Mark Brown from Ovations LLC, and his client BAE Systems Electronic Systems, we provided complete video, audio, lighting, rigging, and production services for for their 2024 President’s Address. The program originated from this client’s facility in Fort Wayne IN, where a local audience of about 180 people gathered in the employee cafeteria which we transformed into a hybrid event space. Thousands of others participated virtually from around the country.

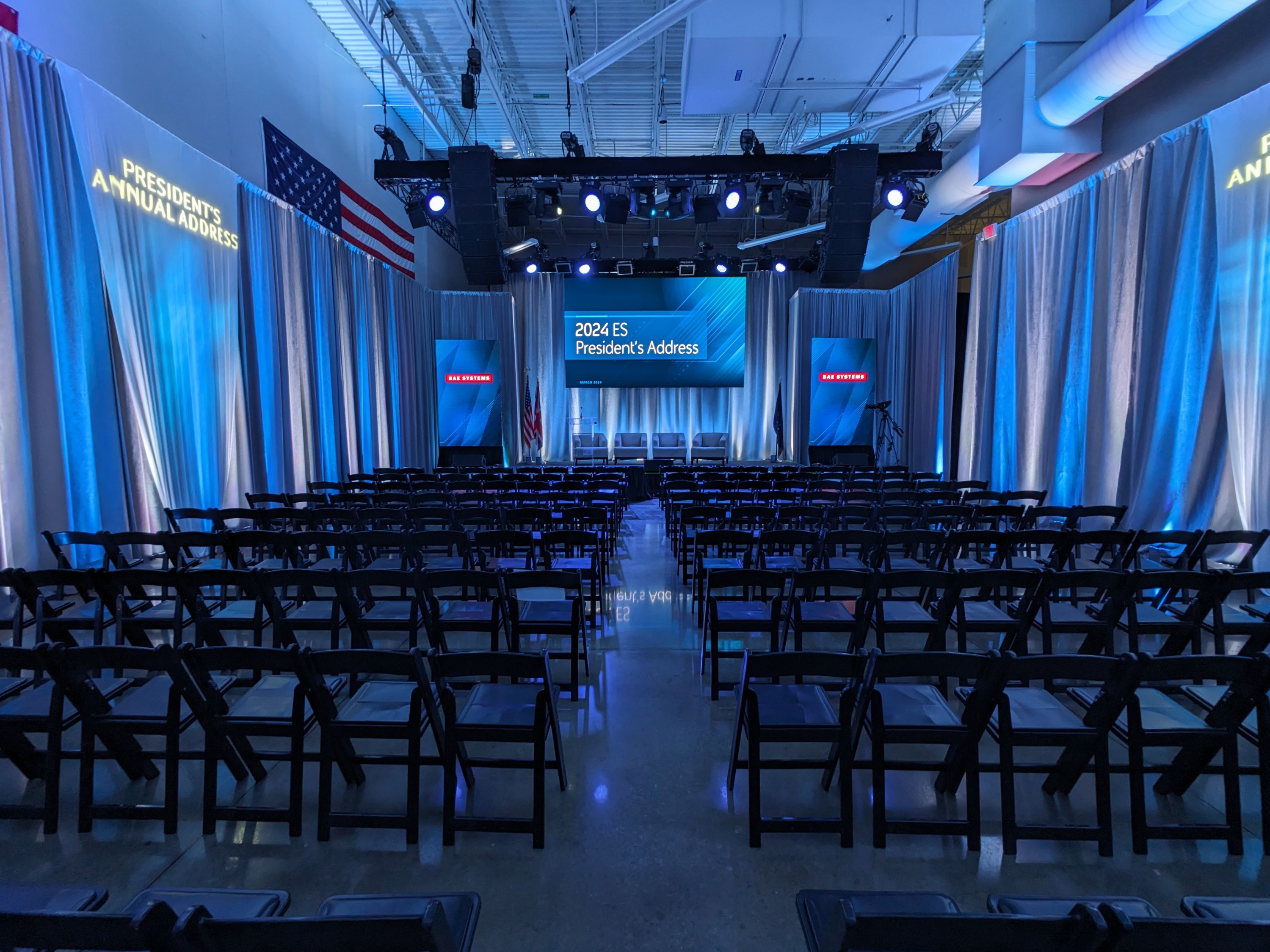

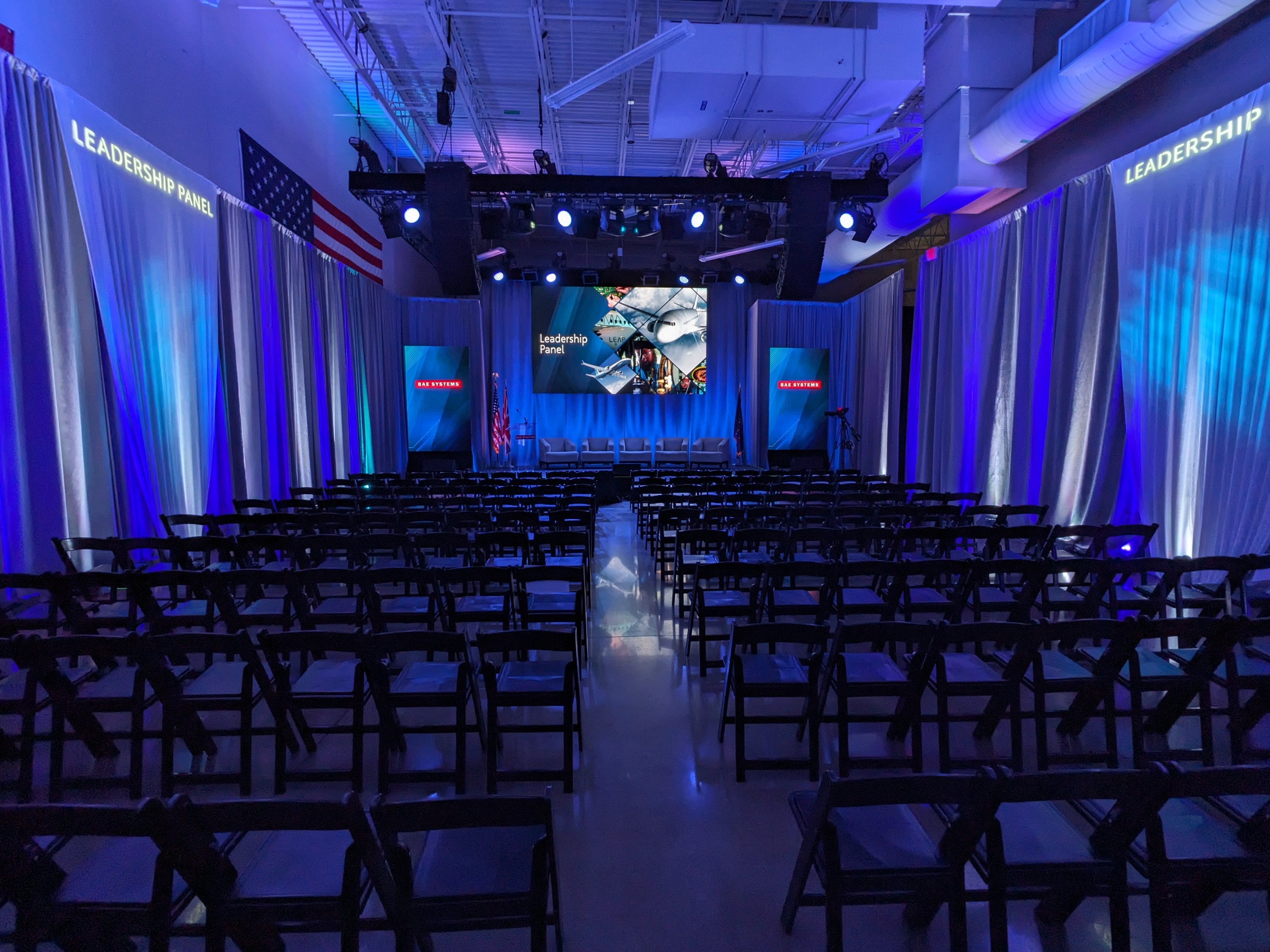

Photo Highlights

Click on the images below to view larger.

Client Praise

A very impressive level of detail!

...thanks again for a fantastic effort on the President's address and all the other stuff we are working together on. I am consistently amazed at your attention to detail, professionalism with the clients, and flexibility with all the curve balls that are thrown at us.

...really appreciate all the extra stuff you do, and as I mentioned the level of detail blows me away.

...a huge thank you to you and everyone on the Zasco team that made this week's event such a success... Your hard work and excellent attitude was noticed. I couldn't have a better team for any event.

Mark Brown
Owner
Ovations, LLC

...as the feedback gathering continues on our event it continues to be extremely positive in the way it was setup and executed with a nice mixture of audience reaction shots and Terry- the remote viewing experience really enjoyed the framing on Terry and the side-by-side look with the visual content too!!

I know it was a long haul from late November last year until yesterday, but with thanks to everyone on your team in making a successful event happen for 2024 and our sector President!

Steven LeCours
Creative Video-Photo Lab Operations Manager
Electronic Systems
BAE Systems, Inc.

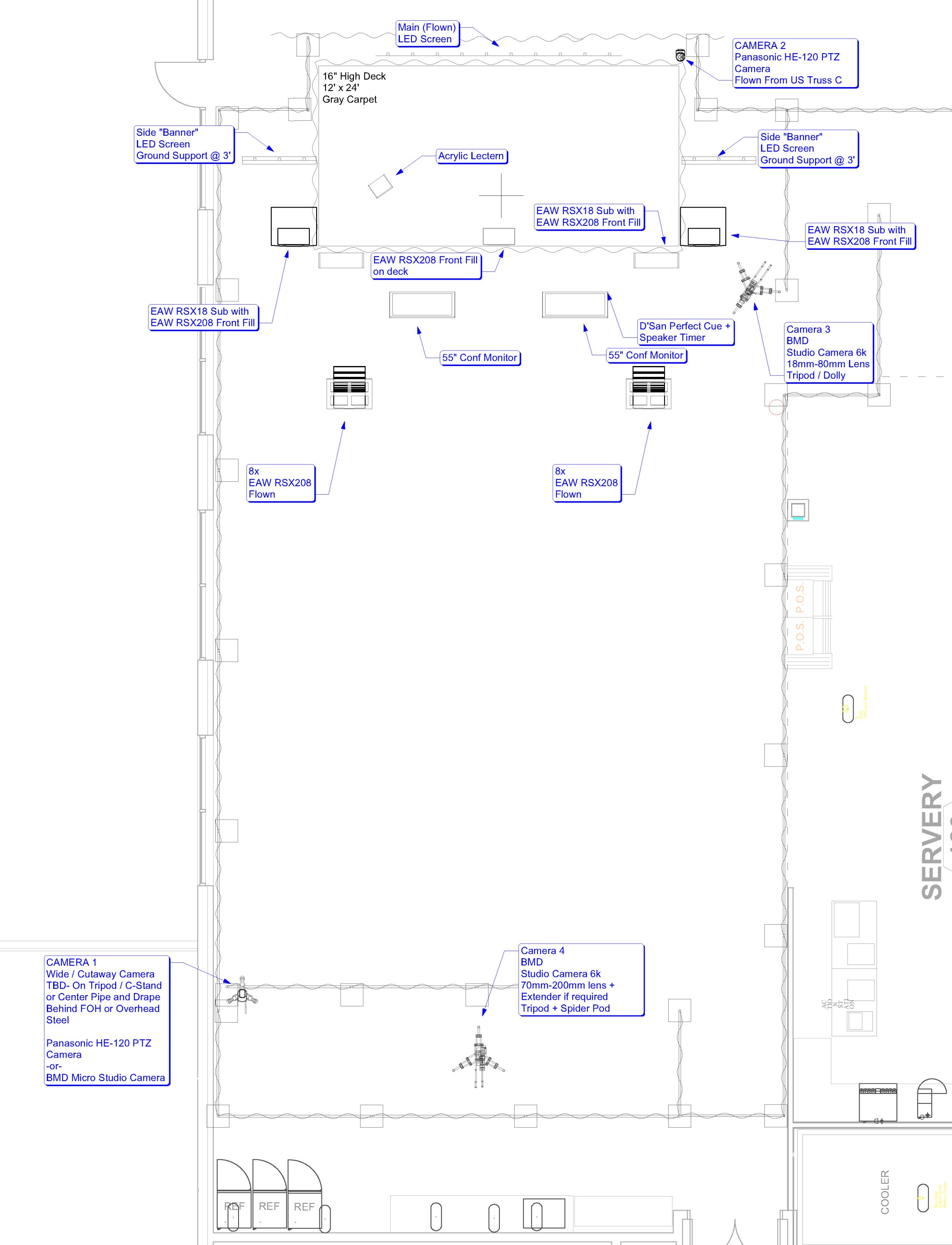

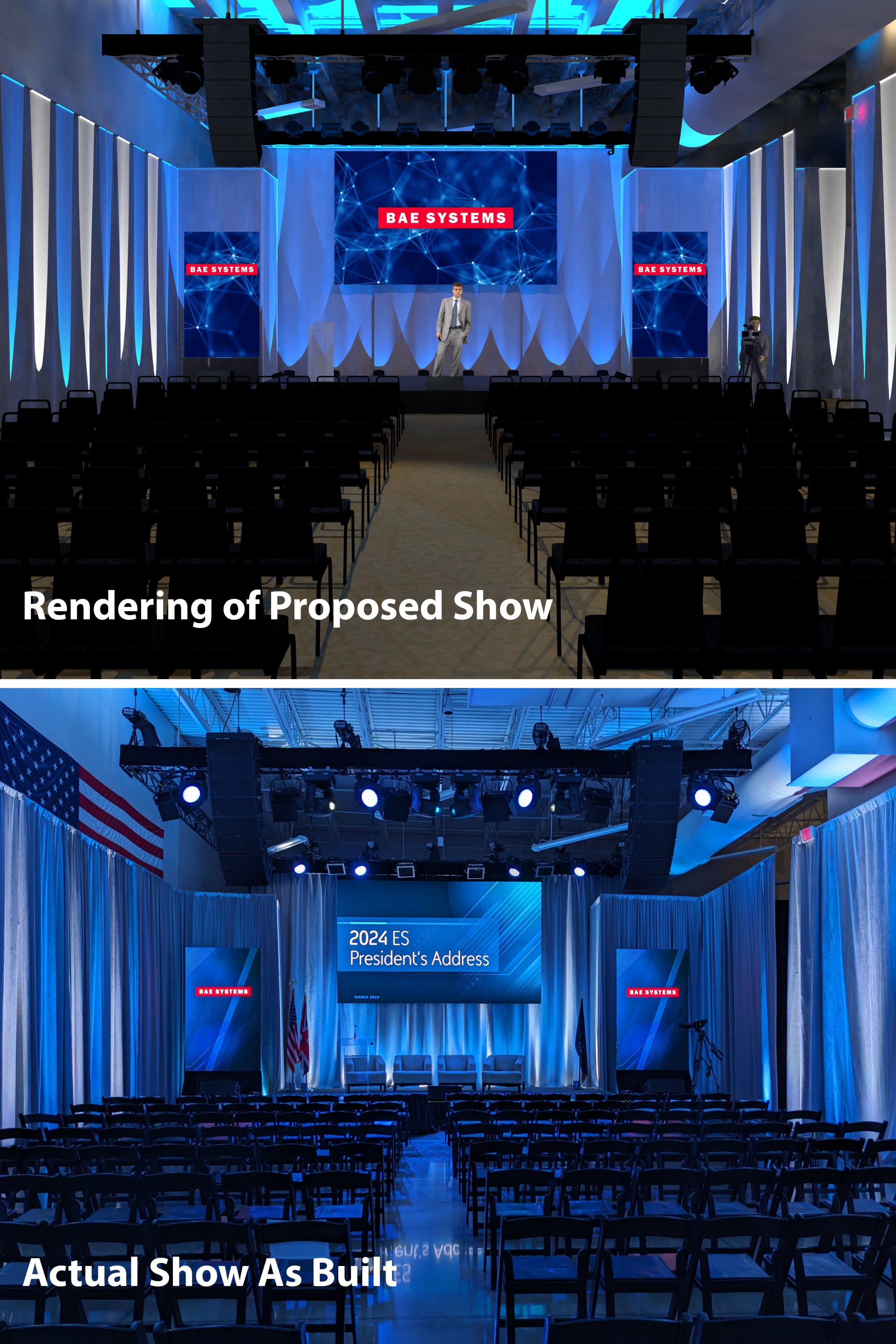

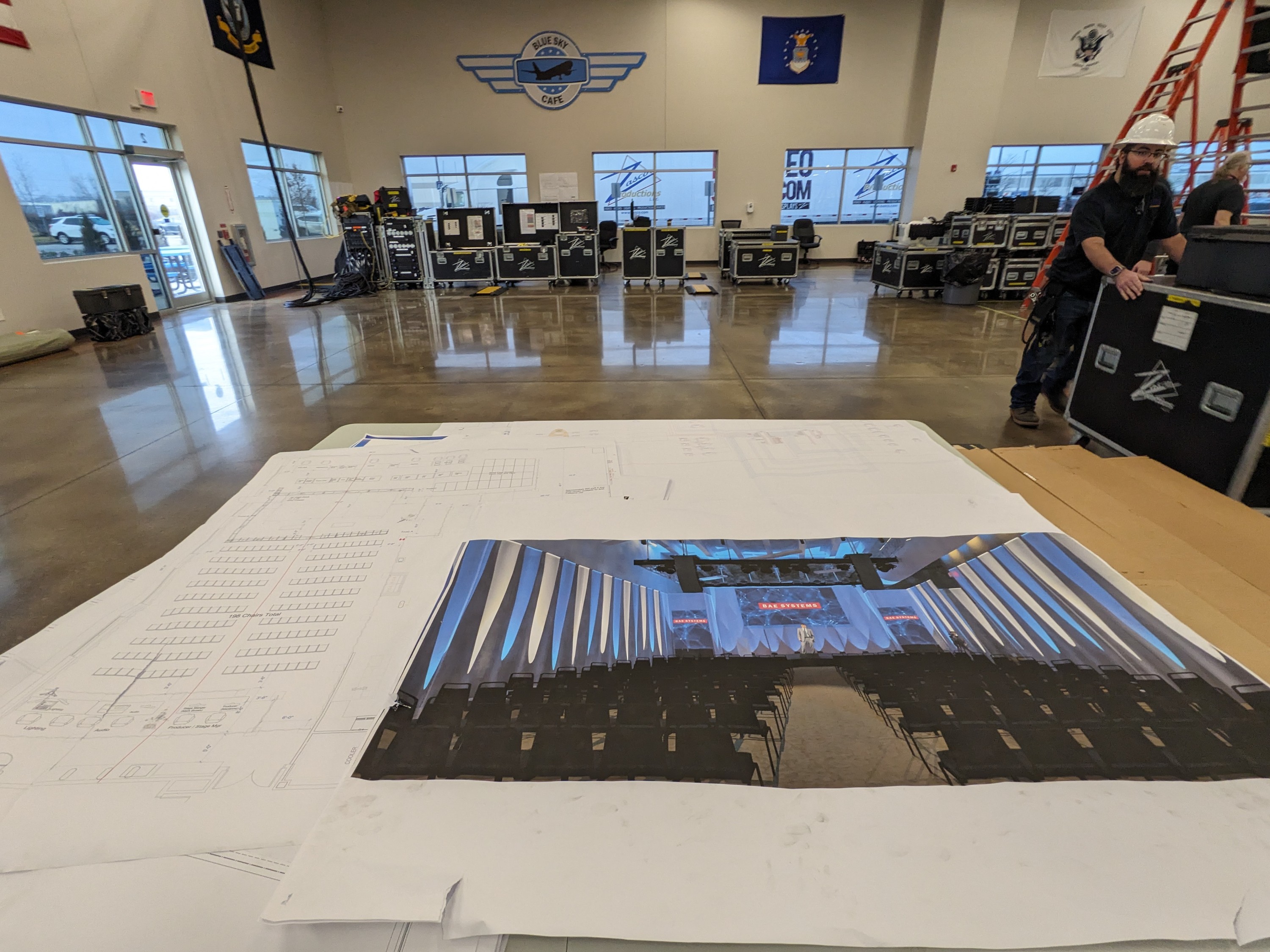

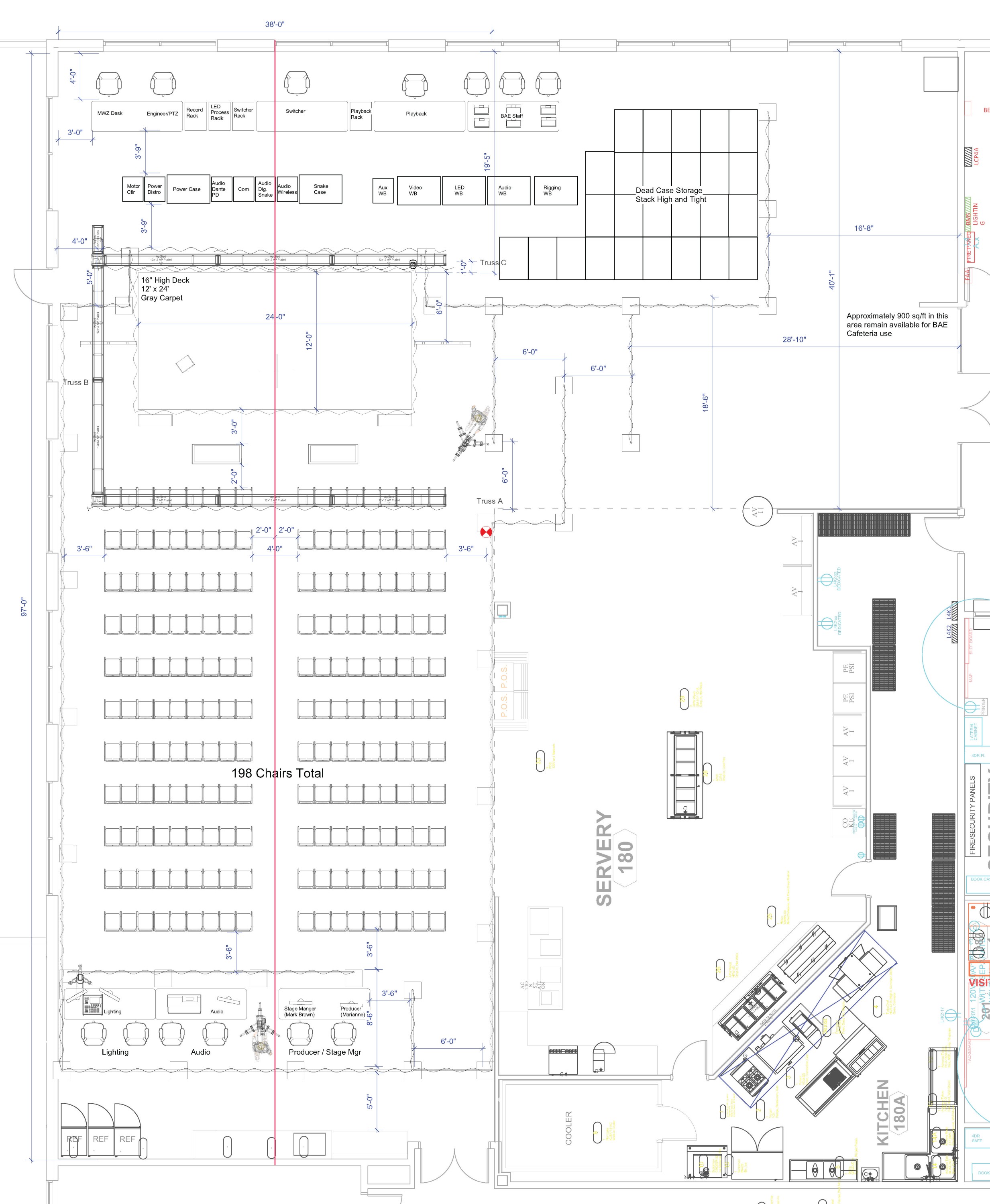

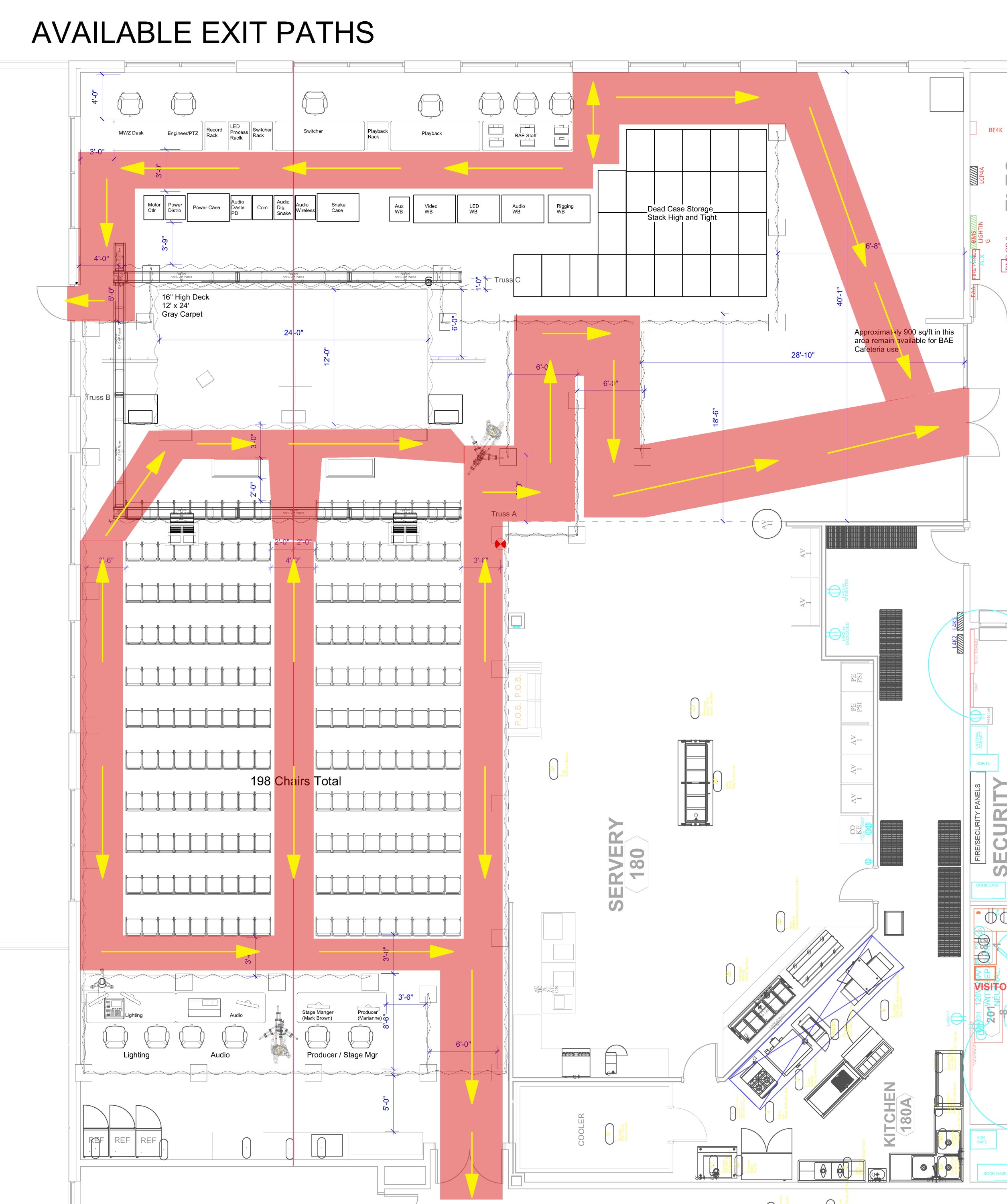

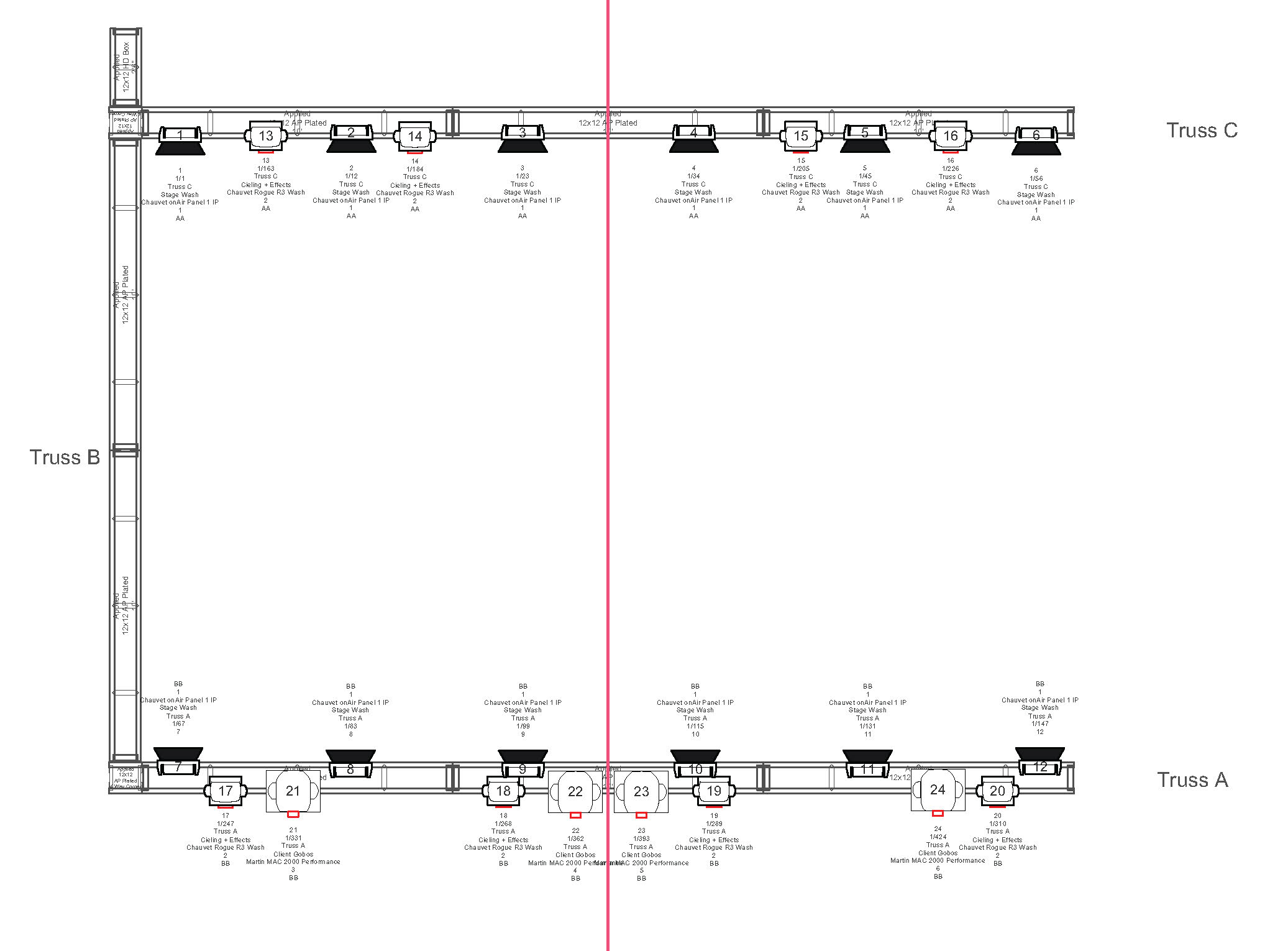

Pre-Production CAD Drawings and Renderings

During the pre-production planning process, we developed CAD drawings and 3D renderings. These assisted our client during the decision making process, and helped visualize what the event could look like in the space. These documents also provided our team and other stakeholders a detailed package which served as the basis for event planning, technical coordination, and ultimately the the load-in and setup of the event on site.

Click on the images below to view larger.

Technical / Equipment Highlights

  • Video:
    • 90 Oracle LED Systems Links 3.9mm indoor LED tiles
    • 4 Novastar NovaPro HD LED Wall processors
    • 2 Blackmagic Studio Camera 6K Pro Cameras with full studio configuration, integrated intercom, rear lens controls, single cable system
      • Canon 2568C002 CN-E 70-200mm T4.4 Compact-Servo Cine Zoom Lens, EF Mount (70~200mm)
      • Canon 1714C002 CN-E 18-80mm T4.4 Compact-Servo Cine Zoom Lens, EF Mount (18~80mm)
    • 2 Blackmagic Design Studio Converters
    • 1 Blackmagic Design Micro Studio Camera 4K G2
    • 2 Panasonic AW-HE120W PTZ Cameras
      • Panasonic AW-RP50N Compact Remote PTZ Camera Controller

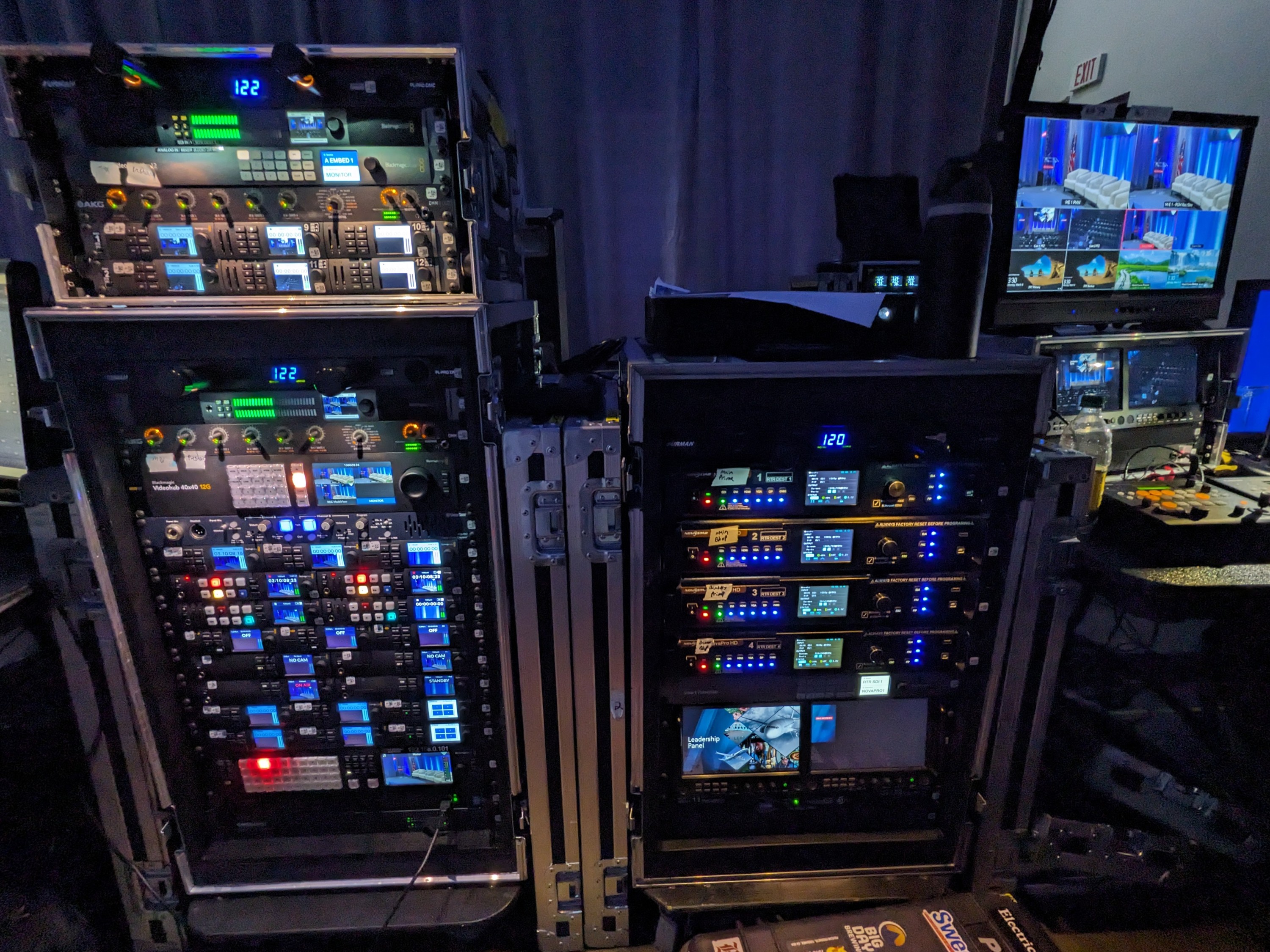

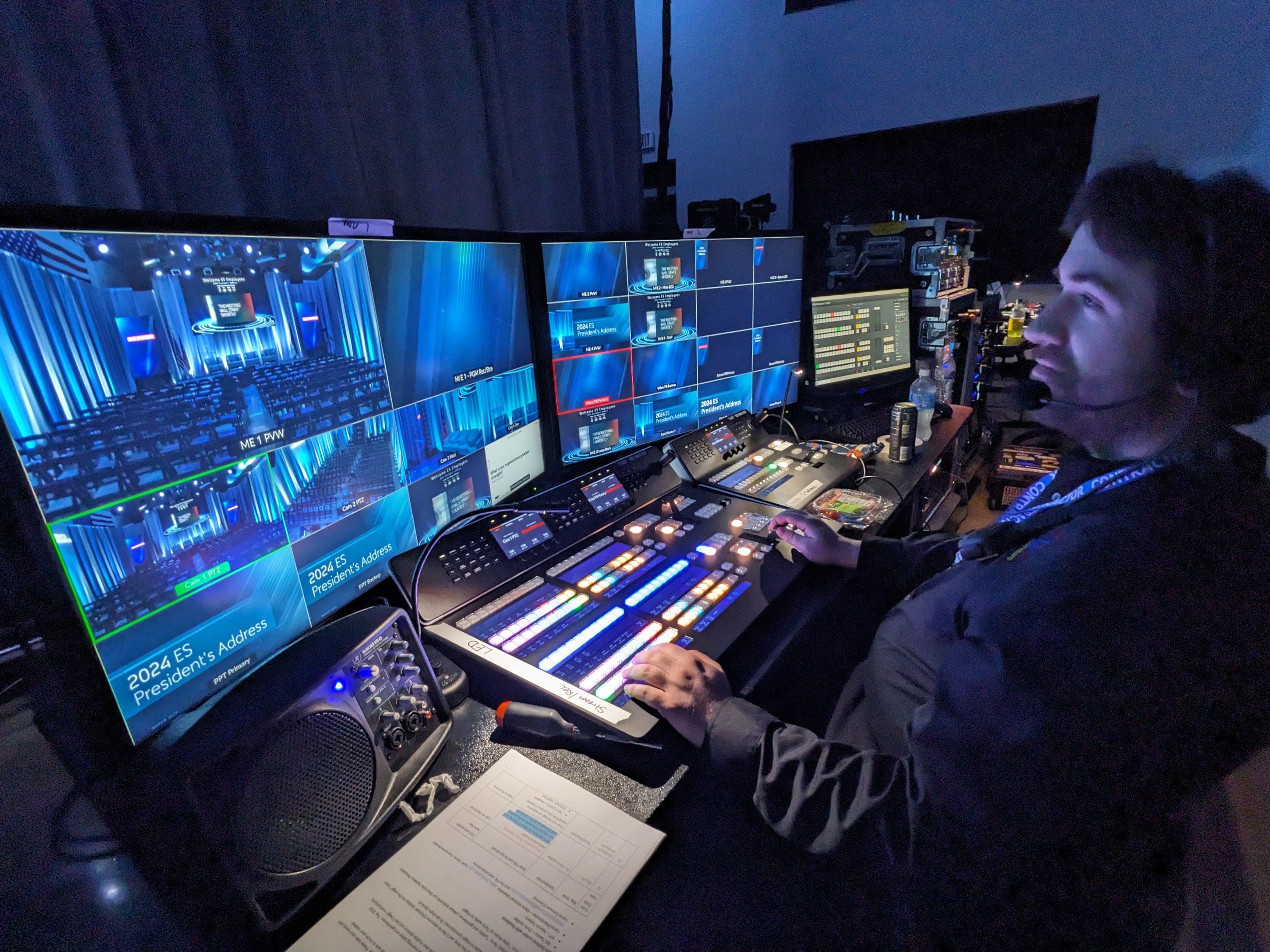

    • Blackmagic Design ATEM 4 M/E Constellation HD production switcher
    • Blackmagic Design 2 M/E advanced control panel
    • Blackmagic Design ATEM Camera Control Panel
    • 4 Blackmagic Design HyperDeck Studio HD Plus Recorders
    • Blackmagic Design Videohub 40×40 12G Zero-Latency Video Router
    • Video monitoring, processing, control, and distribution
  • Graphics / Playback:
    • 4 Apple MacBook Pro Computers with Playback Pro software
  • Audio:

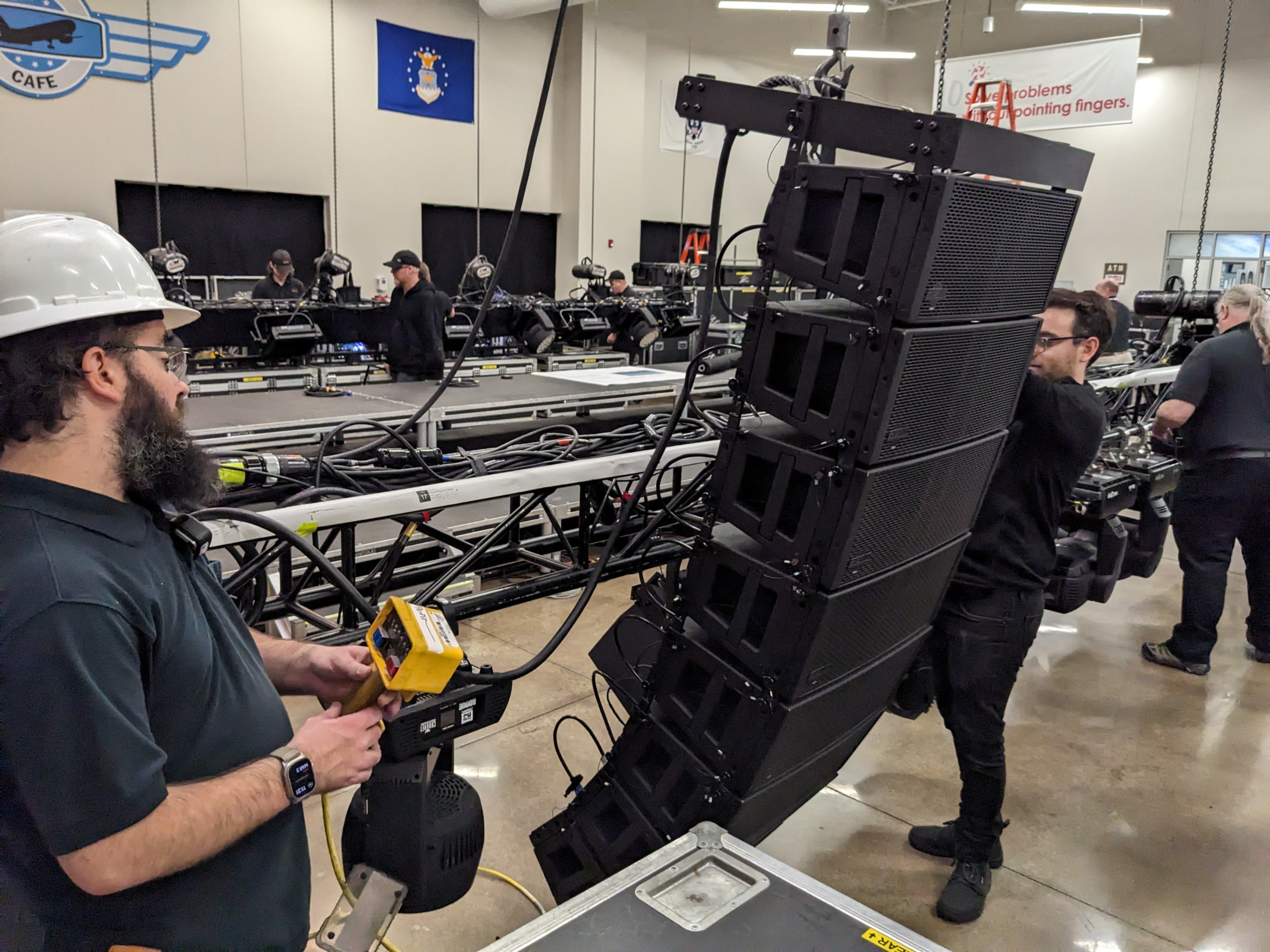

    • 19 EAW RSX208L Radius series line array loudspeakers
    • 2 EAW RSX18 Radius series subwoofer loudspeakers
    • 2 EAW RSX129 Radius series point-source loudspeakers
    • 2 Mackie SRM-150 monitor loudspeakers
    • Yamaha LS9 digital audio mixing console
    • Aviom A-Net Pro64 digital snake system
    • Earthworks FM500 Lectern microphone
    • DPA Lavalier and headset microphones
    • 12 Shure ULX-D series wireless microphone systems
    • QLab audio recording / playback system
    • Audio monitoring, processing, control, and distribution
  • Power Distribution:
    • Motion Labs Production Power Distribution Systems
  • Lighting:
    • 12 Chauvet Professional onAir Panel 1 IP Full Spectrum RGBW LED Soft Lights
    • 8 Chauvet Professional Rogue R3 Wash RGBW LED Moving Yoke Fixture
    • 4 Martin MAC 2000 Performance II 1200 Watt HMI CMY Moving Head Spotlight
    • 10 Chauvet Professional – COLORado 3 Solo Indoor / Outdoor RGBW Zooming LED Wash Fixture
    • 7 Philips Color Kinetics Color Blaze 72 72-inch High-Performance Linear RGB LED Cyc Wash Fixture
    • 72 Chauvet Professional WELL Fit Indoor / Outdoor Wireless / Battery RGBA LED Uplight Fixture
    • ETC/High End Systems Road Hog 4-21 lighting control console
    • DMX / Data Distribution
  • Rigging:
    • 13 CM Lodestar 1/2-Ton F-Series 1/2-Ton Chain Hoists
    • Motion Labs P14 Motor Control Systems
    • 80′ Universal 12″ x 12″ GP Box Truss
  • Presenter Support:
    • Dsan PerfectCue System
    • Dsan Limitimer System
    • 2 Samsung QE55T 55″ 4K UHD Commercial LCD Display confidence monitors
  • Scenic / Softgoods:
    • Rose Brand 22 oz Pewter Encore IFR Velour Drape 15′ W x 25′ H
    • Control Area Pipe and Drape package
  • Communications:
    • Two-Channel ClearCom System including:
      • ClearCom PS-702 2-Channel Power Supply
      • ClearCom RS-702 2-Channel Beltpacks
      • ClearCom RS-701 1-Channel Beltpacks
      • ClearCom DX410 Digital Wireless System
    • 16 Motorola CP200D UHF Portable Two-way Radios
  • Staging:
    • 6 Penn Elcom Penn Stage 4′ x 8′ Stage Decks with legs, stairs, and skirts

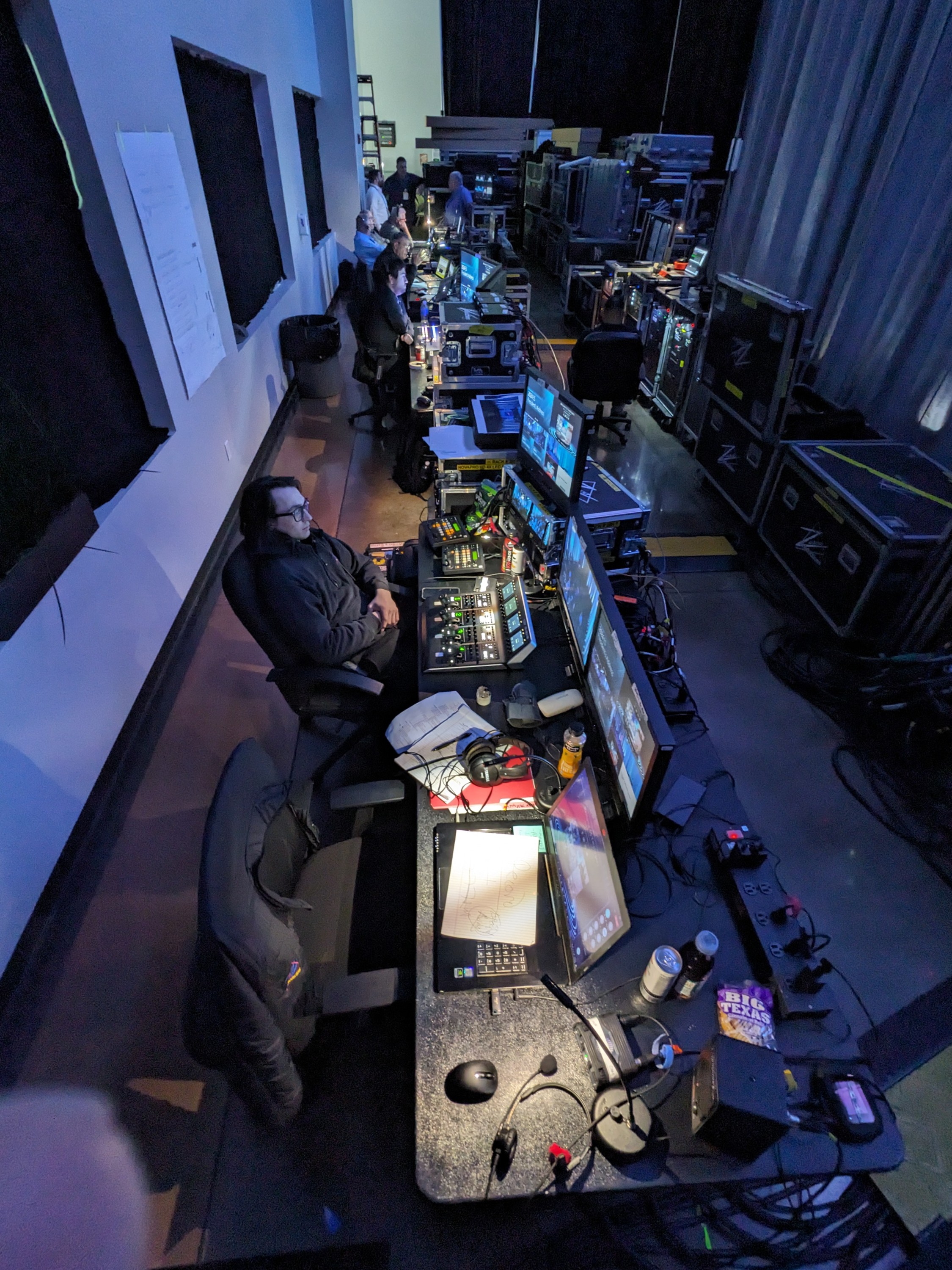

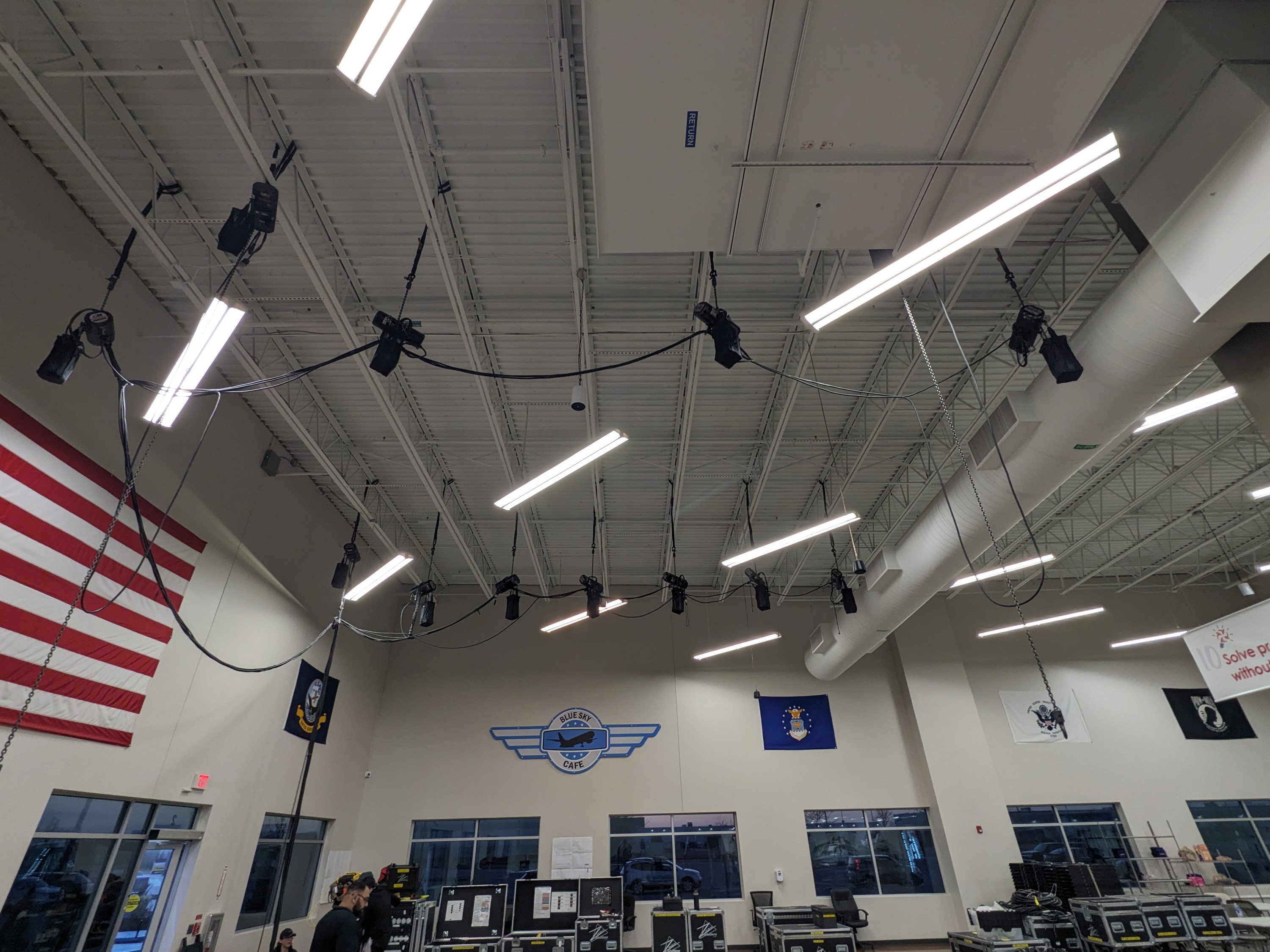

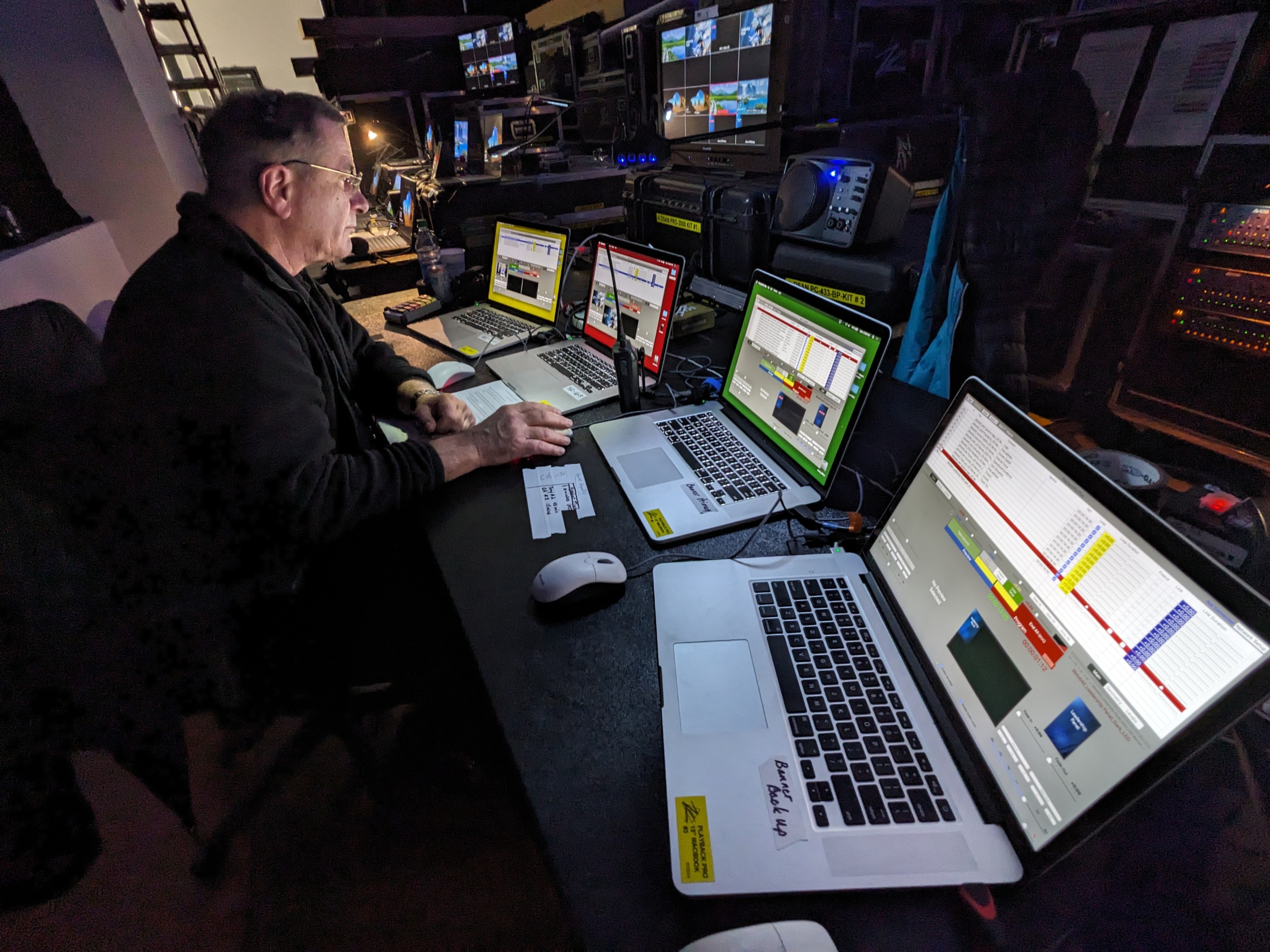

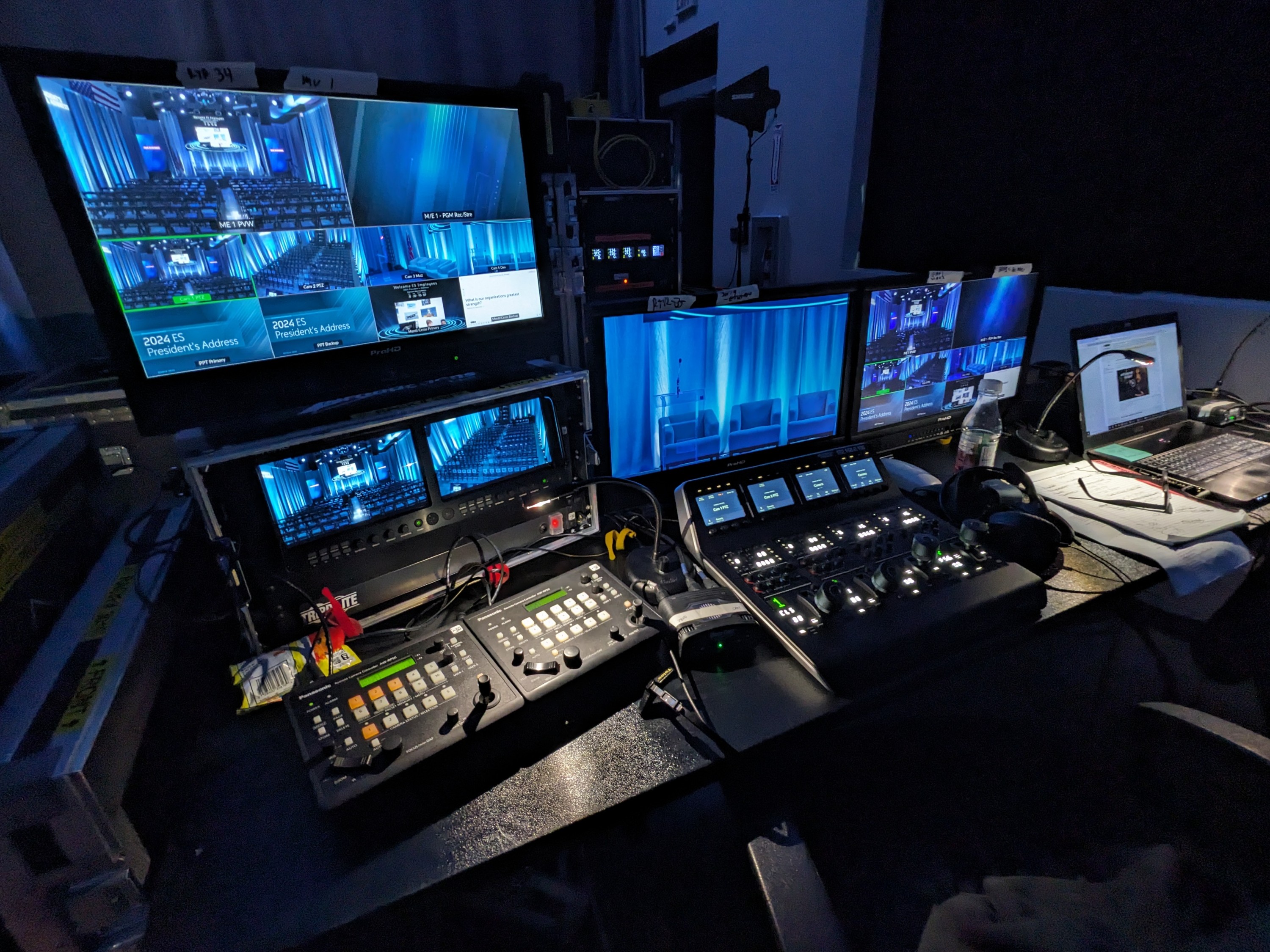

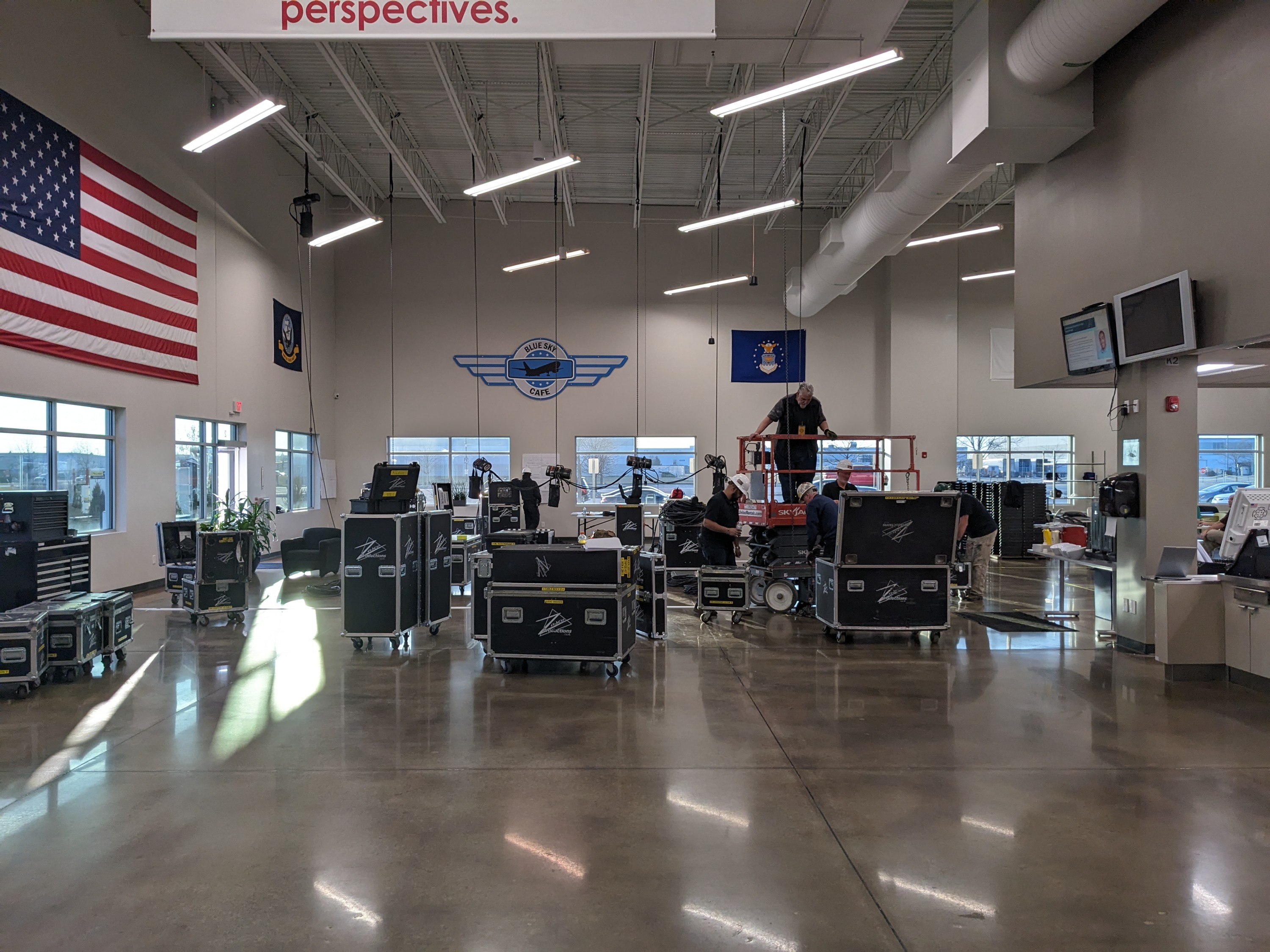

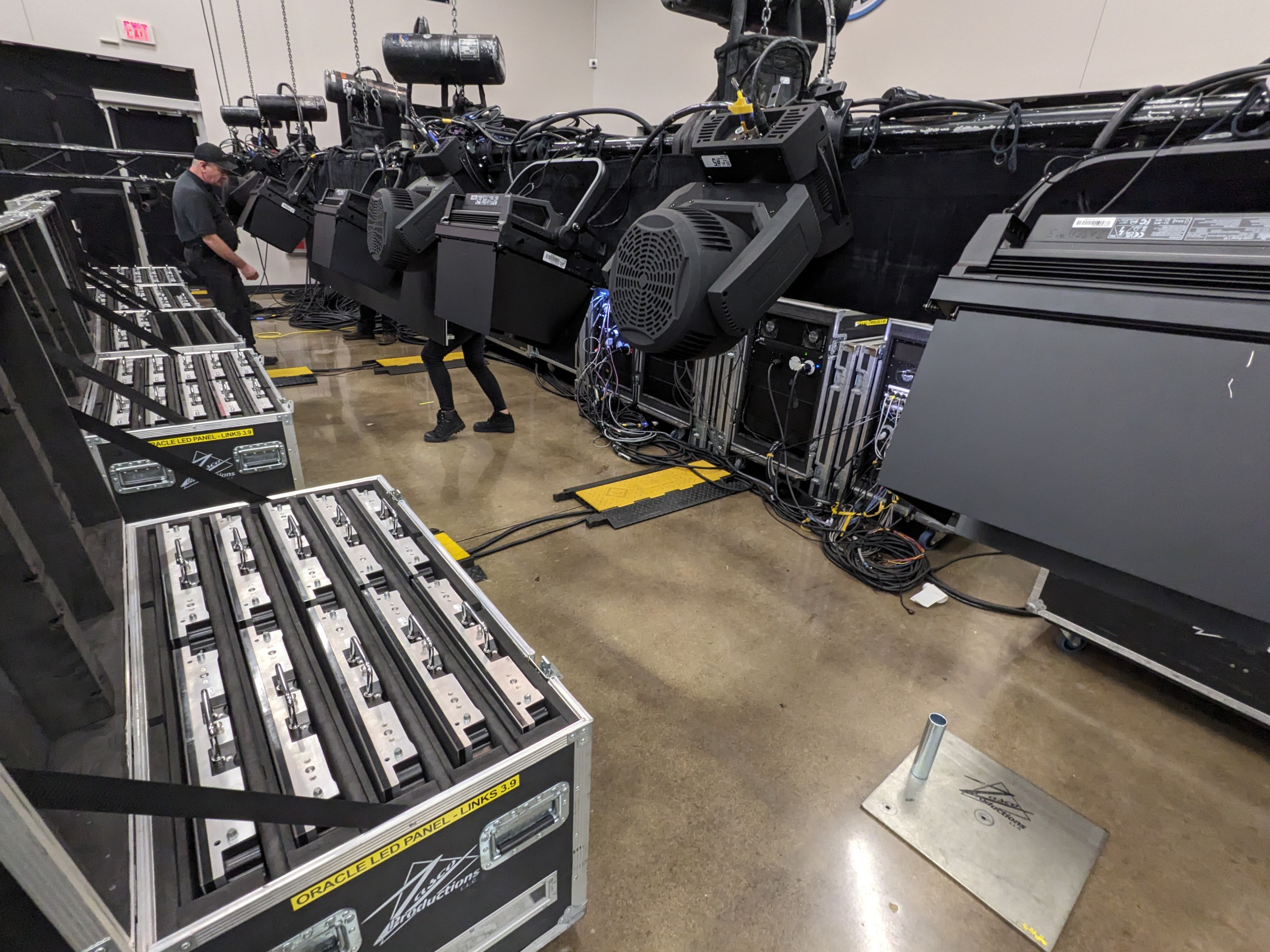

Technical Photo Highlights
