Bay Path University - 2026 Women's Leadership Conference
Complete Turn-key Production Services including:
- Design / CAD Drafting
- Production Management and Technical Direction
- Stage Management / Show Caller
- LED Video Wall
- Screen Management / Video Switching
- Graphics / Video Playback
- Video Production / Recording
- Audio Reinforcement
- Lighting
- Scenic / Drape
- Rigging
- Production Staff
Overview

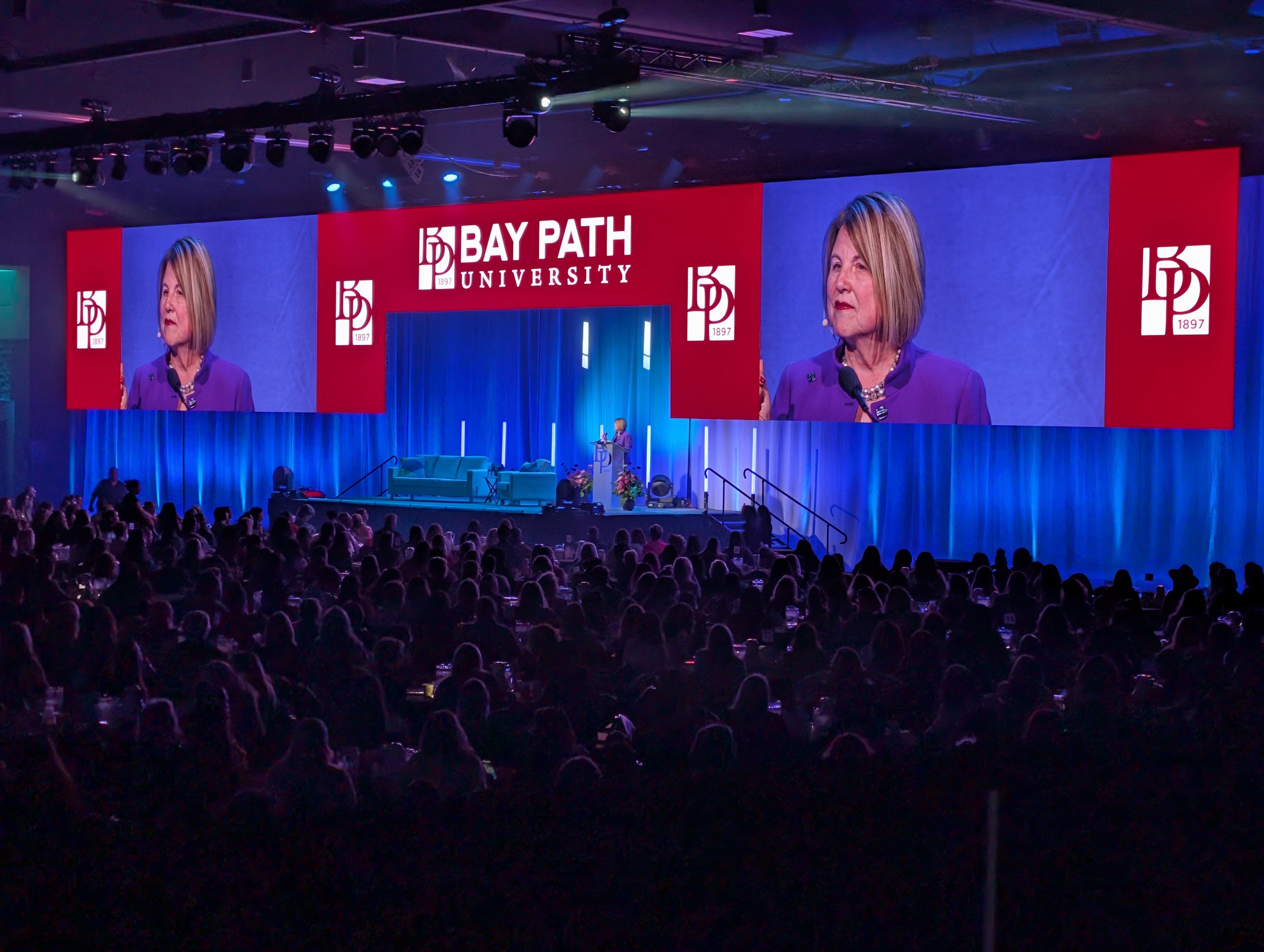

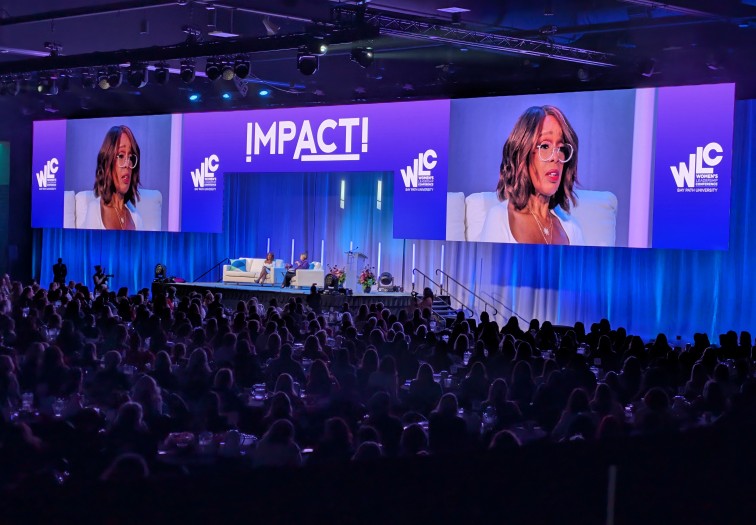

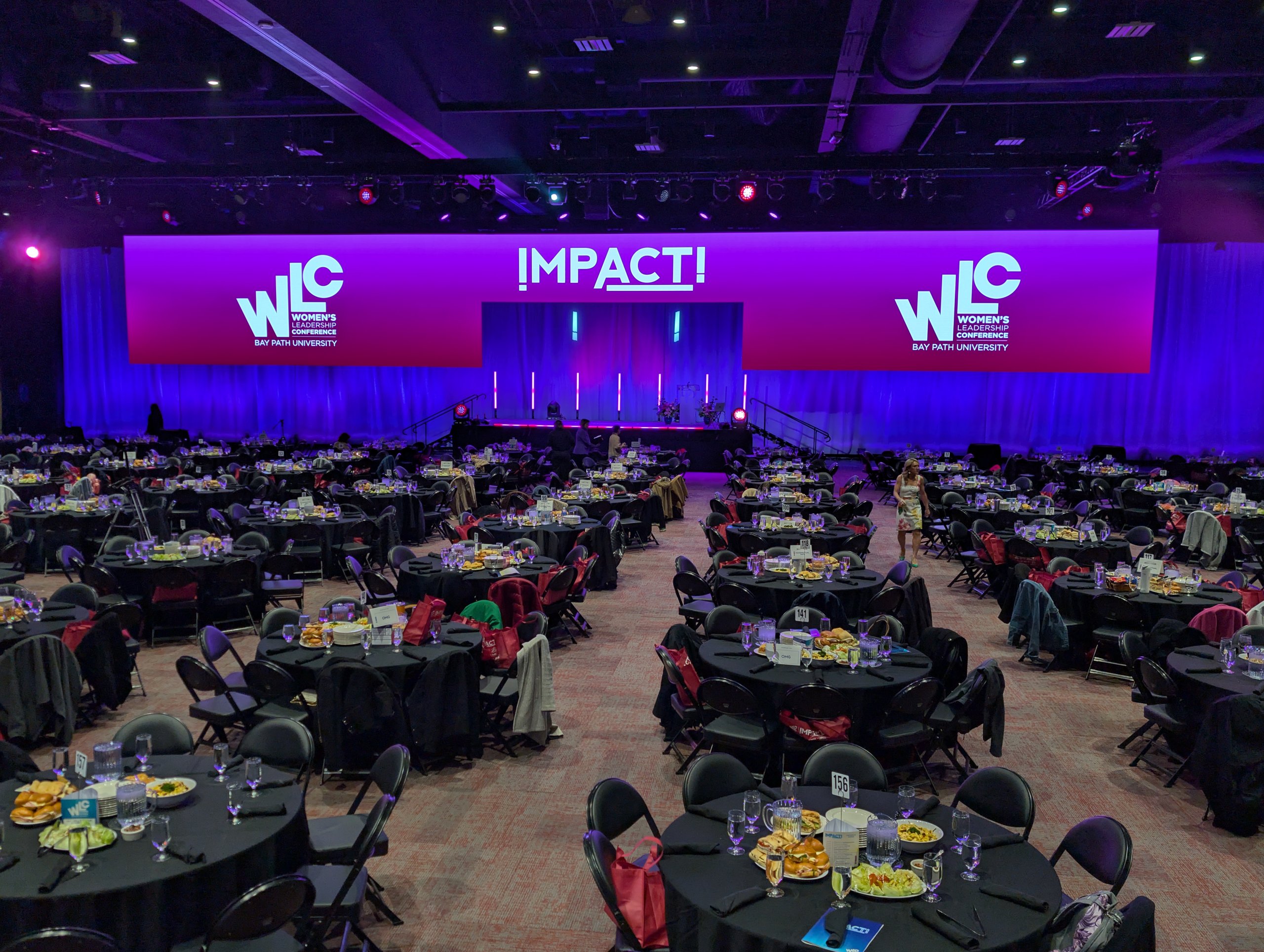

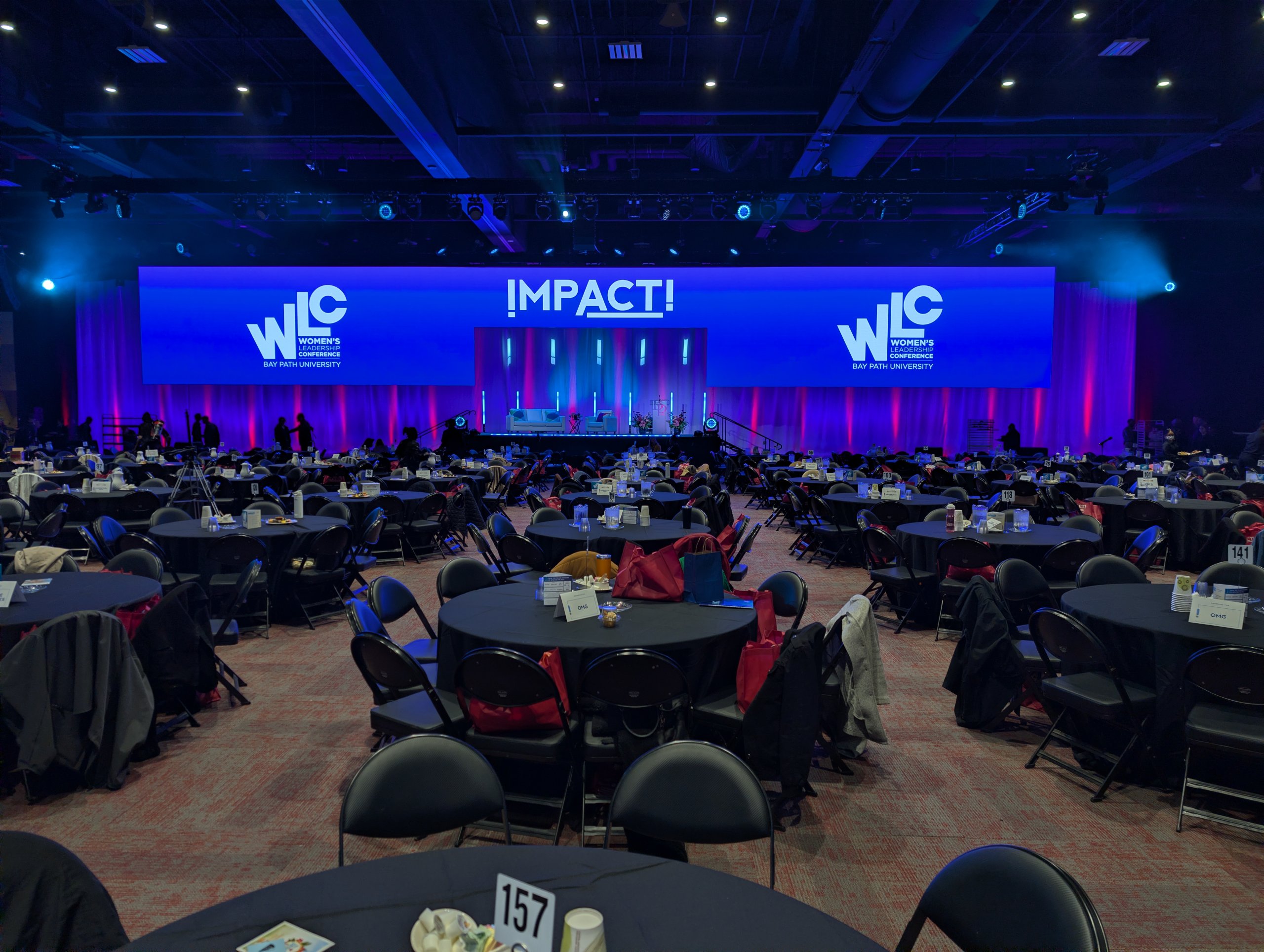

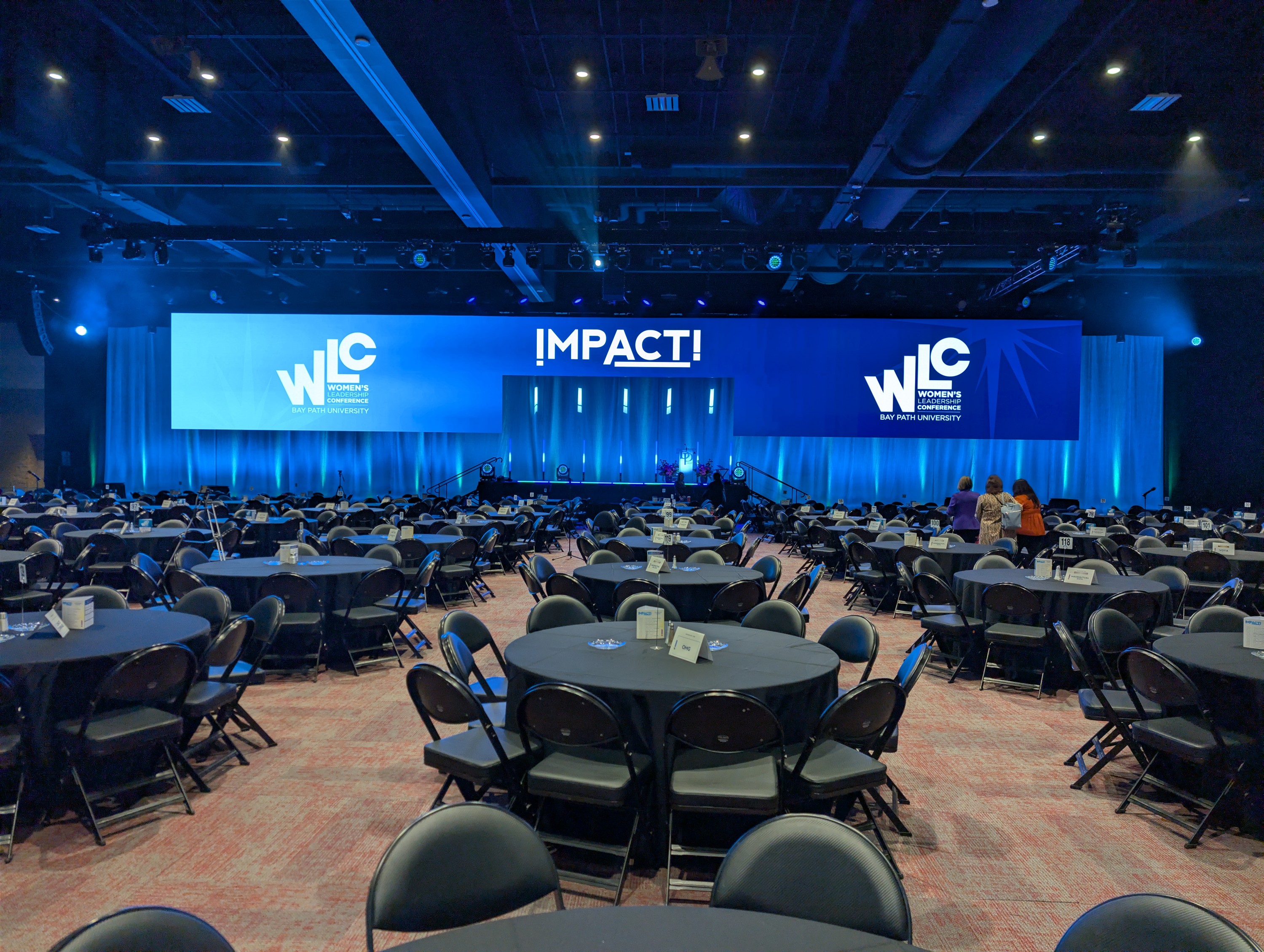

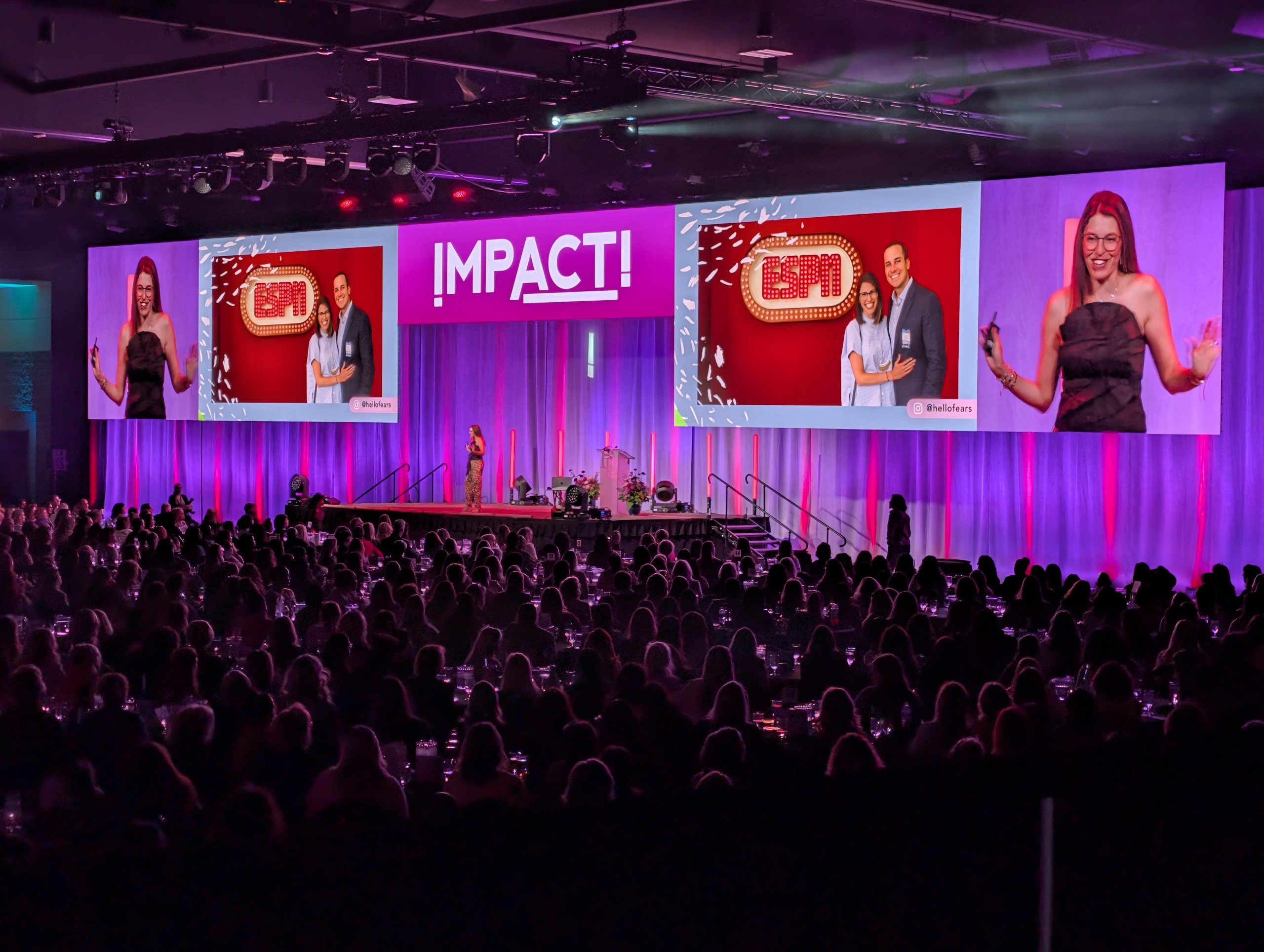

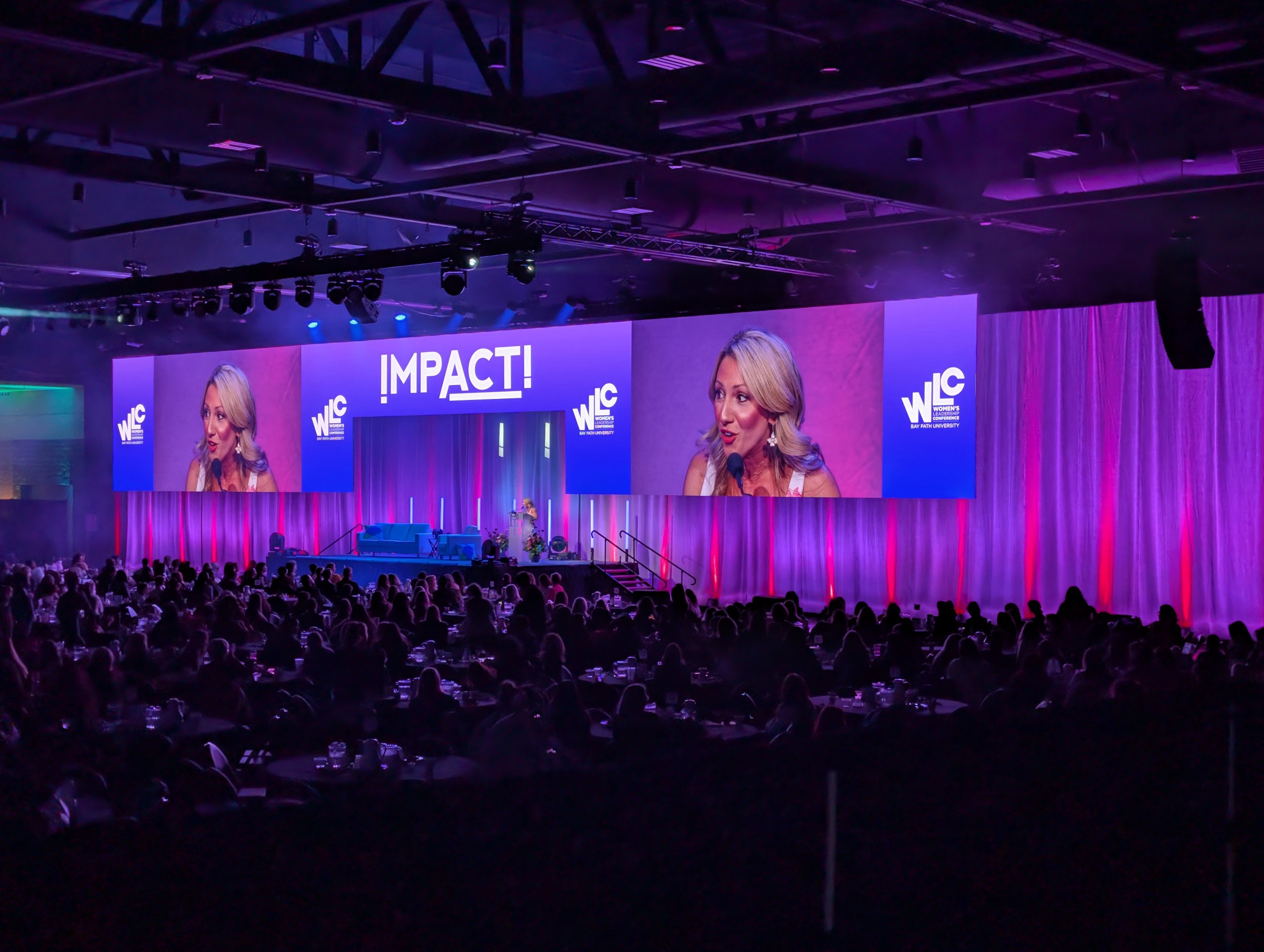

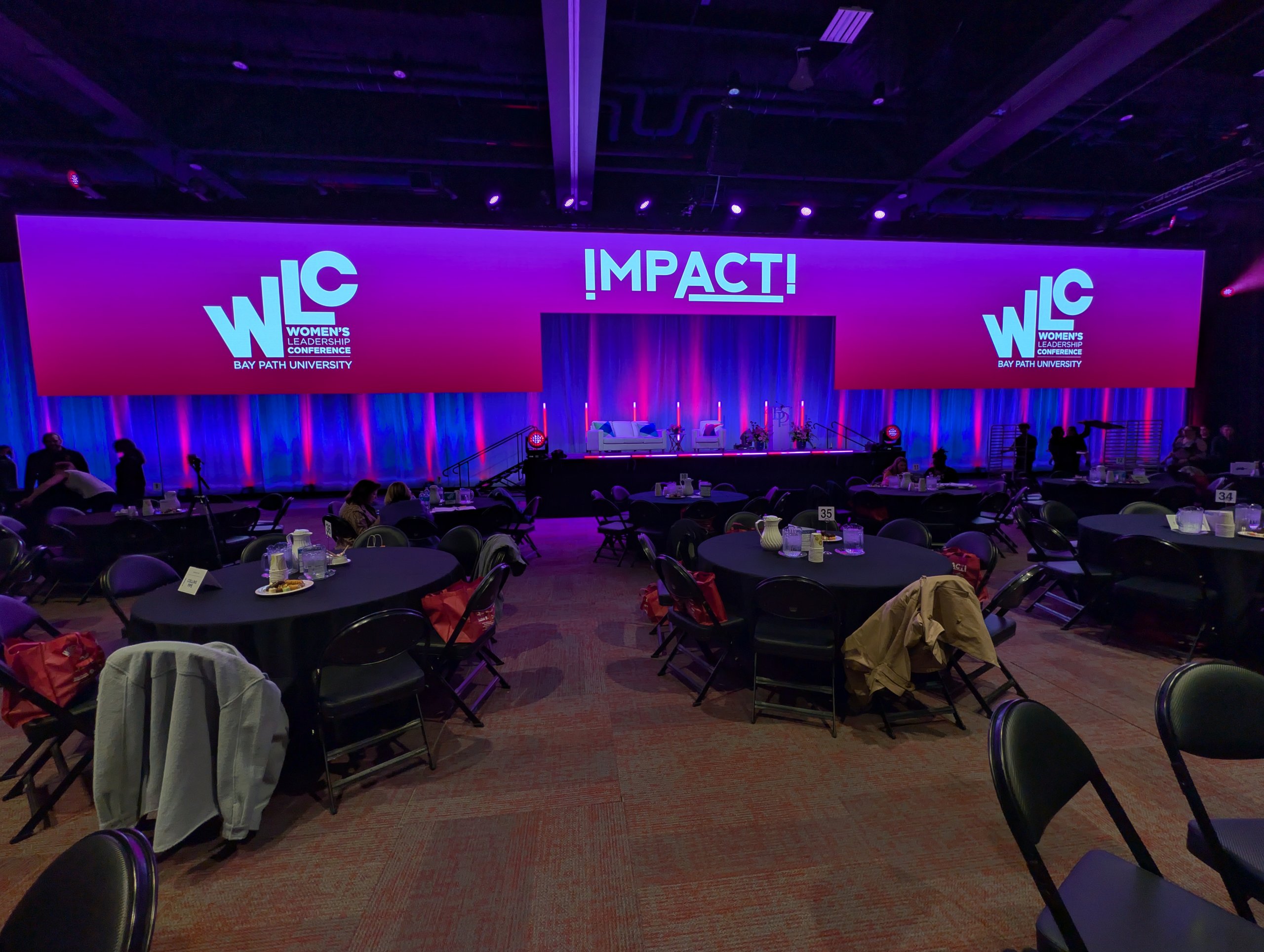

We transformed the MassMutual Center Exhibition Hall into an impactful experience for an audience of 1600 people. Using a 101 foot wide high resolution LED video wall to display combinations of presentations, I-MAG, and full-screen graphics, every member of the audience was able to enjoy the presentation, regardless of where they were seated. Sound reinforcement was equally important. A carefully designed and deployed line-array system with state-of-the art digital mixing and processing equipment enabled us to deliver crystal clear, highly intelligible audio to every seat, in this otherwise very reverberant space. Video production included a 4-camera production for both recording and I-MAG. Lighting included over 200 units with LED moving lights for both broadcast quality illumination for the cameras as well as theatrical lighting for special visual effects.

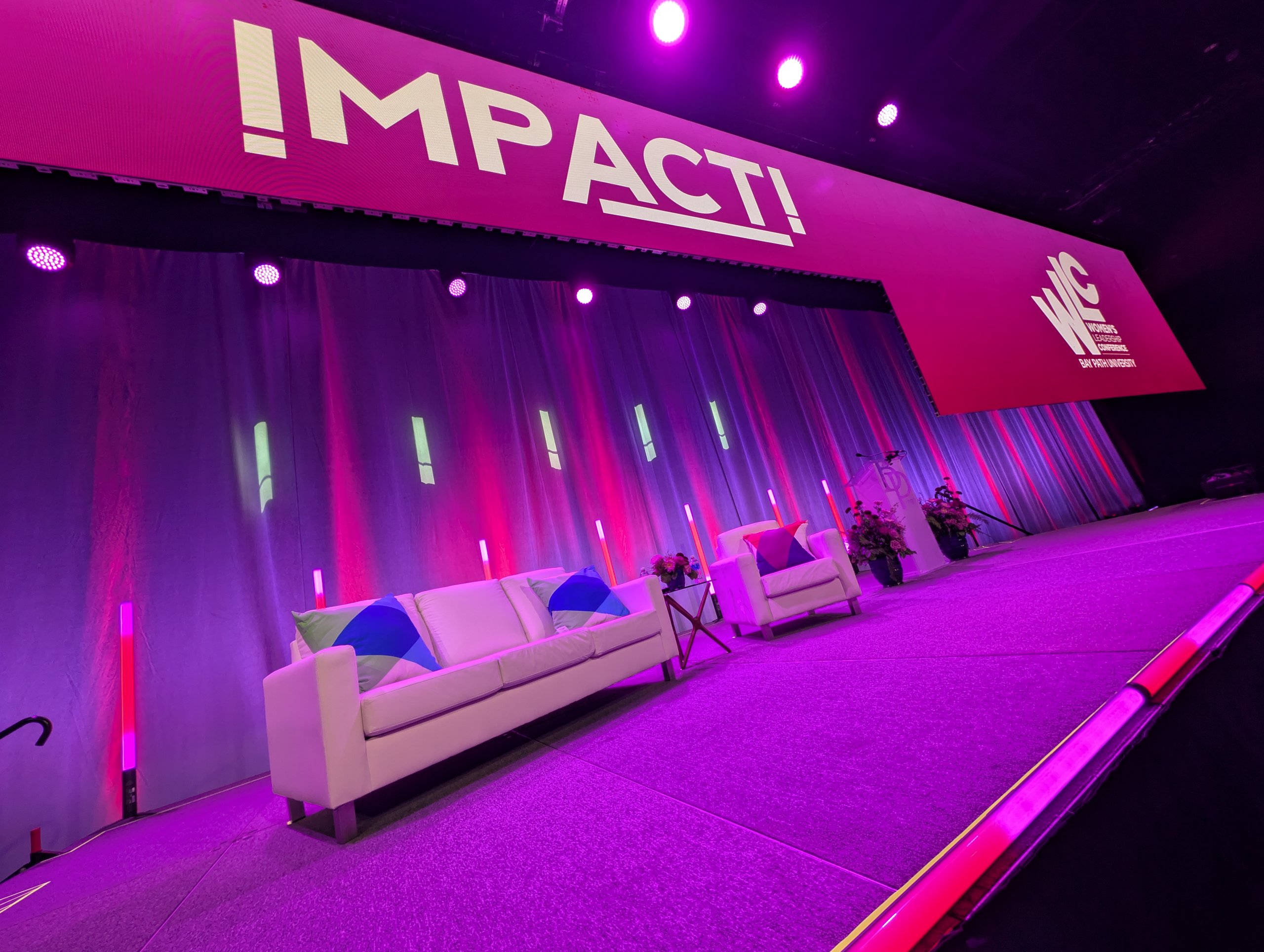

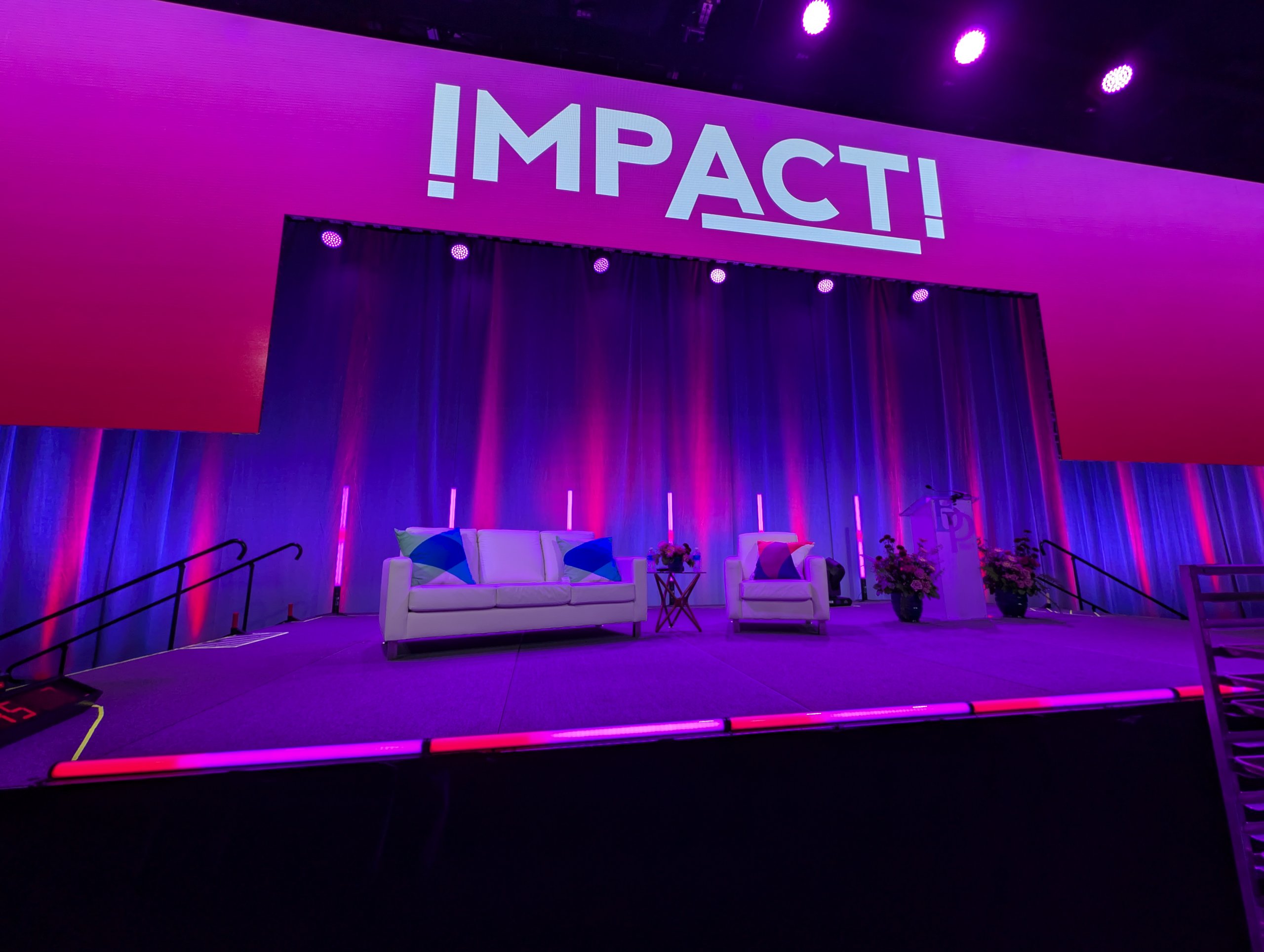

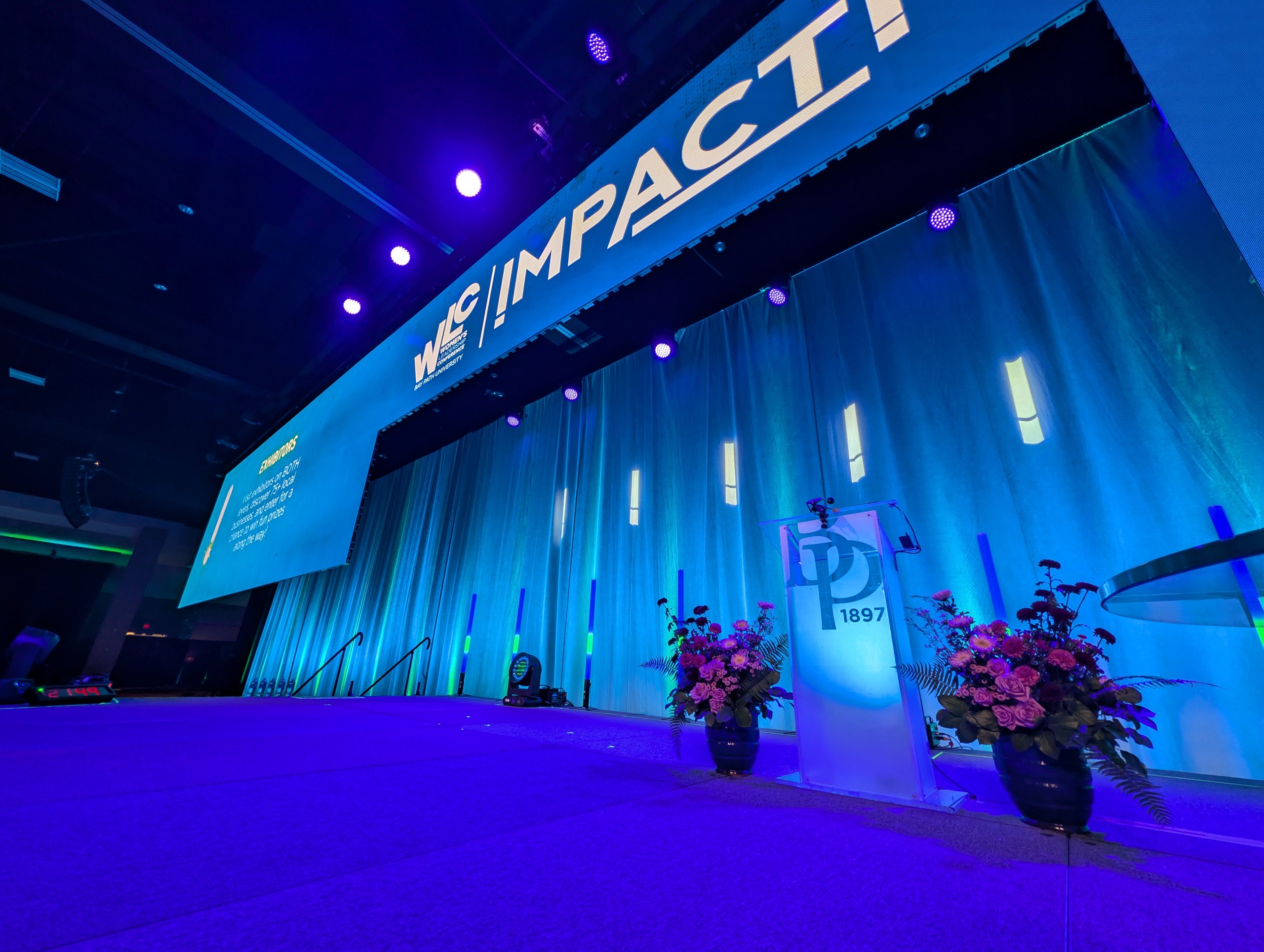

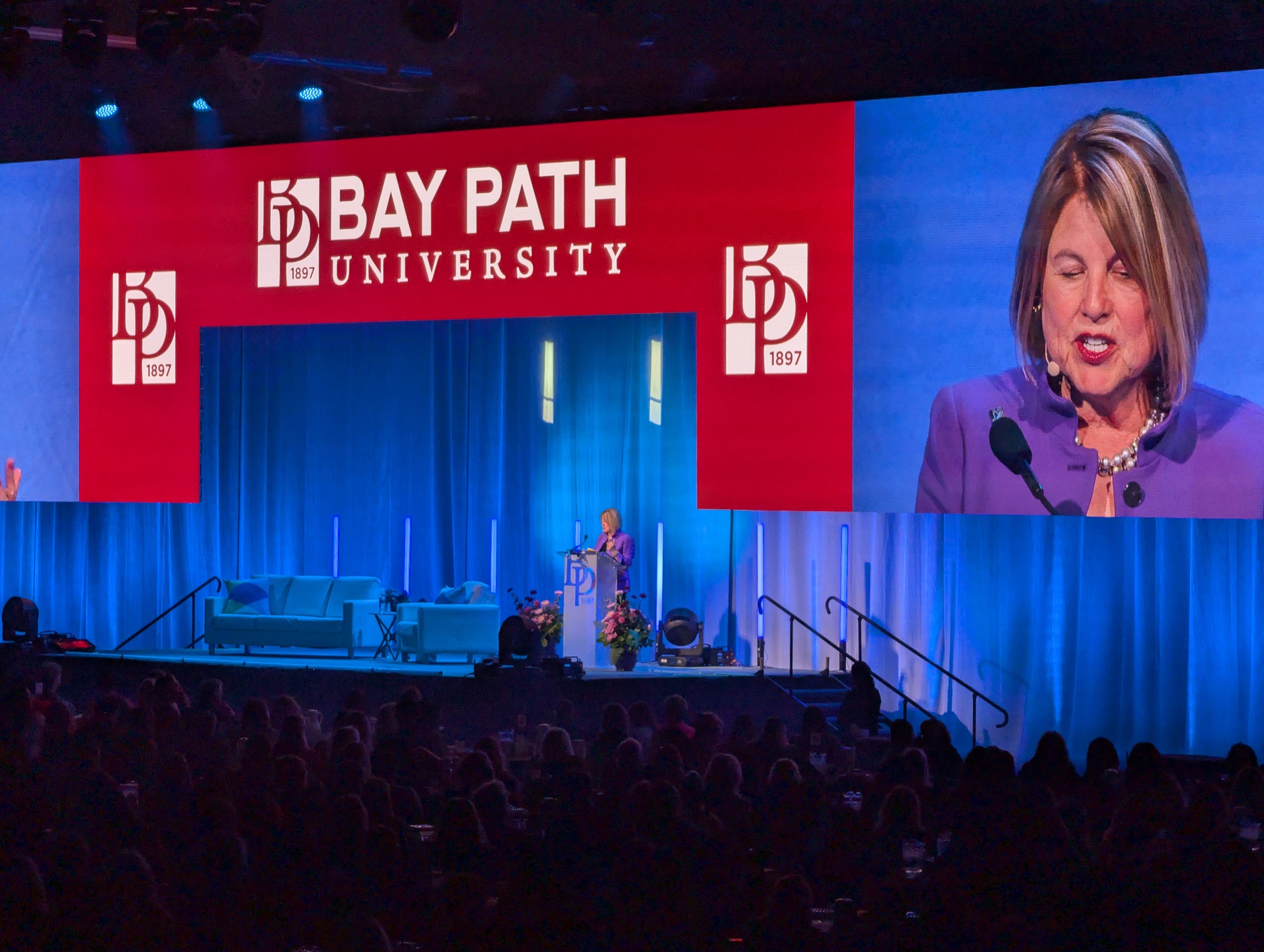

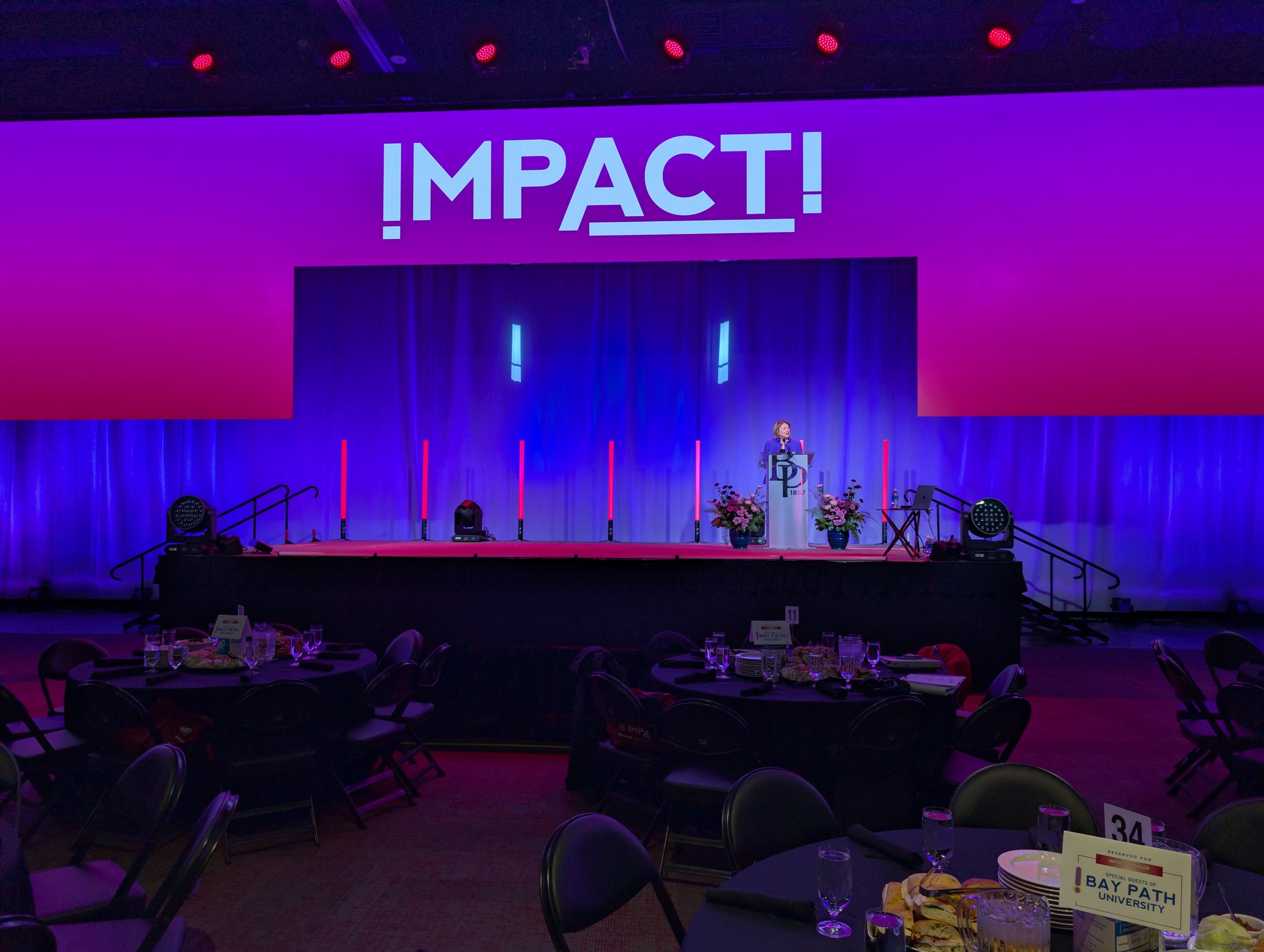

Photo Highlights
Click on the images below to view larger.
Client Praise
One of the best parts about my job with Bay Path University Women’s Leadership Conference is working with incredible partners to bring the day to life. There is no one, and I mean no one, better than Michael W. Zaskey and Zasco Productions LLC. The entire team is top-notch professional, inspiring, and FUN to work with, always pushing me to think bigger and better as we create the day of environment.
…It’s been a career-changing relationship for me, redefining what I’m capable of as every year I try new things with an incredible supportive Zasco “you’ve got this” team behind me and beside me. I’m beyond grateful for what they make possible every year. Cheers to an incredible crew!
Melissa Welch
Senior Director of Creative Marketing Services
Co-Chair, Women's Leadership Conference
Bay Path University

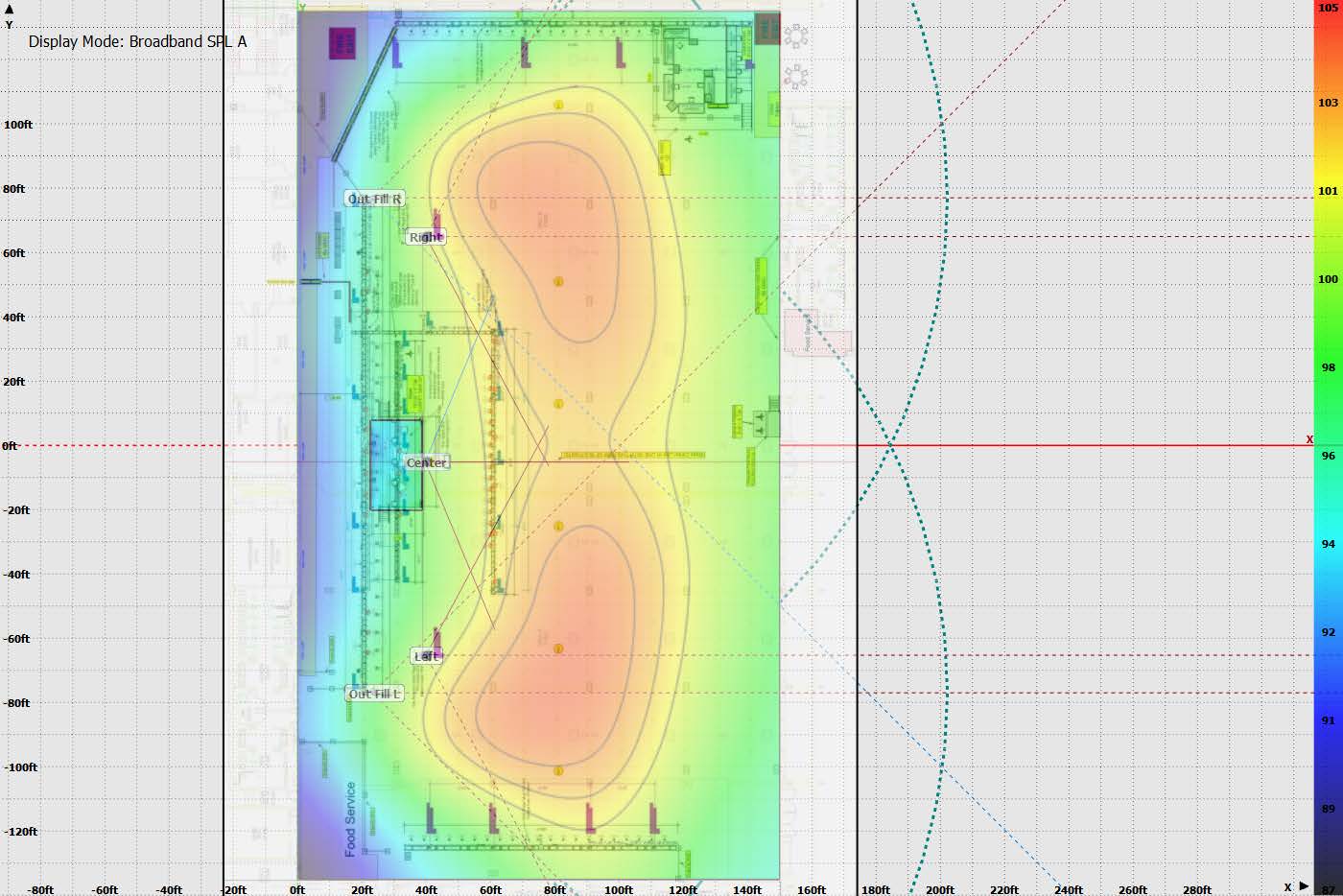

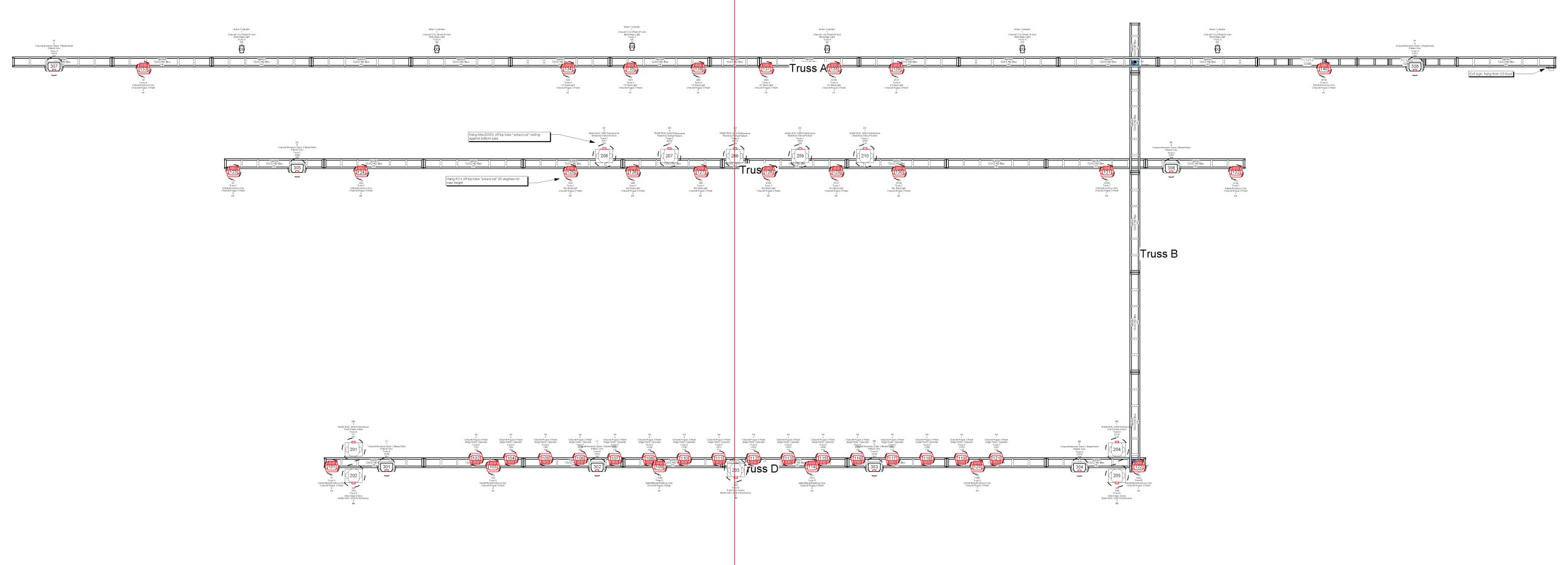

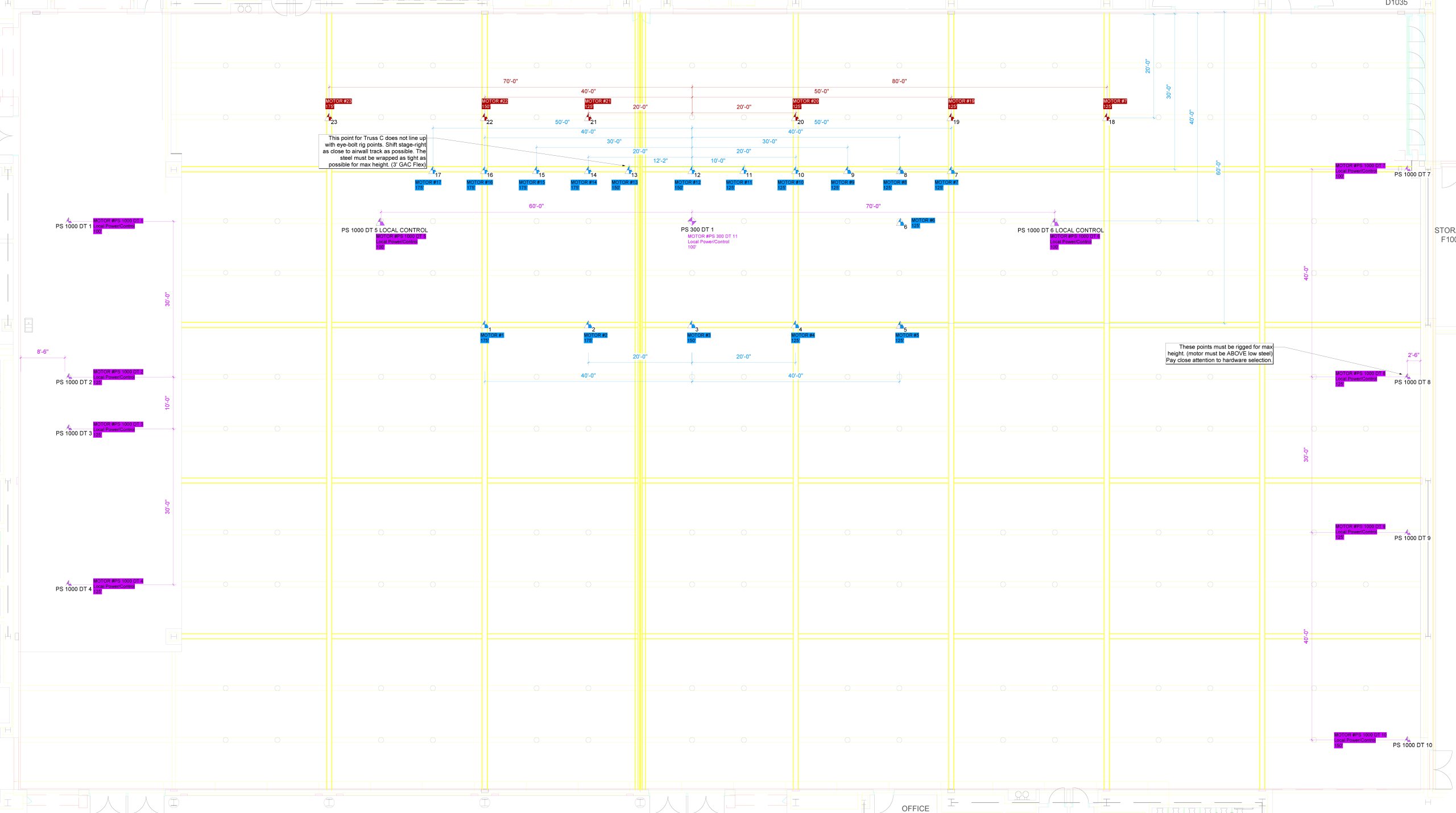

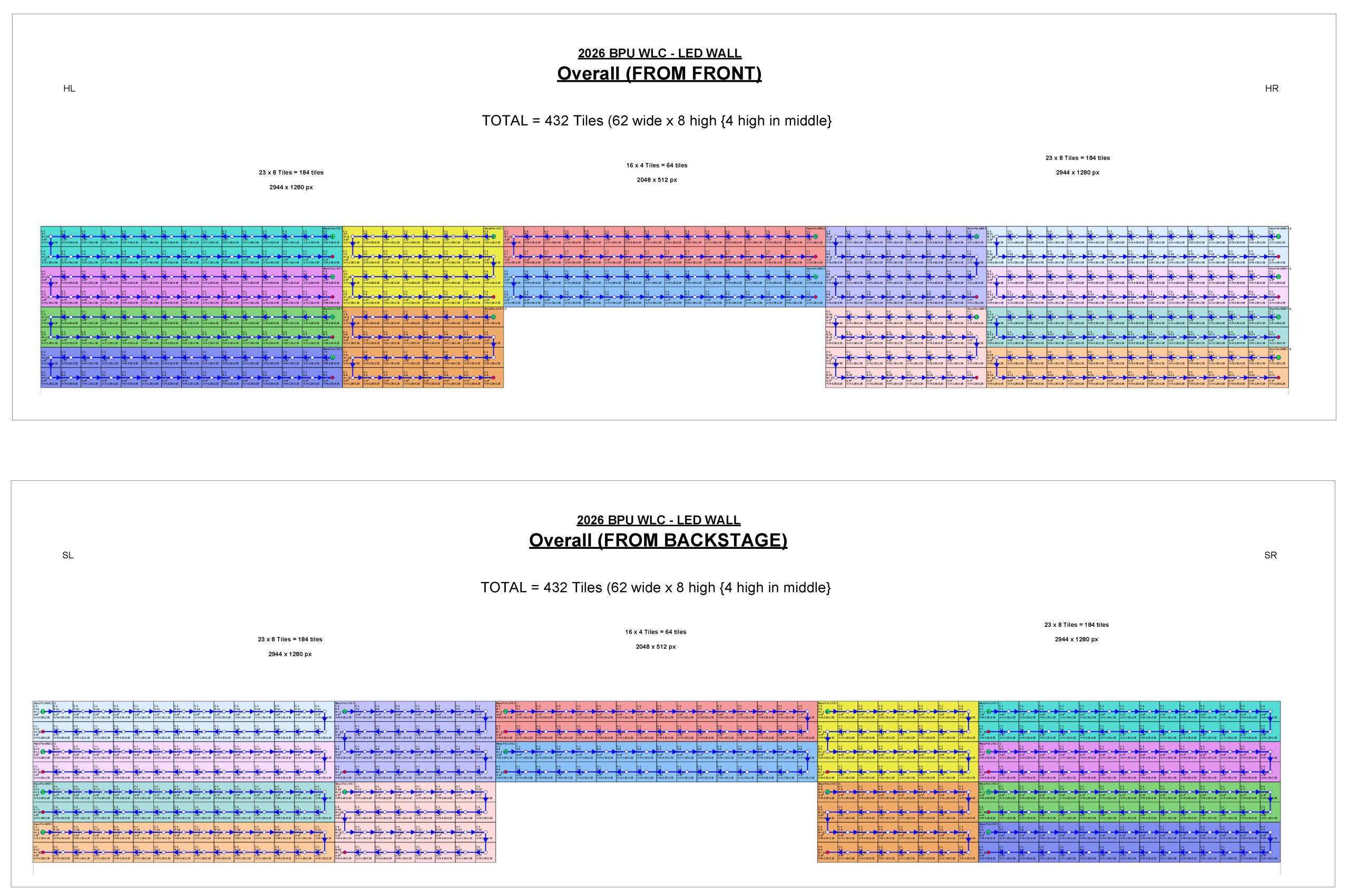

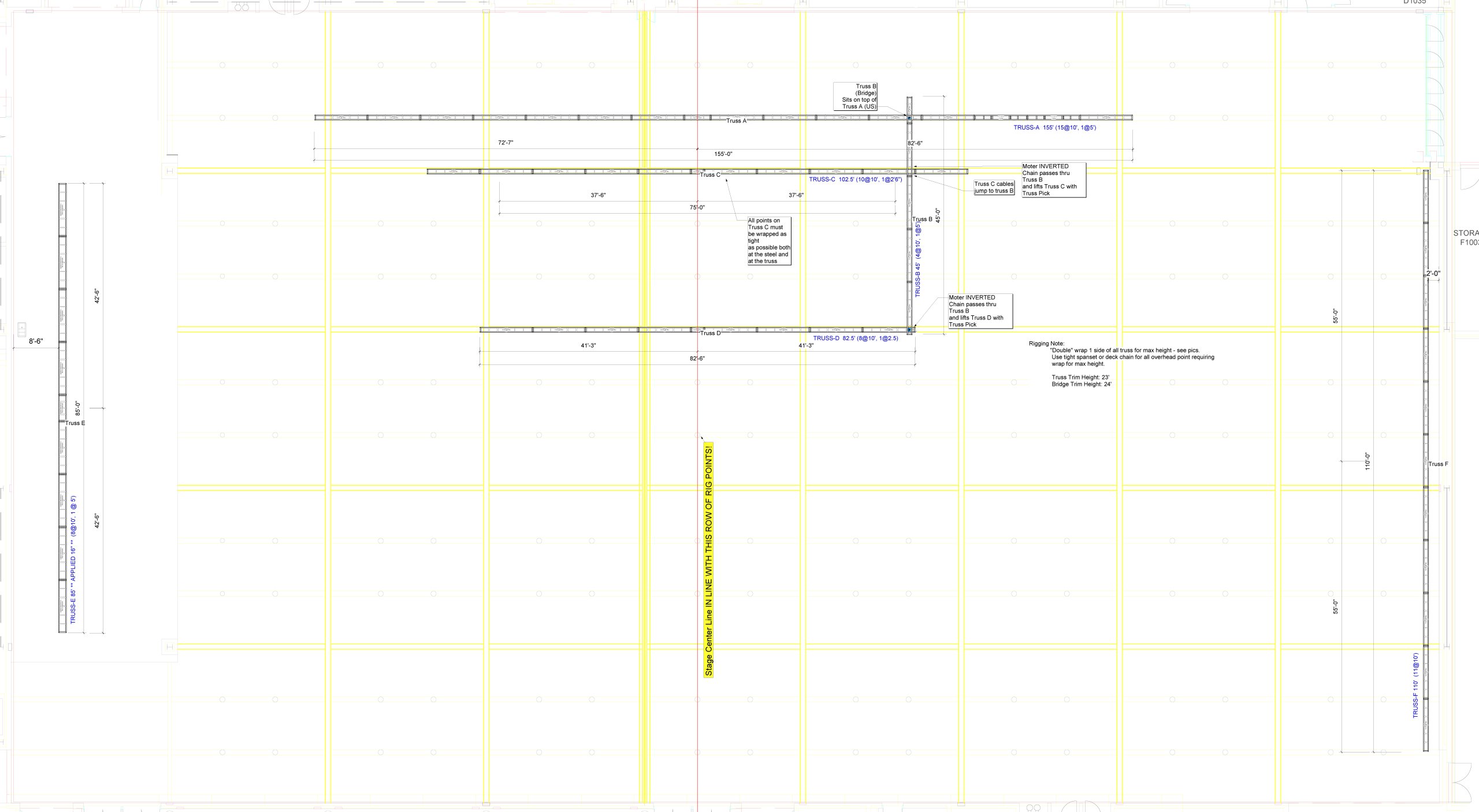

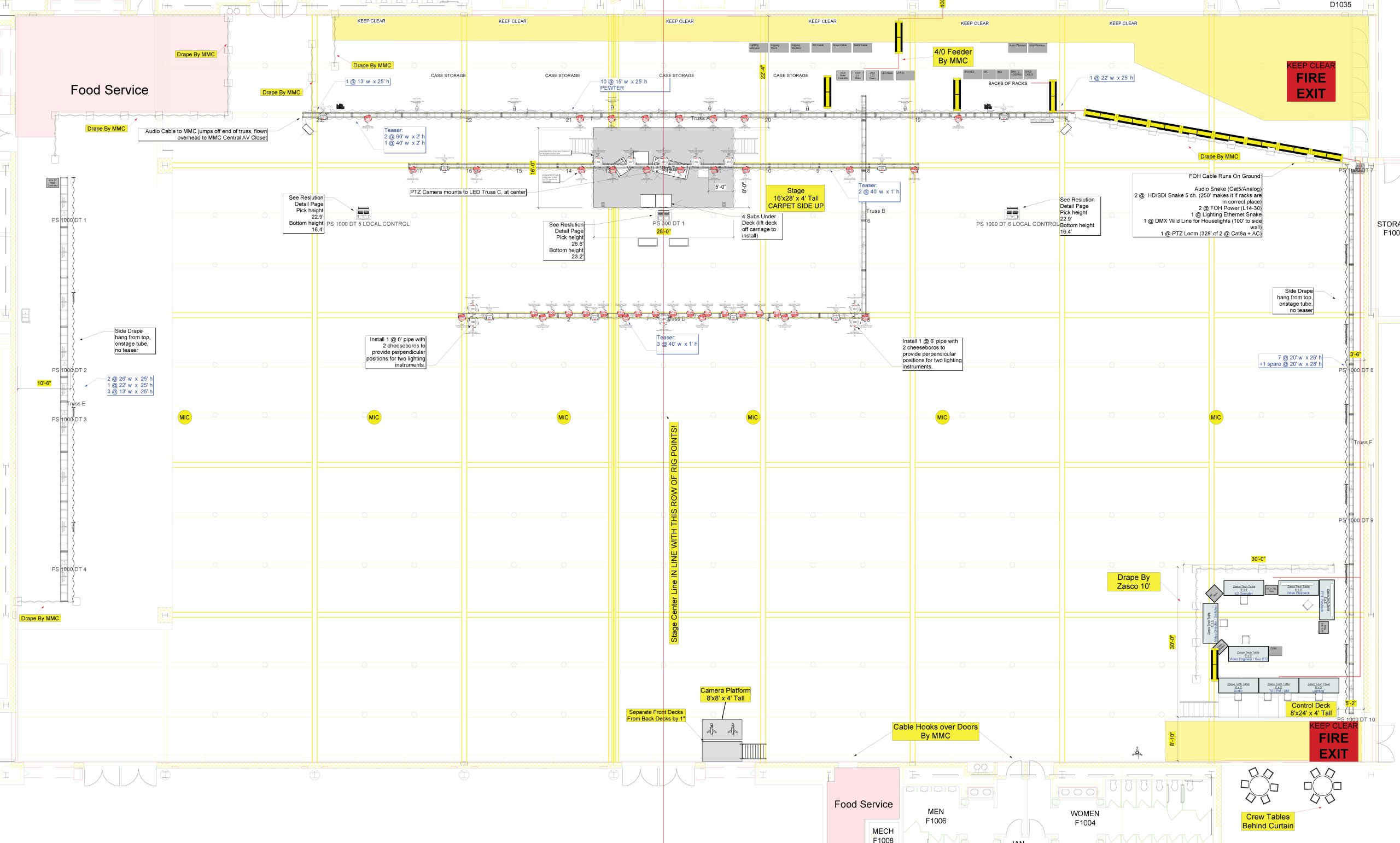

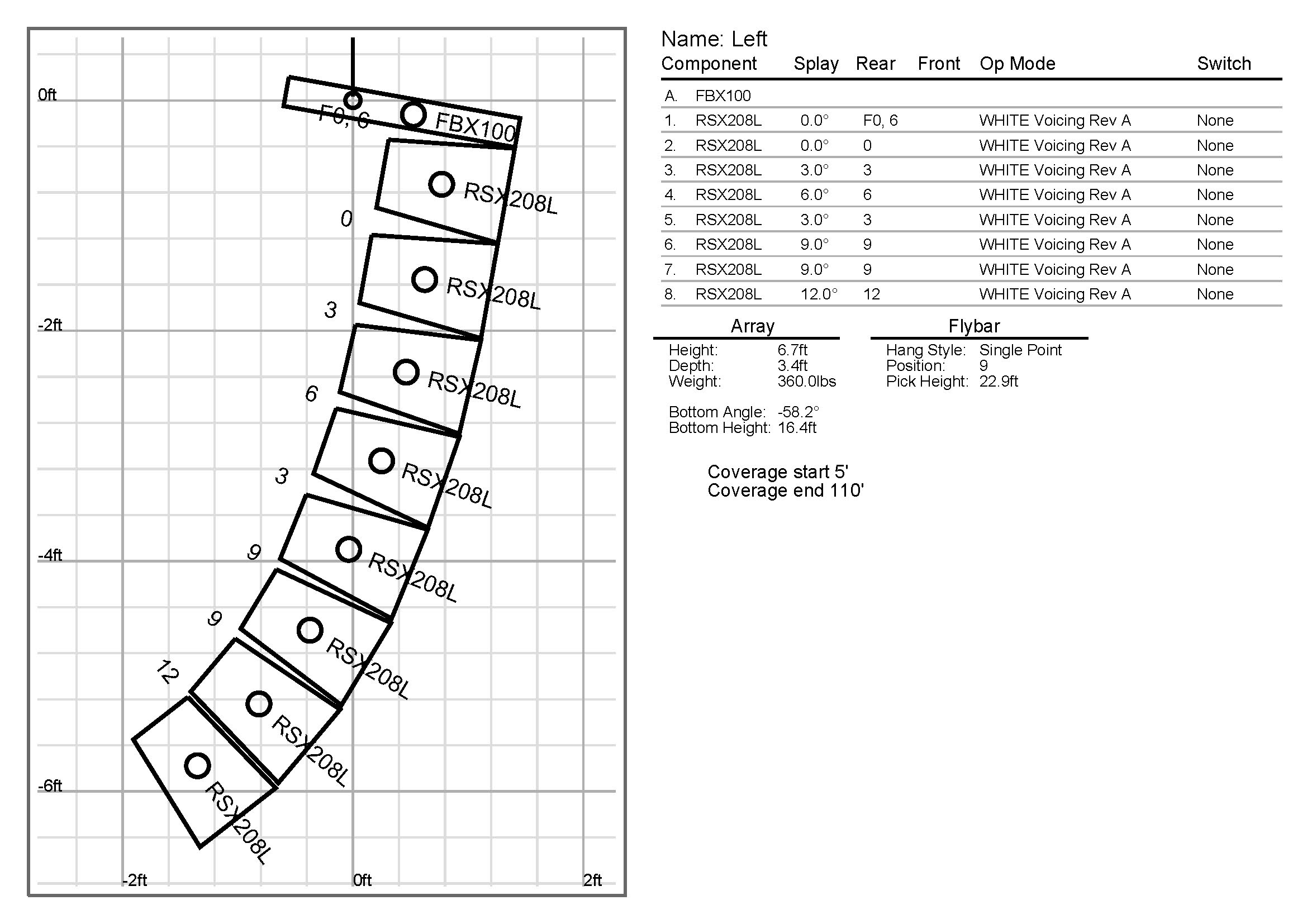

Pre-Production CAD Drawings and Renderings

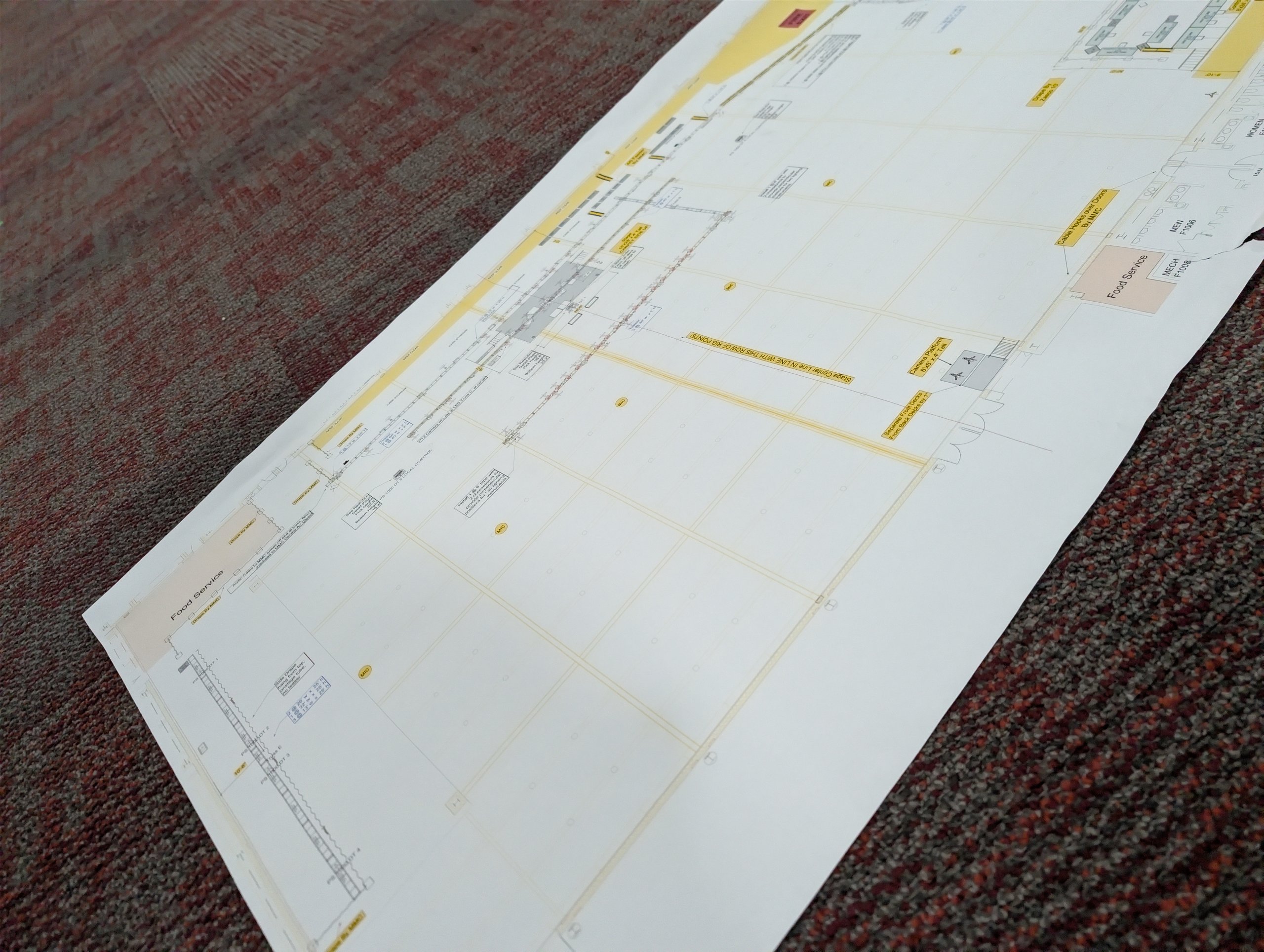

During the pre-production planning process, we developed detailed CAD drawings. These documents provide our team and other stakeholders a detailed package which served as the basis for event planning, technical coordination, and ultimately the the load-in and setup of the event on site.
Click on the images below to view larger.
Technical / Equipment Highlights

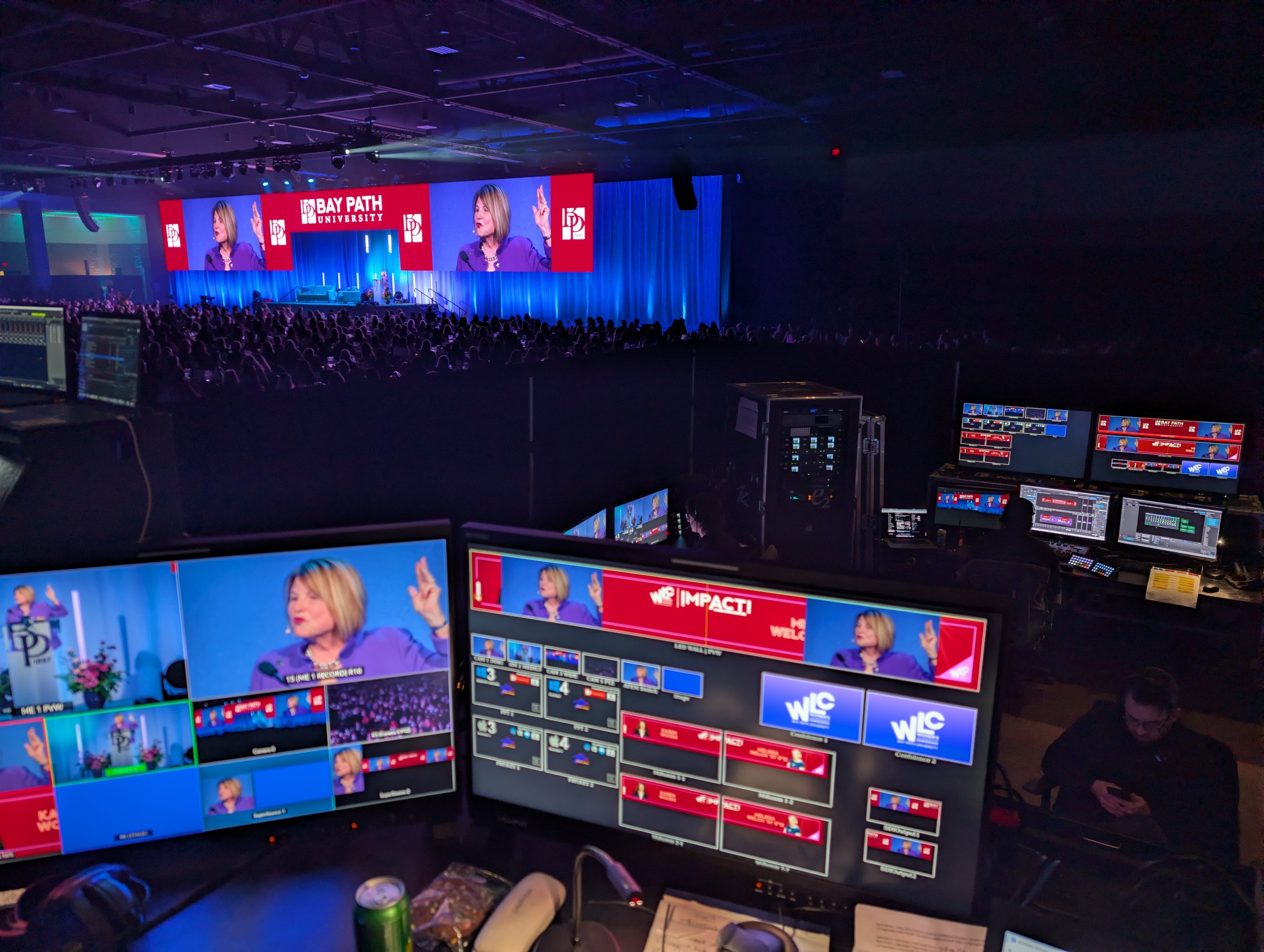

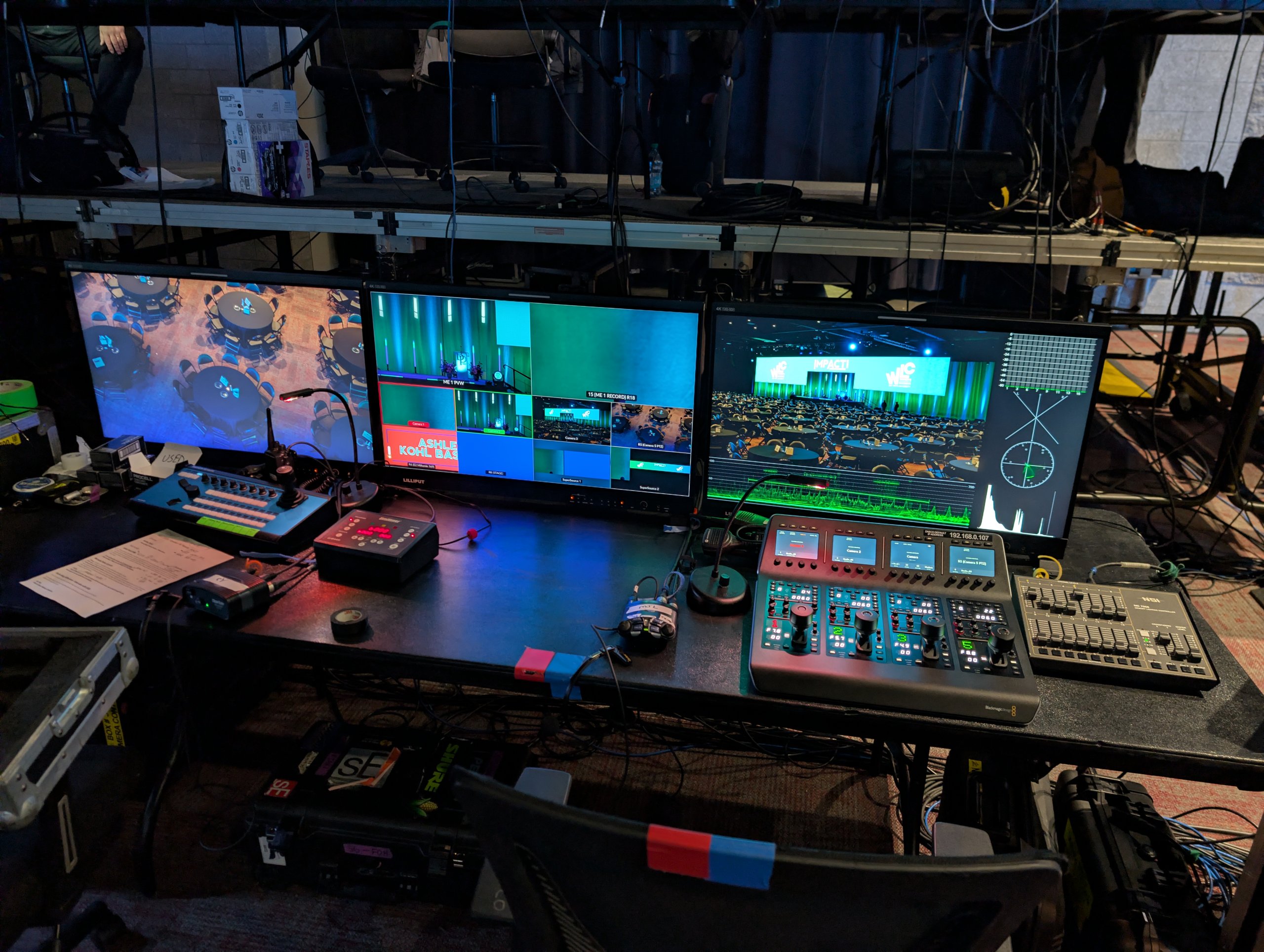

- Video:

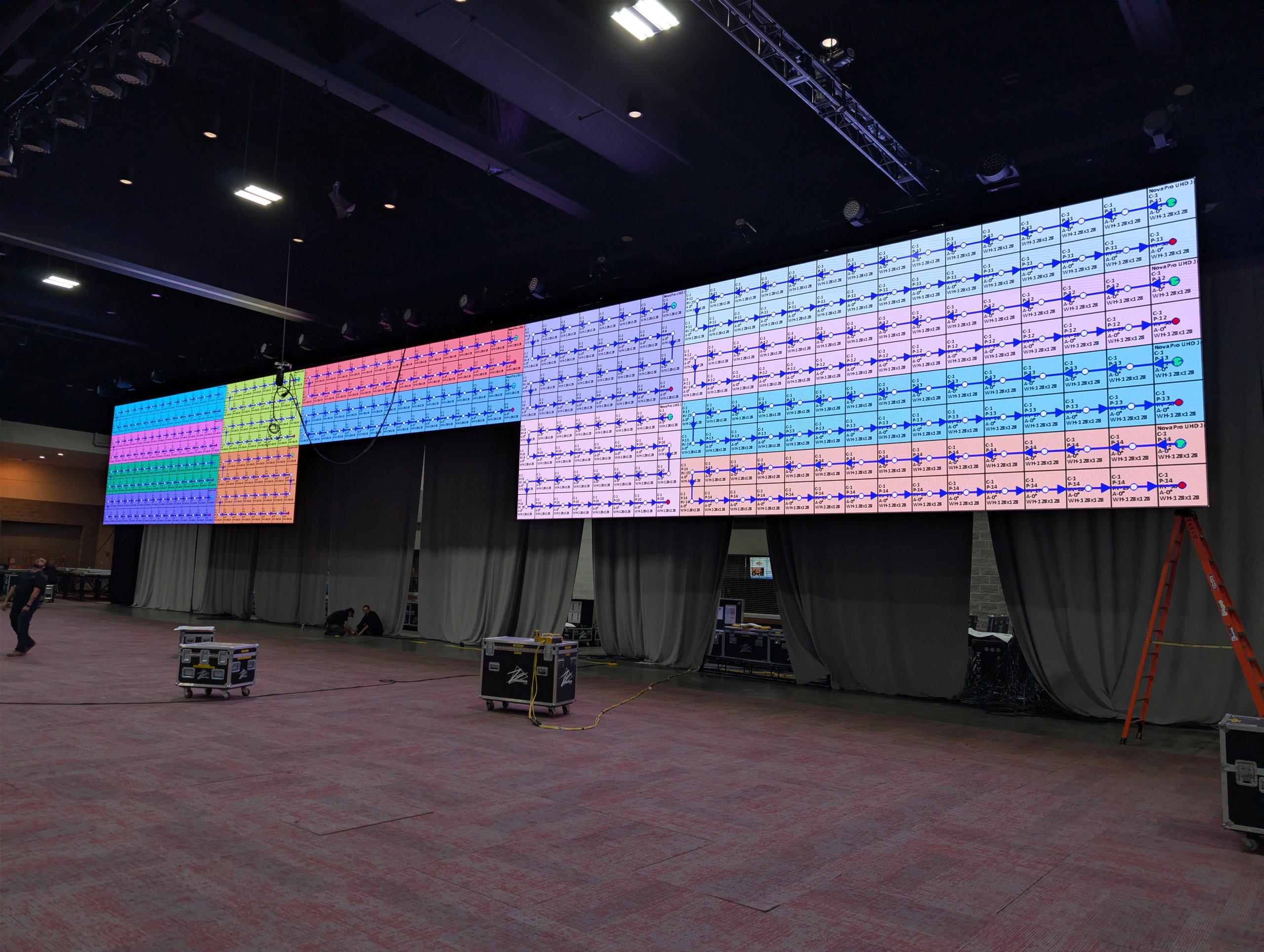

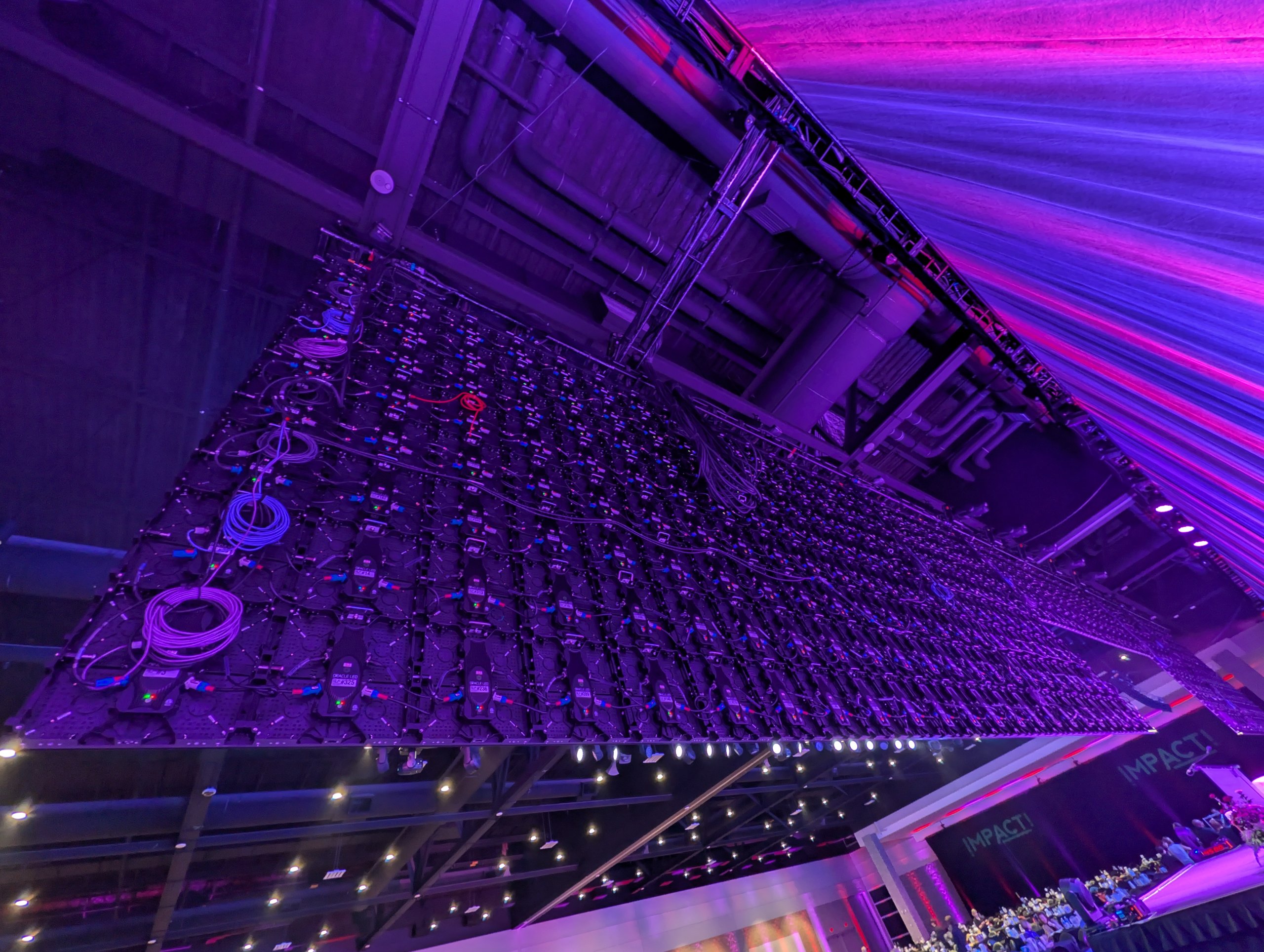

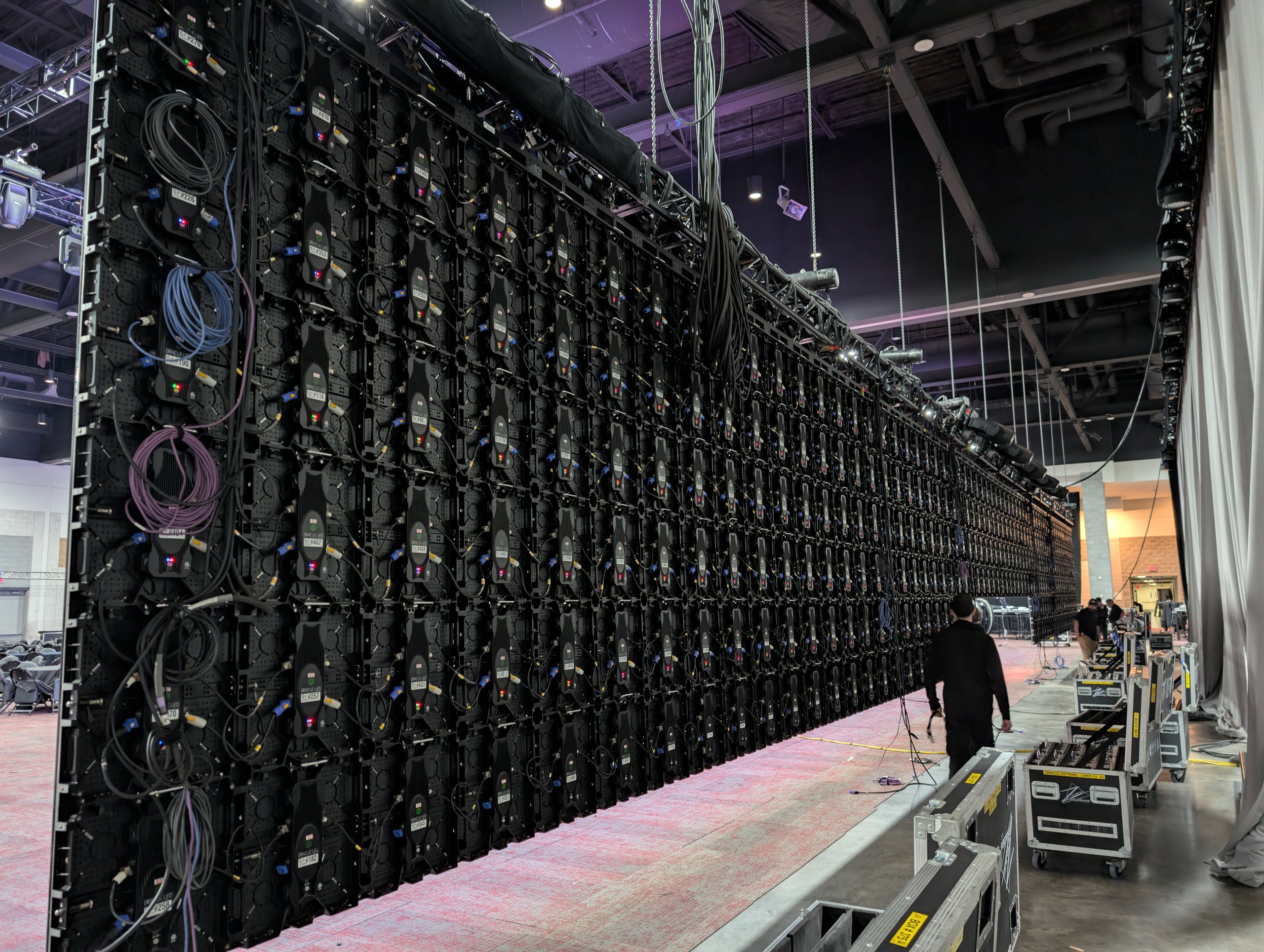

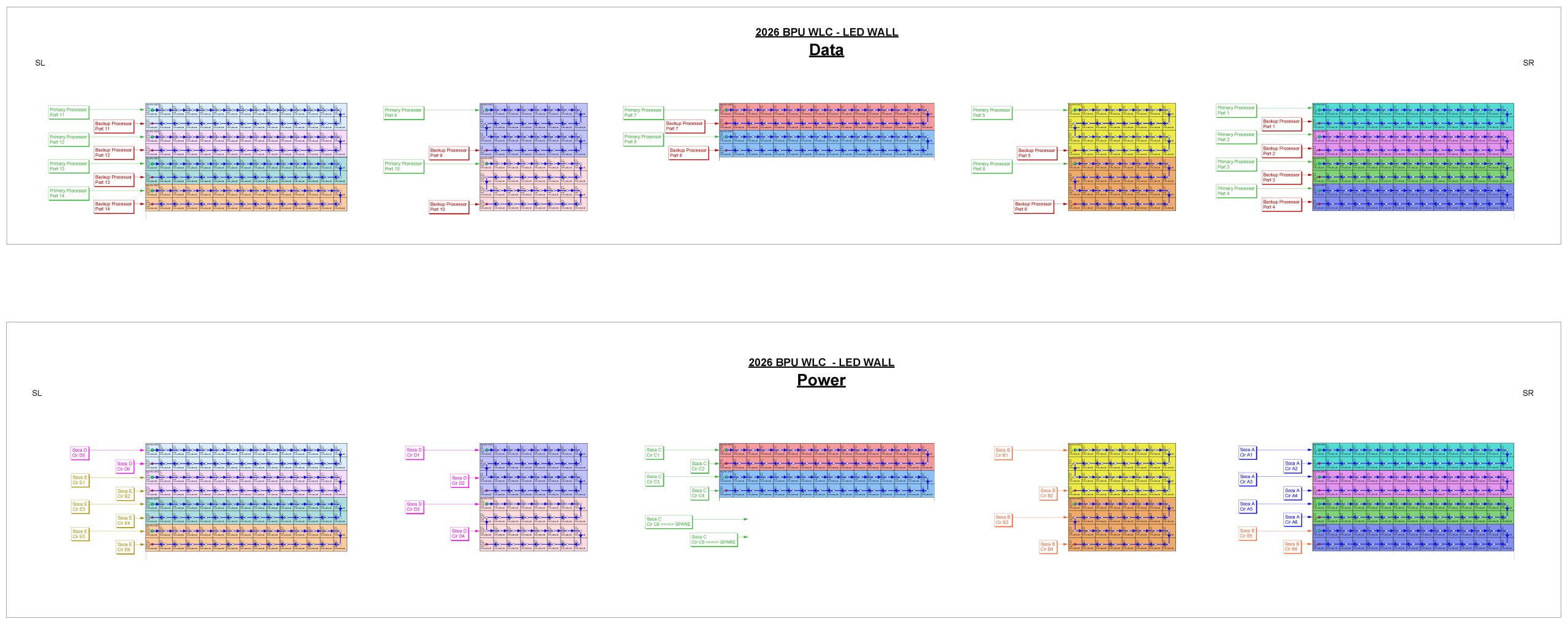

- 13′ high x 101′ wide Oracle LED Systems Links 3.9mm indoor LED video wall (432 tiles)
- 2 Novastar NovaPro UHD Jr. LED Wall processors

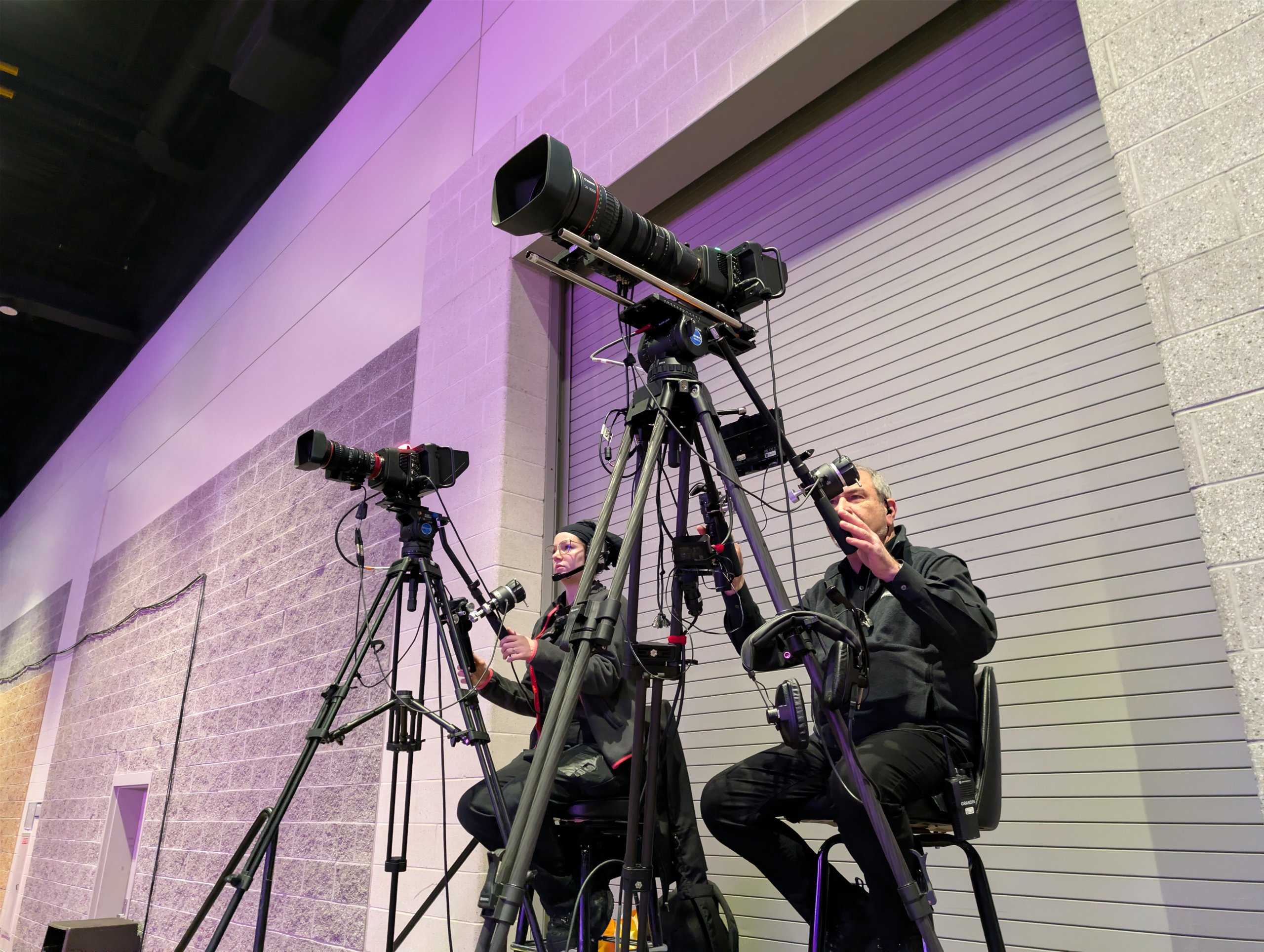

- 3 Blackmagic Studio Camera 6K Pro Cameras with full studio configuration, integrated intercom, rear lens controls, single cable system
- Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9 Ultra-Telephoto Zoom Lens with 1.5x extender, EF Mount (50~1000mm / 75~1500mm)
- Canon 2568C002 CN-E 70-200mm T4.4 Compact-Servo Cine Zoom Lens, EF Mount (70~200mm)
- Canon 1714C002 CN-E 18-80mm T4.4 Compact-Servo Cine Zoom Lens, EF Mount (18~80mm)
- 1 Blackmagic Studio Camera 4K Pro integrated with a Datavideo PTR-15 4K Robotic Pan Tilt Head for a custom PTZ camera solution
- OM SYSTEM M.Zuiko Digital ED 12-200mm f/3.5-6.3 Lens with Tilta Nucleus-M Motor for zoom control
- 4 Blackmagic Design Studio Converters

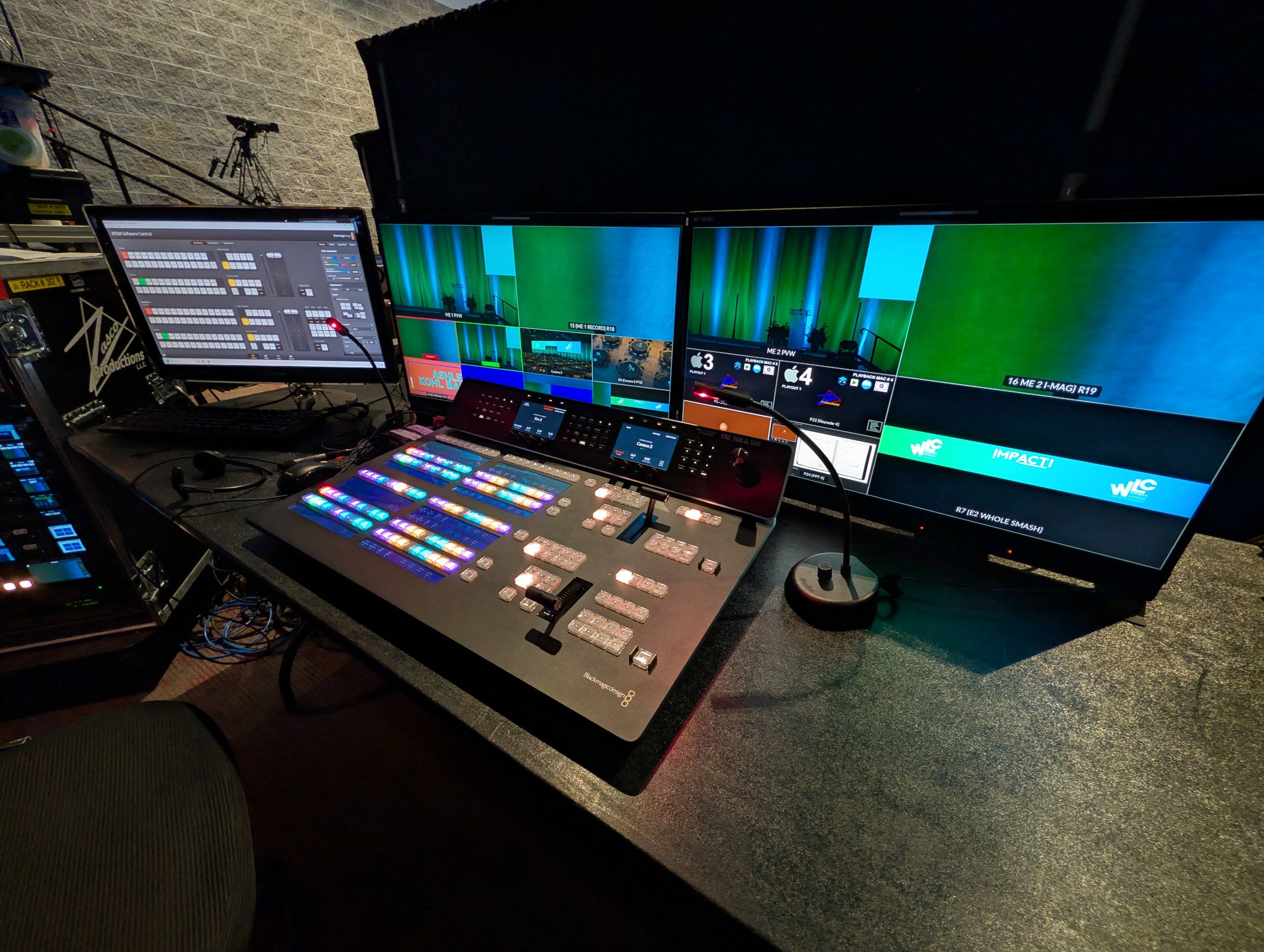

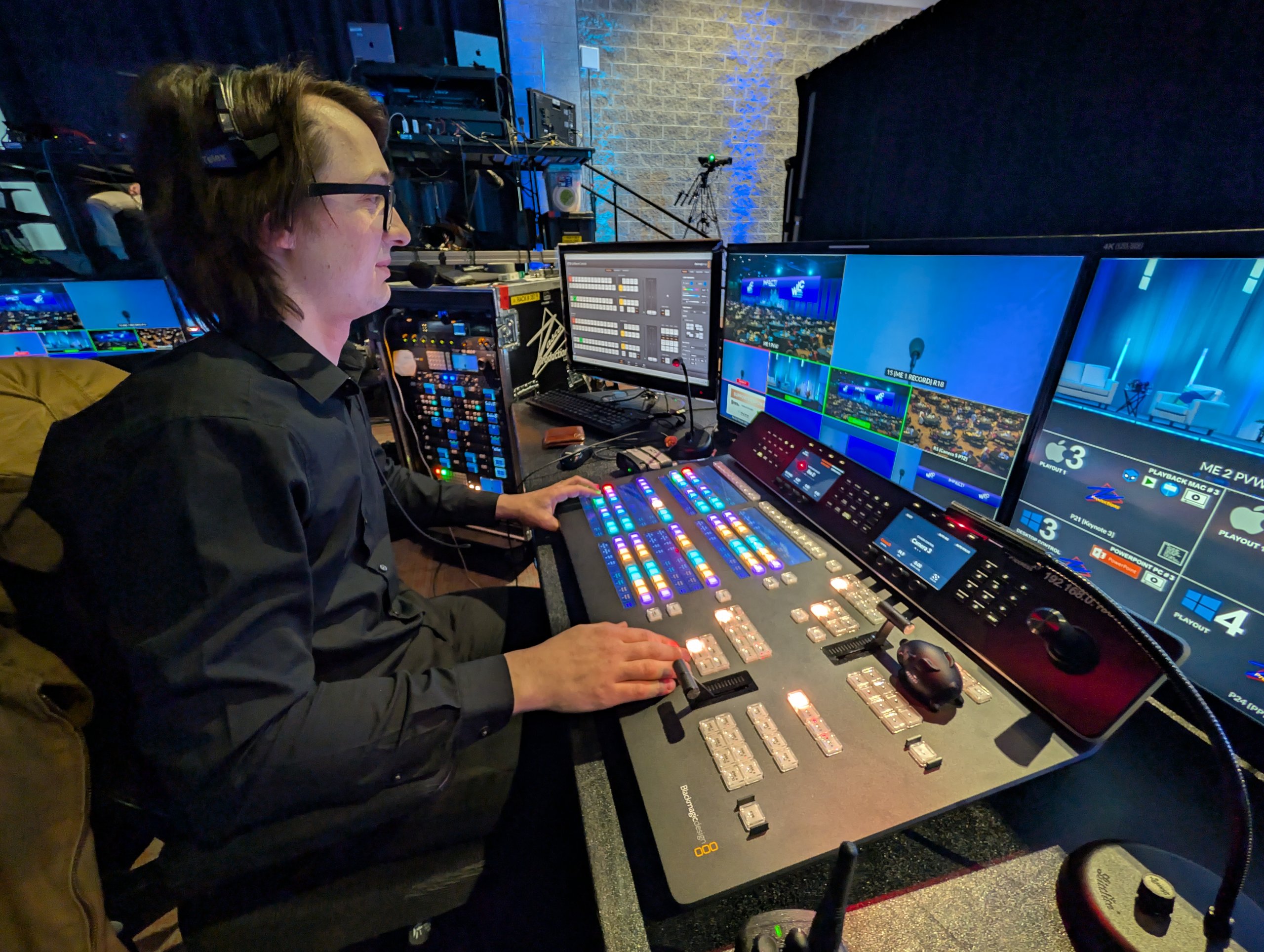

- Blackmagic Design ATEM 4 M/E Constellation HD production switcher
- Blackmagic Design 2 M/E advanced control panel
- Blackmagic Design ATEM Camera Control Panel
- 4 Blackmagic Design HyperDeck Studio HD Plus Recorders
- Blackmagic Design Videohub 40×40 12G Zero-Latency Video Router
- Video monitoring, processing, control, and distribution
- Graphics / Playback:
- 4 Apple MacPro Computers with Millumin and Keynote Software
- 2 PC Computers with PowerPoint Software
- Screen Management:
- Barco E2 Full Sized 4K 60p Generation 2 Tri-combo Event Master Processor

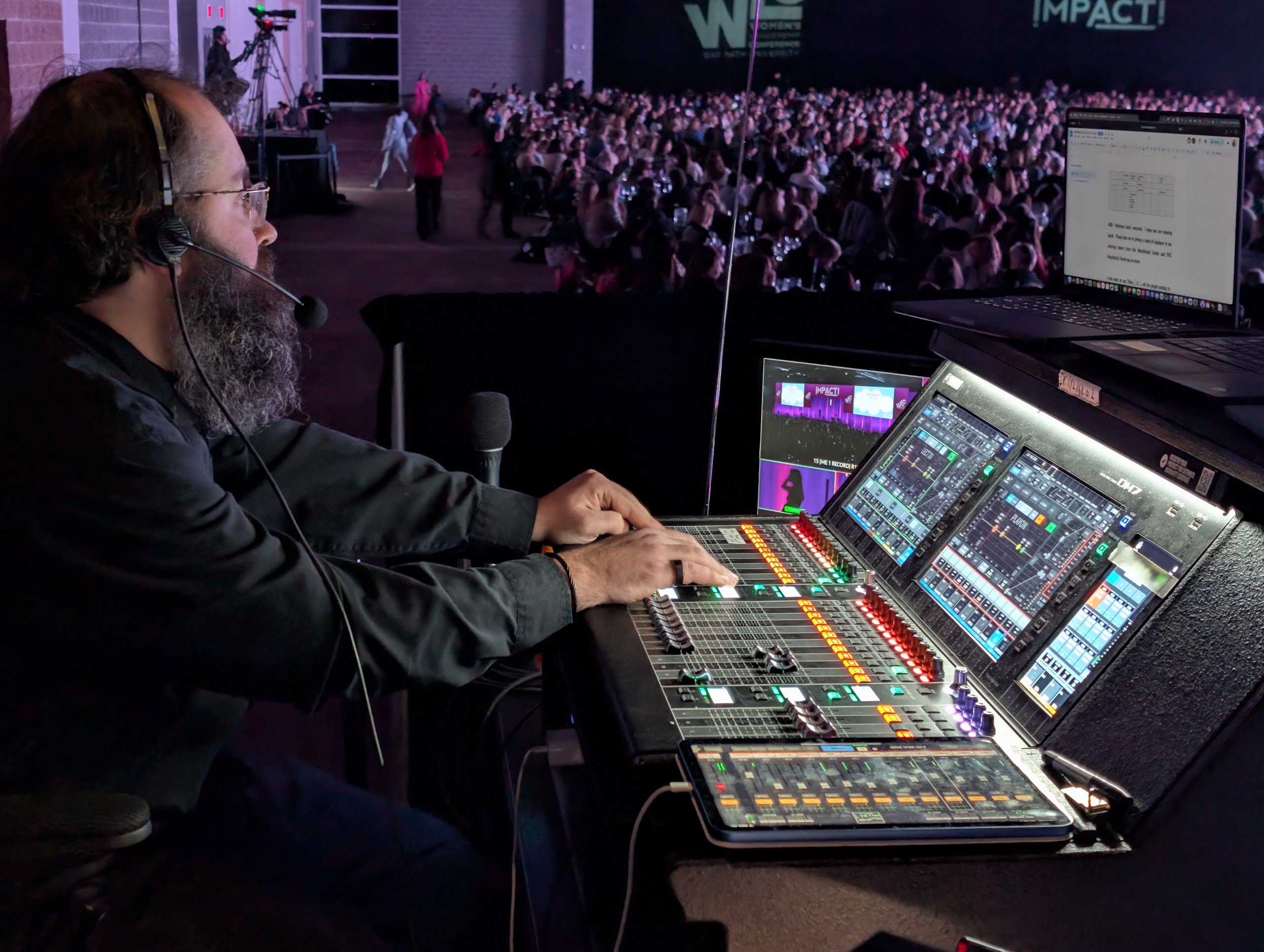

- Audio:
- 24 EAW RSX208L Radius series line array loudspeakers
- 4 EAW RSX18 Radius series subwoofer loudspeakers
- 2 EAW RSX129 Radius series point-source loudspeakers
- 2 Mackie SRM-150 monitor loudspeakers
- Yamaha DM7 digital audio mixing console
- Yamaha Rio3224-D2 I/O Rack
- Alpha Labs De-Feedback processor
- Earthworks FM500 Lectern microphone
- DPA Lavalier and headset microphones
- 10 Shure ULX-D series wireless microphone systems
- QLab audio recording / playback system
- Audio monitoring, processing, control, and distribution

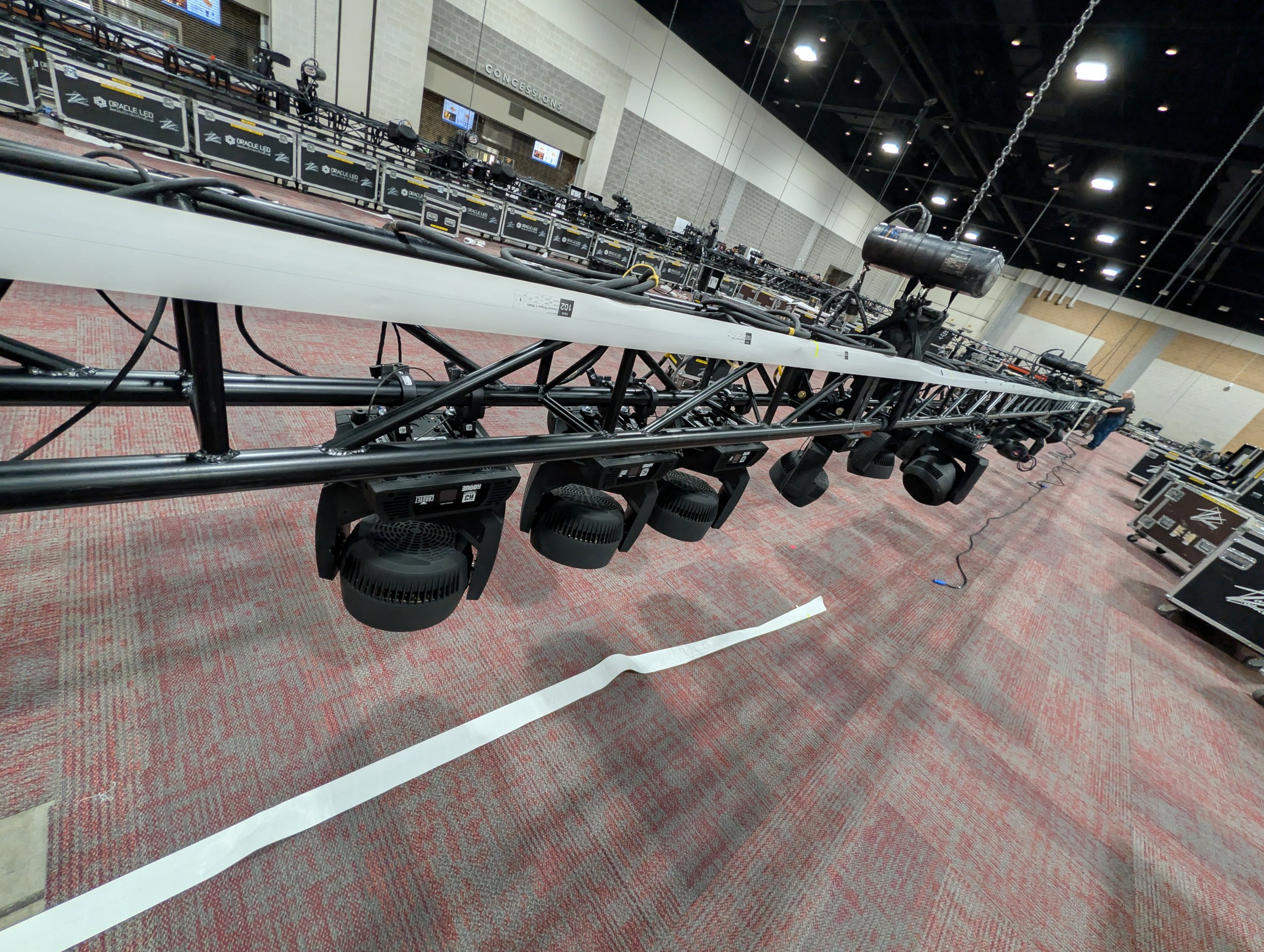

- Lighting:
- 40 Chauvet Professional Rogue R3 Wash RGBW LED Moving Yoke Fixture
- 12 Chauvet Professional Maverick Storm 3 BeamWash RGBW LED Moving Yoke Fixture
- 10 Martin MAC 2000 Performance II 1200 Watt HMI CMY Moving Head Spotlight
- 24 Chauvet Professional – COLORado 3 Solo Indoor / Outdoor RGBW Zooming LED Wash Fixture
- 6 Chauvet Professional COLORado M Solo Indoor / Outdoor RGBW Zooming LED Wash Fixture
- 23 Philips Color Kinetics Color Blaze 72 72-inch High-Performance Linear RGB LED Cyc Wash Fixture
- 72 Chauvet Professional WELL Fit Indoor / Outdoor Wireless / Battery RGBA LED Uplight Fixture
- 6 Chauvet Professional WELL STX 180 Indoor / Outdoor Wireless / Battery / AC Adapter RGBW LED Tube, 180-degree
- 7 Chauvet Professional WELL STX 360 – Indoor / Outdoor Wireless / Battery / AC Adapter RGBW LED Tube, 360-degrees
- ETC/High End Systems Road Hog 4-21 lighting control console
- DMX / Data Distribution
- Rigging:

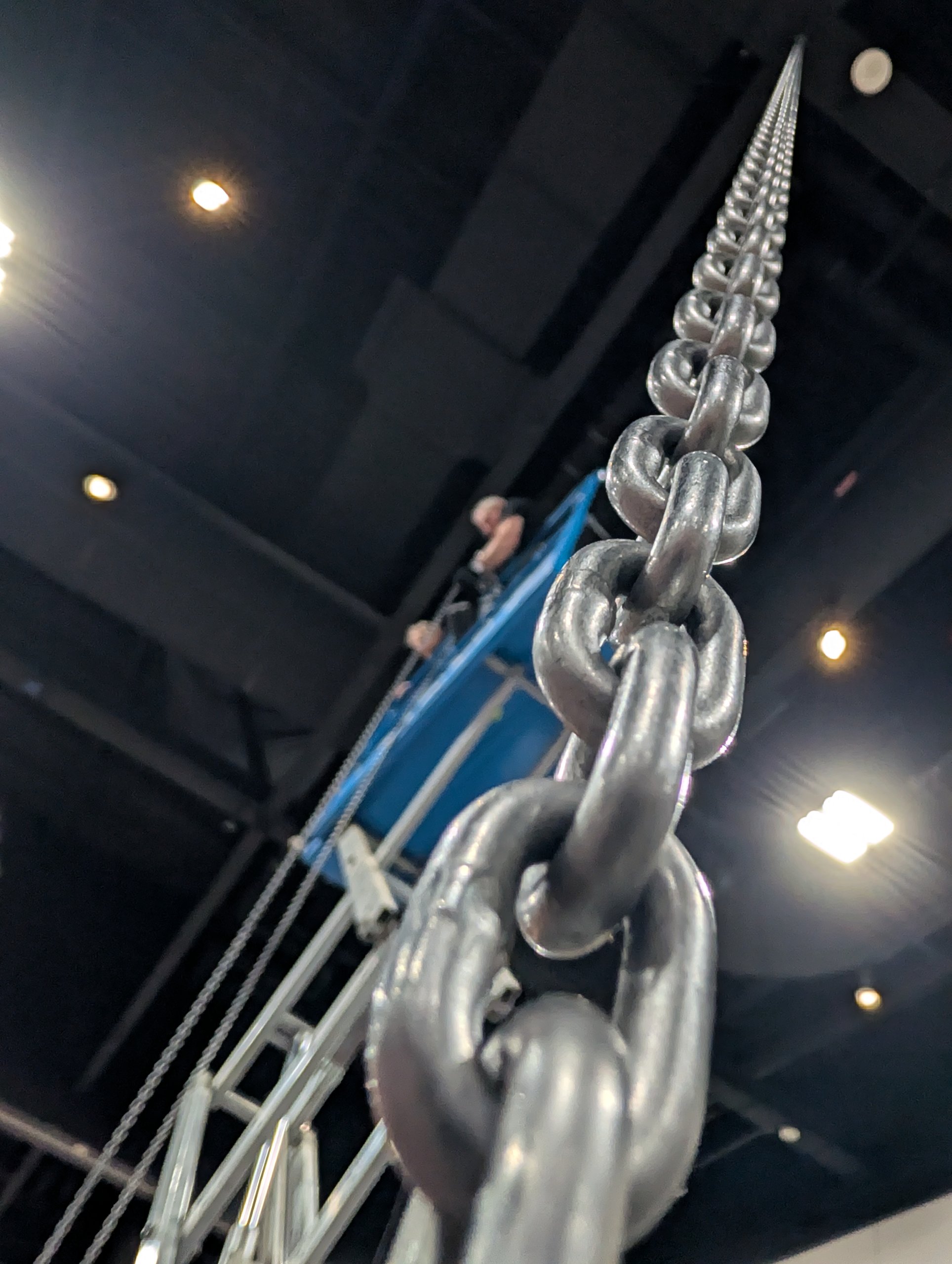

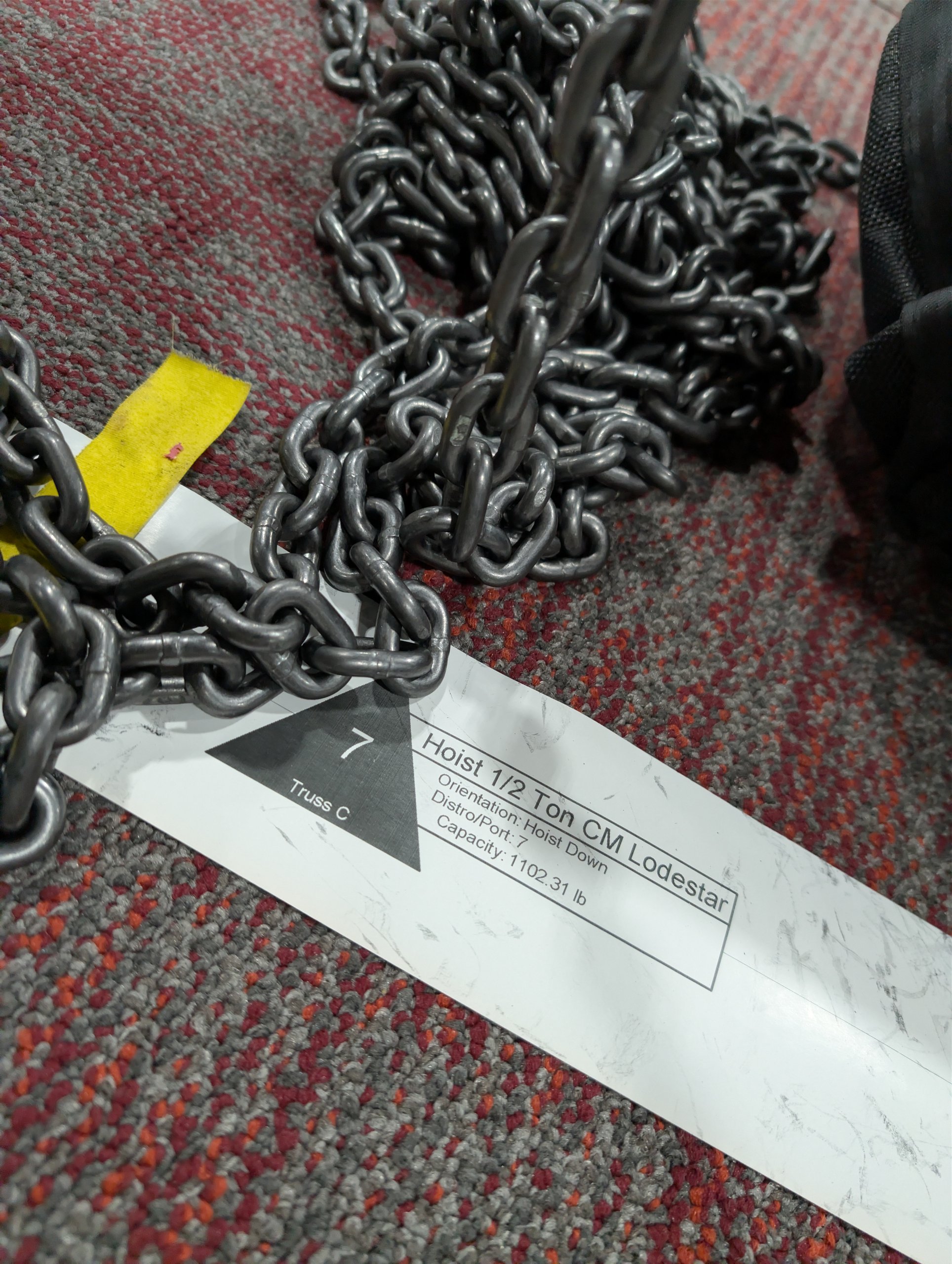

- 17 CM Lodestar 1/2-Ton F-Series 1/2-Ton Chain Hoists
- 6 Stagemaker 1/2-Ton SR5-Series 1/2-Ton Chain Hoist
- 10 CM Prostar 1000 1000 LB Chain Hoists
- 1 CM Prostar 300 300 LB Chain Hoist
- Motion Labs P14 and DT Motor Control Systems

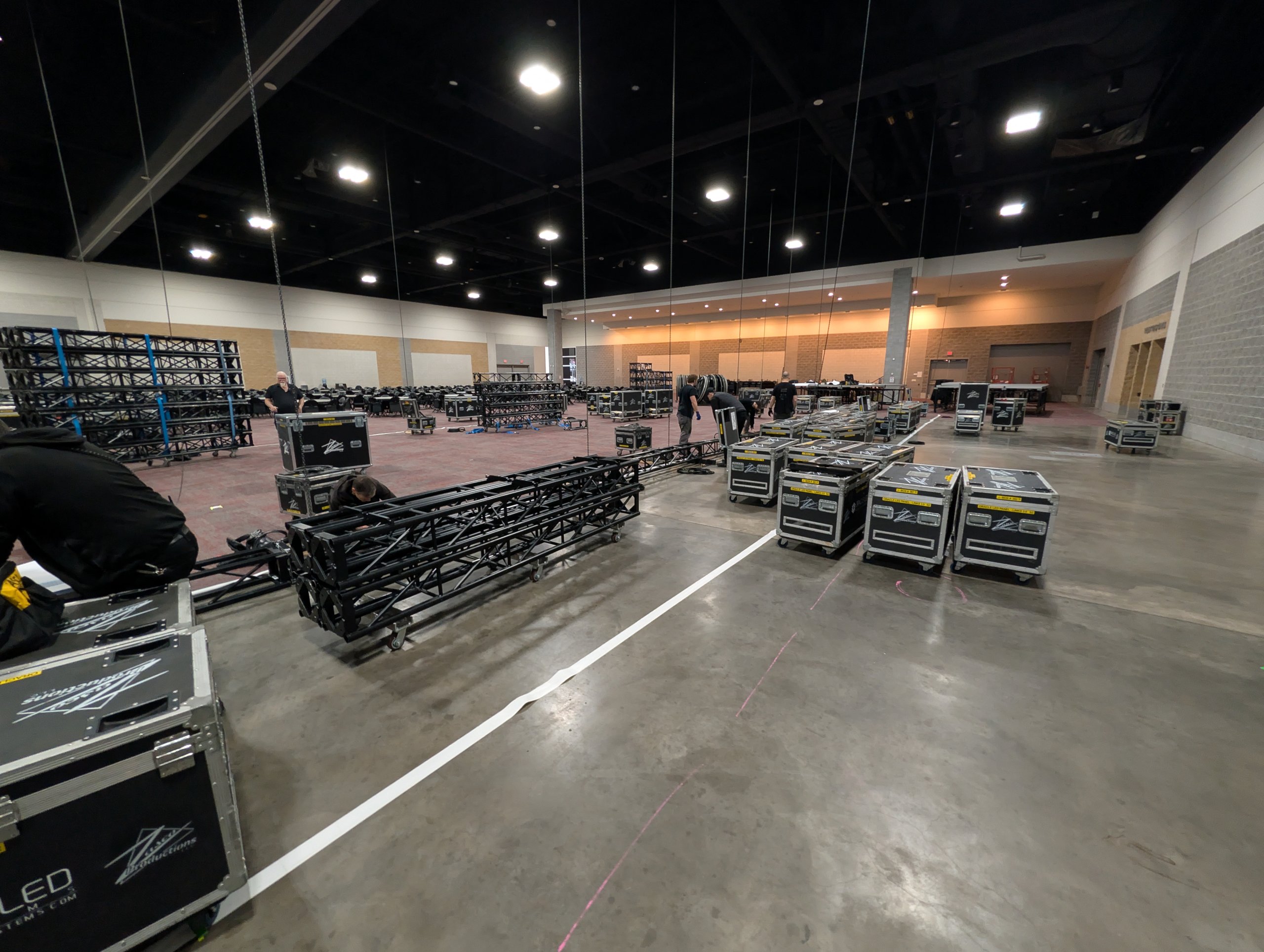

- 495′ Universal 12″ x 12″ GP Box Truss
- 85′ Applied 16″ x 16″ HD Box Truss
- Power Distribution:
- Motion Labs Production Power Distribution Systems
- Presenter Support:
- Dsan PerfectCue System
- Dsan Limitimer System
- 2 Samsung QE55T 55″ 4K UHD Commercial LCD Display confidence monitors
- Scenic / Softgoods:
- 10 Rose Brand 22 oz Pewter Encore IFR Velour Drape 15′ W x 25′ H
- 13 Rose Brand 22 oz Black Encore IFR Velour Drape 20′ W x 28′ H
- Control Area Pipe and Drape package

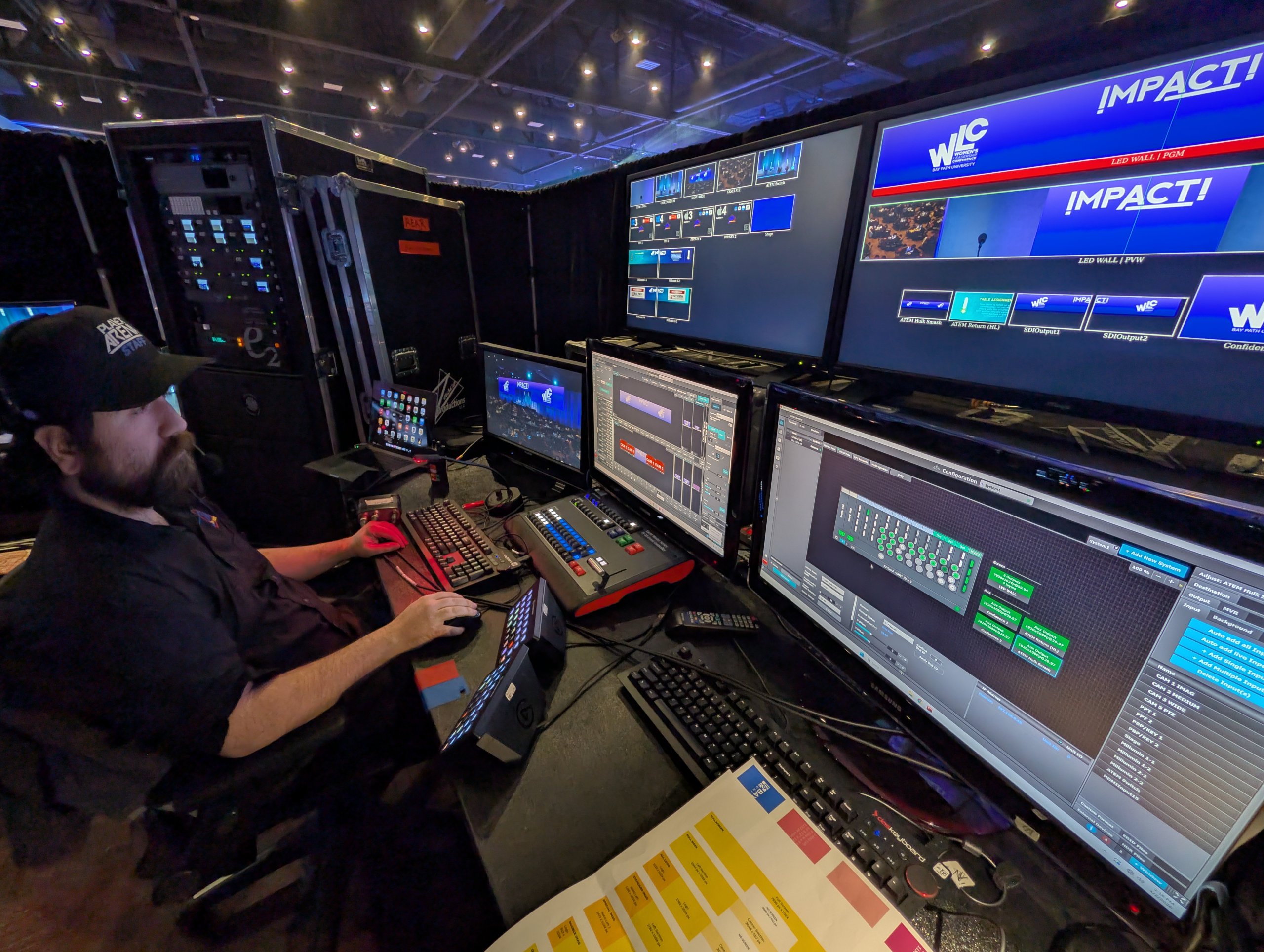

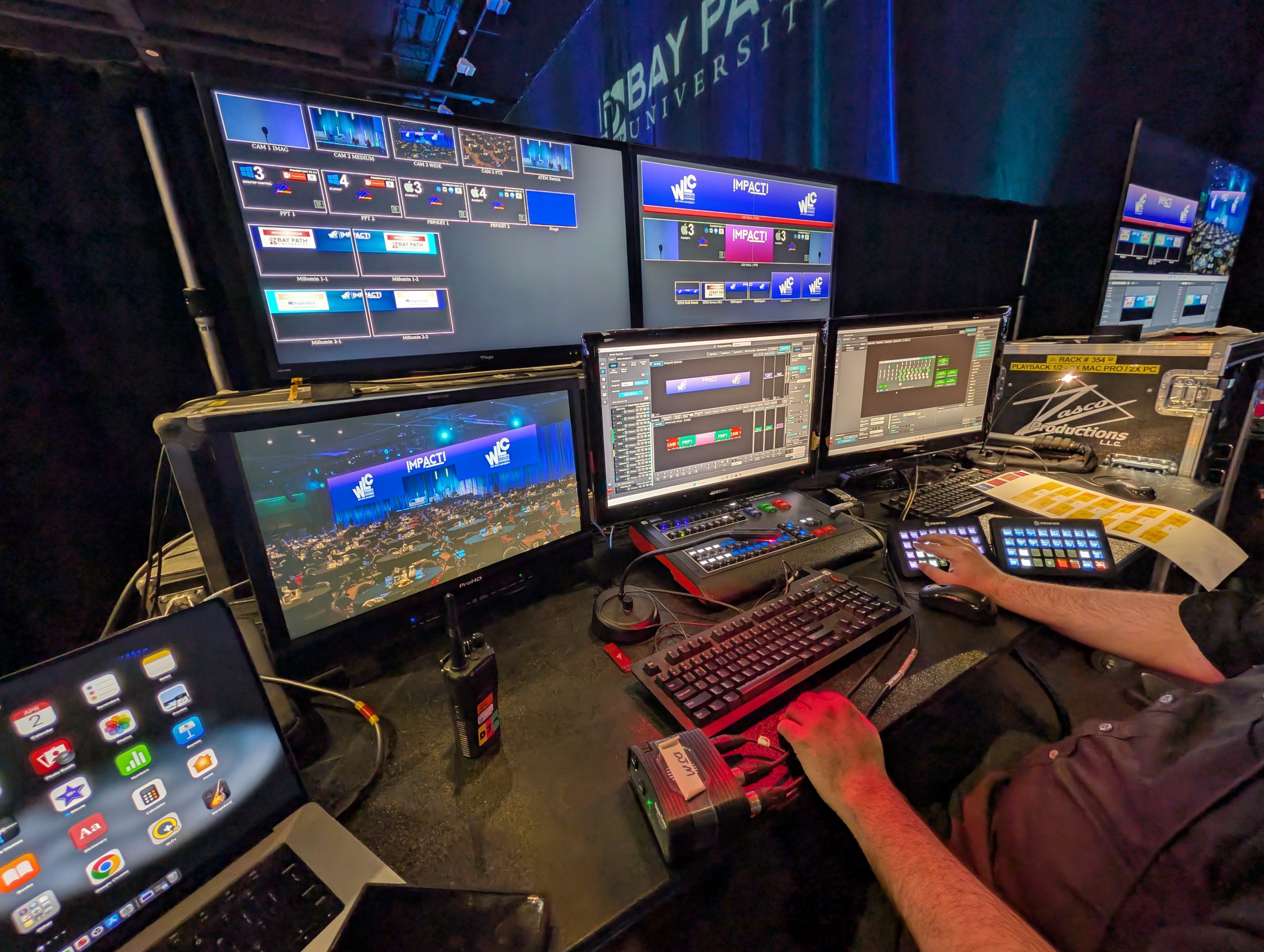

Technical Photo Highlights
Click on the images below to view larger.
Video Clips

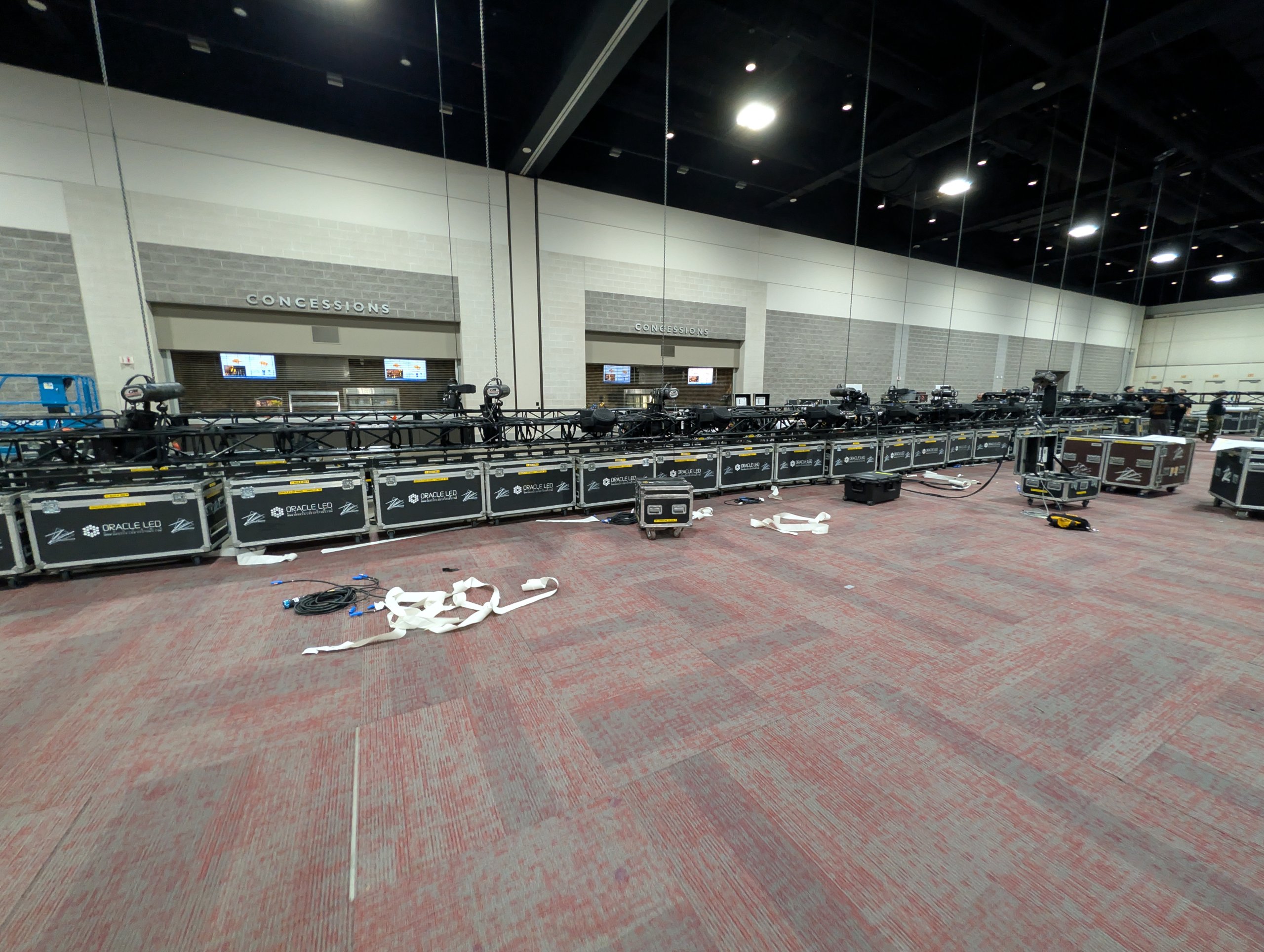

View a time-lapse sequence of our setup and rehearsals:
View a highlight of the event and experience the production:
